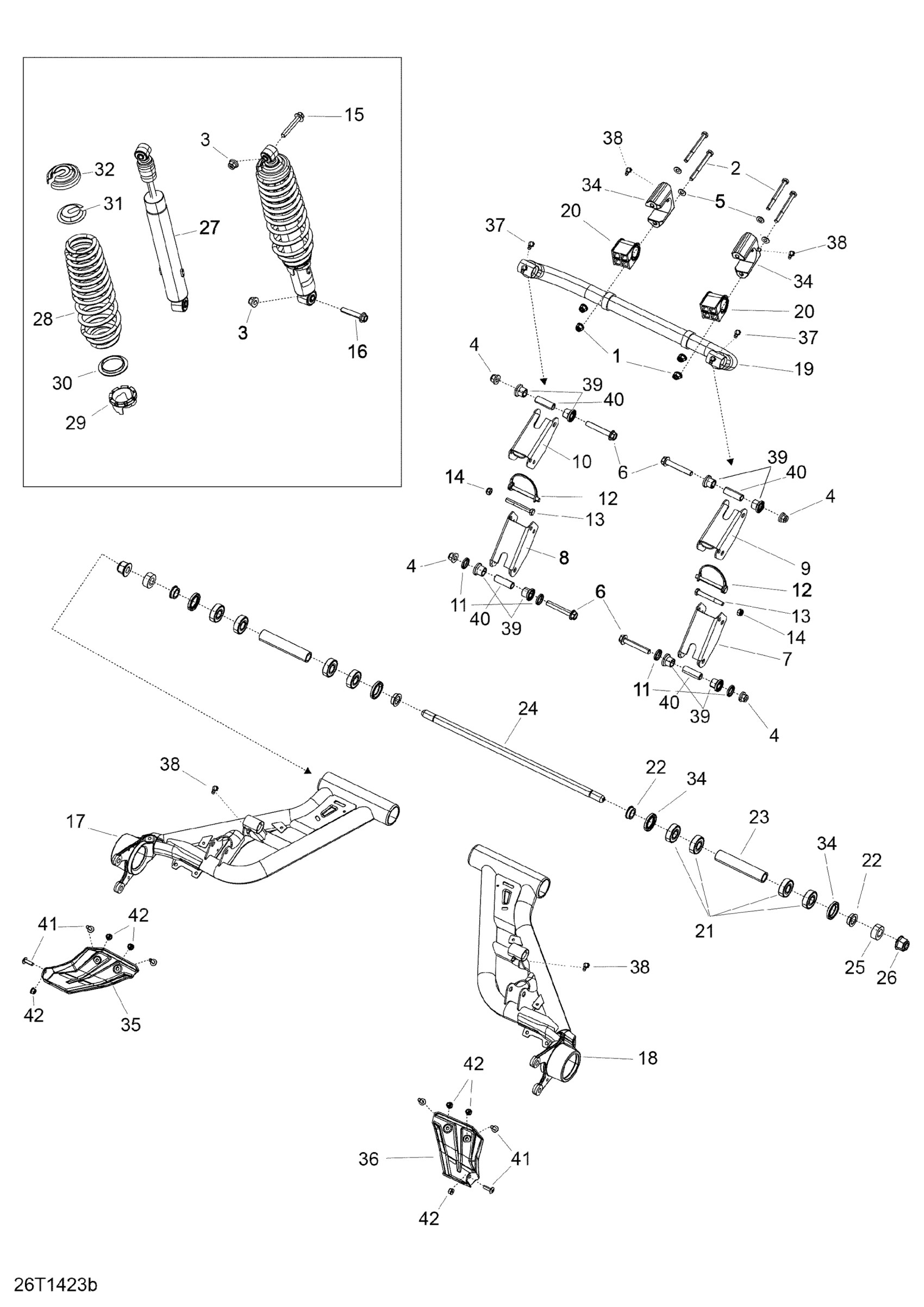

Can-Am Outlander 6x6 (International & T3), 2014 08- Rear Suspension _26T1423b Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M8

233281434

$2.11

2

Hex. Screw M8 X 85

250001035

$1.89

3

Hex. Flange Elastic Nut M10

233201436

$2.11

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Flat Washer M8

234081430

$2.11

6

Hex. Flange Screw M10 X 65

207606536

$4.44

7

RH Linkage Outer Part

706001765

$28.99

8

LH Linkage Outer Part

706001600

$28.99

9

RH Linkage Inner Part

706001766

$15.49

10

Linkage Inner Part

706001601

$15.49

11

Washer

505073634

$2.42

12

Pin Onto The Shaft

706001602

$15.80

13

Hex. Screw M8 x 65

207086544

$1.47

14

Hex. Elastic Stop Nut M8

232581414

$0.56

15

Hex. Flange Screw M10 X 6

207606046

$4.12

16

Hex. Flange Screw M10 X 55

207605546

$2.11

17

Black LH Swing Arm

706001860

$296.99

18

Black RH Swing Arm

706001861

$296.99

19

Swaybar

706000988

$126.99

20

Stabilizer Bar Bushing

706004640

$8.89

21

Ball Bearing

293350145

$13.75

22

Spacer

706001282

$12.99

23

Spacer

706002259

$28.99

24

Axial Pivot M16

706001664

$72.99

25

Flat Washer M17

250200112

$7.99

26

Hex. Flange Elastic Nut M16

233211466

$1.99

27

Rear Shock

706000958

$185.49

28

Black Spring

706000963

$103.99

29

Adjustment Cam

505073625

$12.99

30

Spring Guide

503187500

$10.49

31

Cap

706200785

$4.69

32

Spring Stopper

706200881

$12.99

33

Bushing Holder

706001099

$33.99

34

Seal

293200144

$5.09

35

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

36

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

37

Grease Fitting 90°

293550056

$1.15

38

Grease Fitting

250000315

$5.82

39

Bushing

706200181

$3.14

40

Sleeve

706201587

$3.79

41

Torx Screw M6 X 20

250000712

$2.11

42

Hex. Flange Elastic Nut M6

233261494

$1.58
