Description

Price

1

Frame, Black

705200985

Unavailable

2

Frame Extension, Black

705201039

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

$3.38

4

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

LH Footrest, Black

705200635

Unavailable

7

RH Footrest, Black

705200653

Unavailable

8

Hex. Flange Screw M8 X 20

207682044

$1.15

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Removable Brace, Black

705200143

Unavailable

11

Hex. Flange Screw M8 X 25

207682544

$1.35

12

Hex. Flange Screw M8 X 50

207685044

$1.69

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Cross Member, Black

705201106

Unavailable

15

Hex. Flange Screw M8 X 20

207682046

$1.90

16

Hex. Elastic Flange Nut M8

233281416

$1.48

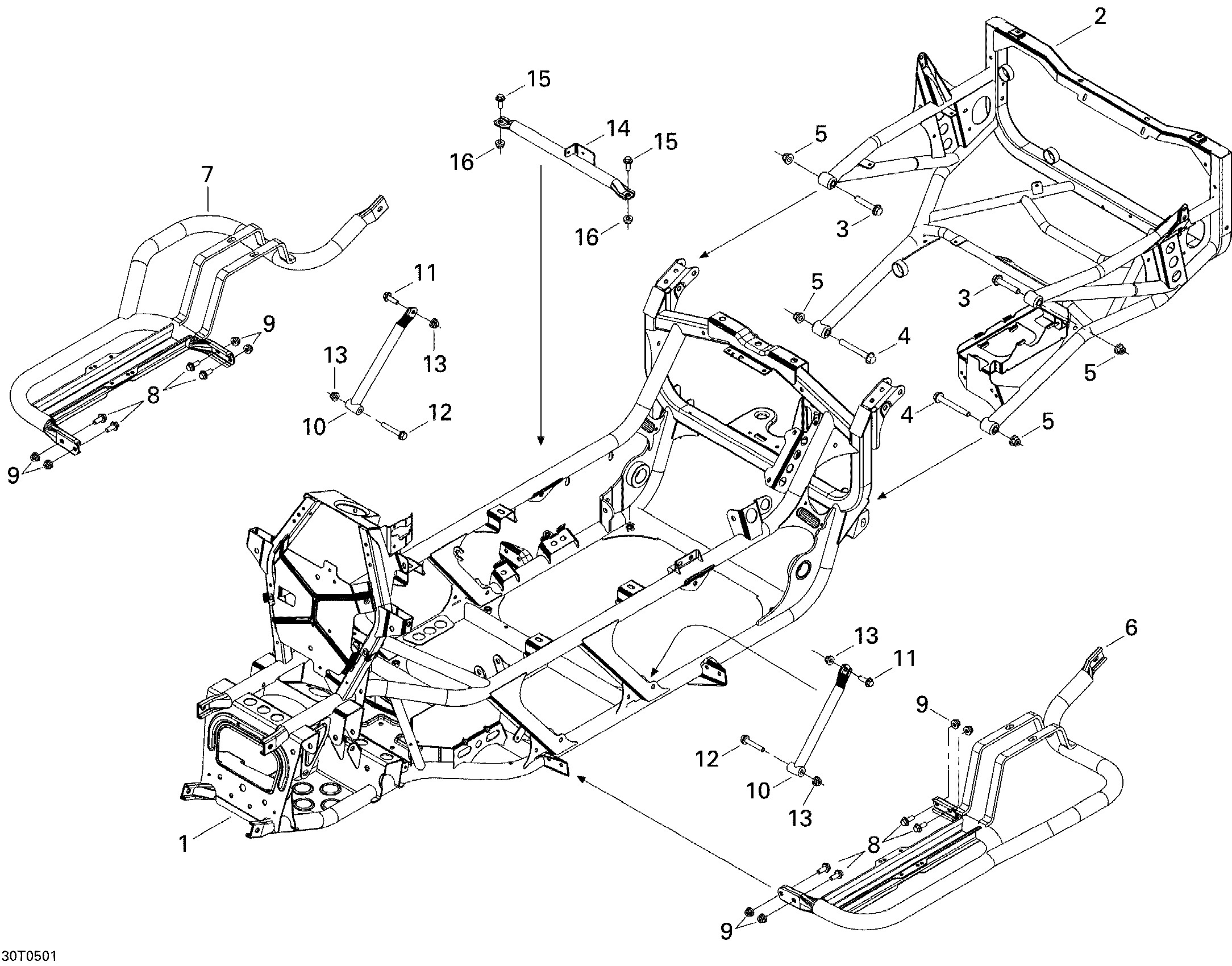

Can-Am Traxter Max Std & Max XT, 2005 09- Frame Diagram

Frame, Black

Frame Extension, Black

Hex. Flange Screw M10 X 55

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

Hex. Flange Elastic Nut M10

LH Footrest, Black

RH Footrest, Black

Hex. Flange Screw M8 X 20

Hex. Flange Elastic Nut M8

Removable Brace, Black

Hex. Flange Screw M8 X 25

Hex. Flange Screw M8 X 50

Hex. Flange Elastic Nut M8

Cross Member, Black

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8
