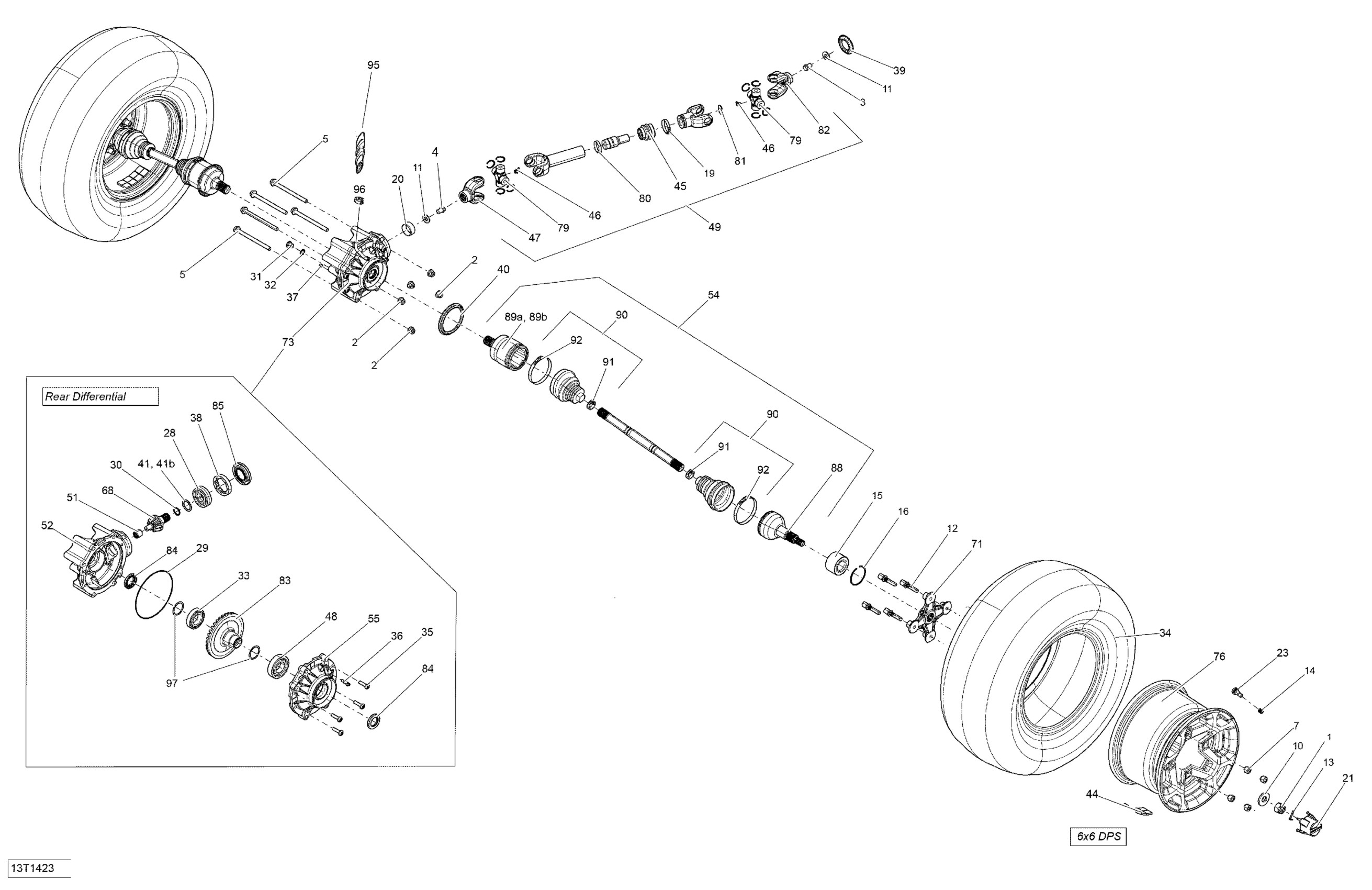

Can-Am Outlander 6x6 (International & T3), 2014 08- Drive System, Rear _13T1423 Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$7.98

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

4

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

5

Hex. Flange Screw M10 X 135

250001041

$5.59

7

Black, Wheel Nut M10 X 1.25

250100184

$4.51

10

Conical Spring Washer M18

250200171

$7.65

11

Flat Washer M12

250200102

$2.11

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

13

Cotter Pin

250400036

$2.11

14

Valve Cap

293000110

$1.59

15

Ball Bearing

293350150

$52.99

16

Circlip

293370019

$4.68

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

20

Wear Ring | 4X4

705400036

$26.49

21

Wheel Cap

705400928

$10.49

23

Rim Valve With Cap

705400193

$8.69

28

Ball Bearing | 4X4

705500260

$31.99

29

Seal | 4X4

705500265

$18.76

30

O-Ring | 4X4

705500267

$7.65

31

Fill Level Plug | 4X4

705500504

$10.01

32

Copper Washer | 4X4

705500506

$0.45

33

Ball Bearing

705502737

$48.49

34

Tire | XT, C/U, INT

705501769

$169.99

35

Screw | 4X4

705401601

$10.49

36

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

37

Drain Plug | 4X4

705500894

$11.49

38

Nut

705502059

$32.99

39

Protector

705501123

$7.55

40

Wear Ring

705501124

$7.90

41

Pinion Gear Shim

705501162

$16.49

41b

Pinion Gear Shim 1.67 mm

705502061

$18.99

44

1/2 Oz Weight

219704465

$3.89

45

Rubber Boot

715900118

$14.30

46

Grease Fitting

715900184

$5.24

47

Fixe Yoke

715900101

$29.49

48

Ball Bearing

705502738

$59.49

49

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$412.99

51

Needle Bearing

705501408

$69.99

52

PINION REAR COVER - Call your local BRP dealership

705501420

Unavailable

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

55

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

68

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

71

Wheel Hub Ass'y

705501716

$105.99

73

Rear Drive Unit Ass'y

705501916

Unavailable

76

Black, Rim | XT

705501856

$201.49

79

Universal Joint

715900326

$68.99

80

Oetiker Gear Clamp 36.1MM

509000045

$8.29

81

COVER - Call your local BRP dealership

715900187

Unavailable

82

Fixed Joint

715900129

$24.99

83

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

84

Oil Seal

705501996

$21.99

85

Oil Seal | 4X4

705401481

$19.49

88

CV Joint

705501776

$259.49

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

$6.50

90

Boot Kit

705501864

$42.49

91

Oetiker Clamp, 27.3 mm

715900242

$10.33

92

Oetiker Clamp, 82.1 mm

715900241

$10.33

95

Rubber Bellow | 4X4

705400552

$6.14

96

Oetiker Clamp

293650042

$3.09

97

Differential Shim 0.02 mm

705502060

$13.76
