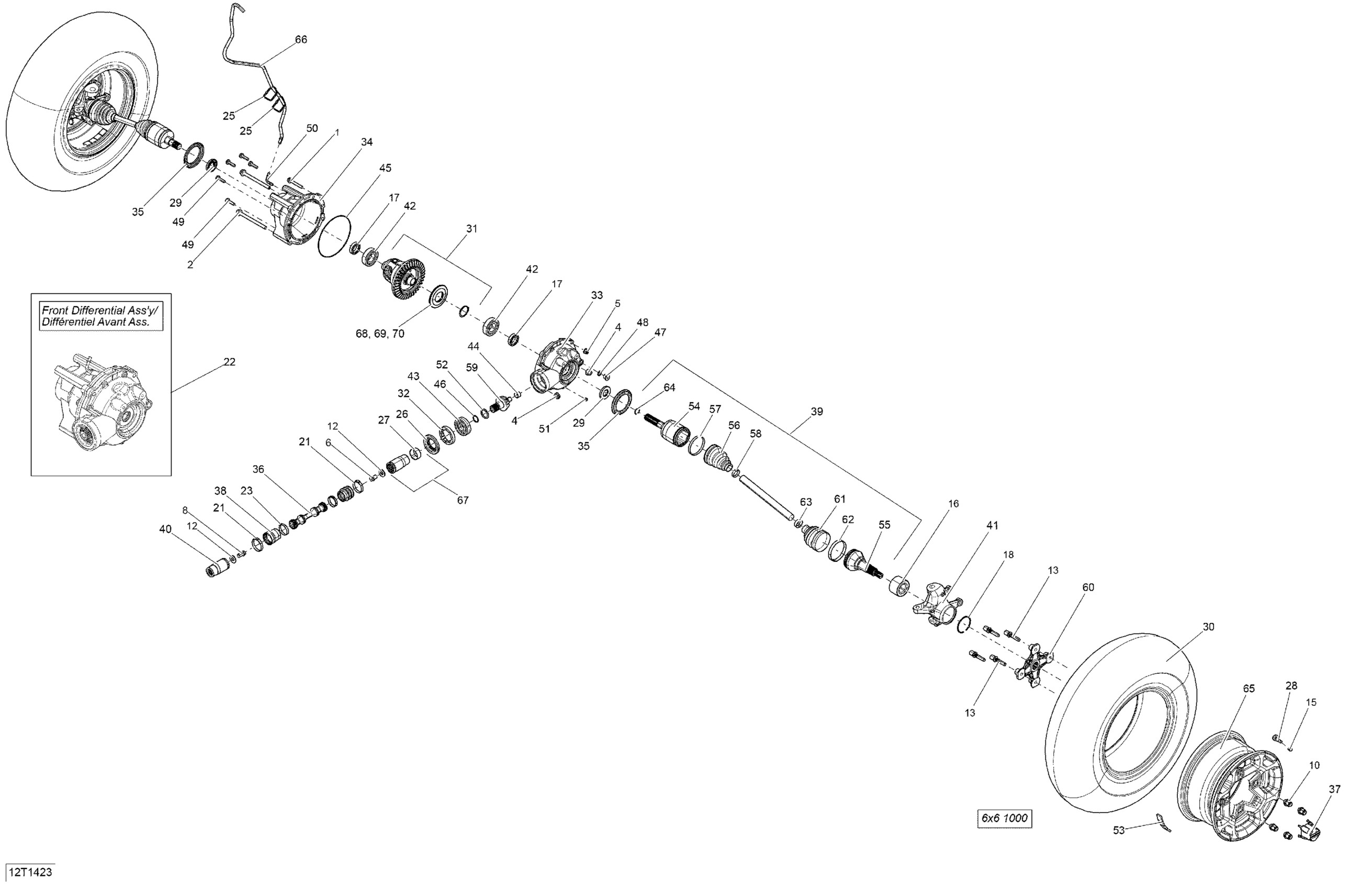

Can-Am Outlander 6x6 (International & T3), 2014 07- Drive System, Front _12T1423 Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 55

207685544

$5.39

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

7

Hex. Flange Screw M6 X 25

250000787

$2.22

7b

Insert | XXC

293450317

$7.29

8

Hex Flange Screw M12 X 20

250001042

$1.90

10

Black, Wheel Nut M10 X 1.25

250100184

$4.51

11

Conical Spring Washer M18

250200171

$7.65

12

Flat Washer M12

250200102

$2.11

13

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

14

Cotter Pin

250400036

$2.11

15

Valve Cap

293000110

$1.59

16

Ball Bearing

293350150

$52.99

17

Ball Bearing | 4X4

293350044

$31.99

18

Circlip

293370019

$4.68

21

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

22

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

23

Oetiker Gear Clamp

293650199

$9.69

25

Tie-Rap 180 mm

414115200

$0.11

26

Oil Seal | 4X4

705401481

$19.49

27

Wear Ring | 4X4

705400036

$26.49

28

Rim Valve With Cap

705400193

$8.69

29

Oil Seal | 4X4

705401481

$19.49

30

Tire | XT

705401333

$144.99

31

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

32

Nut | 4X4

705401603

$35.99

33

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

34

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

35

Wear Sleeve

705400780

$7.90

36

Propeller Shaft | Includes 1 to 2

705400913

$211.99

37

Wheel Cap

705400928

$10.49

38

Rubber Boot

705401093

$5.00

39

RH Front - Premium CV Axle

705401116

$243.99

39

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

40

Front Bushing Shaft Kit | 4X4

703500678

$114.99

41

LH Knuckle

705403307

$179.99

41

RH Knuckle

705403308

$179.99

42

Ball Bearing | 4X4

705401606

$51.99

43

Ball Bearing | 4X4

705500260

$31.99

44

Needle Bearing | 4X4

705500261

$19.99

45

Seal | 4X4

705500265

$18.76

46

O-Ring | 4X4

705500267

$7.65

47

Fill Level Plug | 4X4

705500504

$10.01

48

Copper Washer | 4X4

705500506

$0.45

49

Screw | 4X4

705401601

$10.49

50

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

51

Drain Plug | 4X4

705500894

$11.49

52

Pinion Gear Shim

705501162

$16.49

53

1/2 Oz Weight

219704465

$3.89

54

RH Plunging Joint

705401348

$259.49

54

LH Plunging Joint

705401350

$259.49

55

CV Joint

705401344

$259.49

56

Boot Kit, Differential Side

705401346

$42.49

57

Oetiker Clamp, Large

715900284

$5.29

58

Oetiker Clamp, Small

715900261

$5.29

59

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

60

Wheel Hub Ass'y

705501716

$105.99

61

Boot Kit, Wheel Side

705401345

$42.49

62

Oetiker Clamp

715900282

$5.29

63

Oetiker Clamp, Small

715900283

$5.29

64

Circlip Joint | Not shown

705401349

$6.50

65

Black, Rim | XT

705401420

$190.49

66

Polyurethane Hose 10000Mm Long

219704410

$56.99

67

Front Bushing Shaft Kit | 4X4

703500678

$114.99

68

Shim | 4X4

705401604

$57.99

69

Shim | 4X4

705401604

$57.99

70

Pinion Gear Shim 1.67 mm

705502061

$18.99
