Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257654

$80.99

3

Collar Sleeve

420647123

$38.99

4

Ball Bearing

420932816

$42.49

5

Ball Bearing

420932822

$30.49

6

Torx Screw M6 X 16

420241529

$2.11

7

Distance Screw M6

420441433

$3.49

8

Oil Seal

420950089

$19.49

9

O-Ring

420631612

$4.33

10

Distance Ring

420647250

Unavailable

11

Torx Flange Screw M6 X 55

420440702

$3.06

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Shim Set

420281313

Unavailable

14

Shim Set

420281315

Unavailable

15

Tapered Roller Bearing 32206 BJ2/QCL7CVA

420632751

Unavailable

16

Hex. Nut M24 X 1.5

420842582

Unavailable

17a

Not Available As Spare Part - Friction Washer

Unavailable

17b

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer

420427011

$5.79

19

Needle Bearing

420932930

$27.49

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$25.99

23

Gear Pinion, 34 Teeth

420434873

$89.99

24

Retaining Ring

420845772

$6.38

25

Shifting Sleeve

420257954

$85.99

26

Gear Pinion, 46 Teeth

420434865

$85.99

27

Gear Pinion, 36 Teeth

420434857

$93.99

28

Shifting Sleeve

420257945

$99.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Shift Fork

420657365

$114.99

31

Pivot

420258394

$22.49

32

Shift Fork Ass'y

420258515

$184.99

33a

Index Lever | Includes 33a to 37

420248533

$64.99

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420440207

$3.06

39

Allen Screw M6 X 20

420241939

$0.73

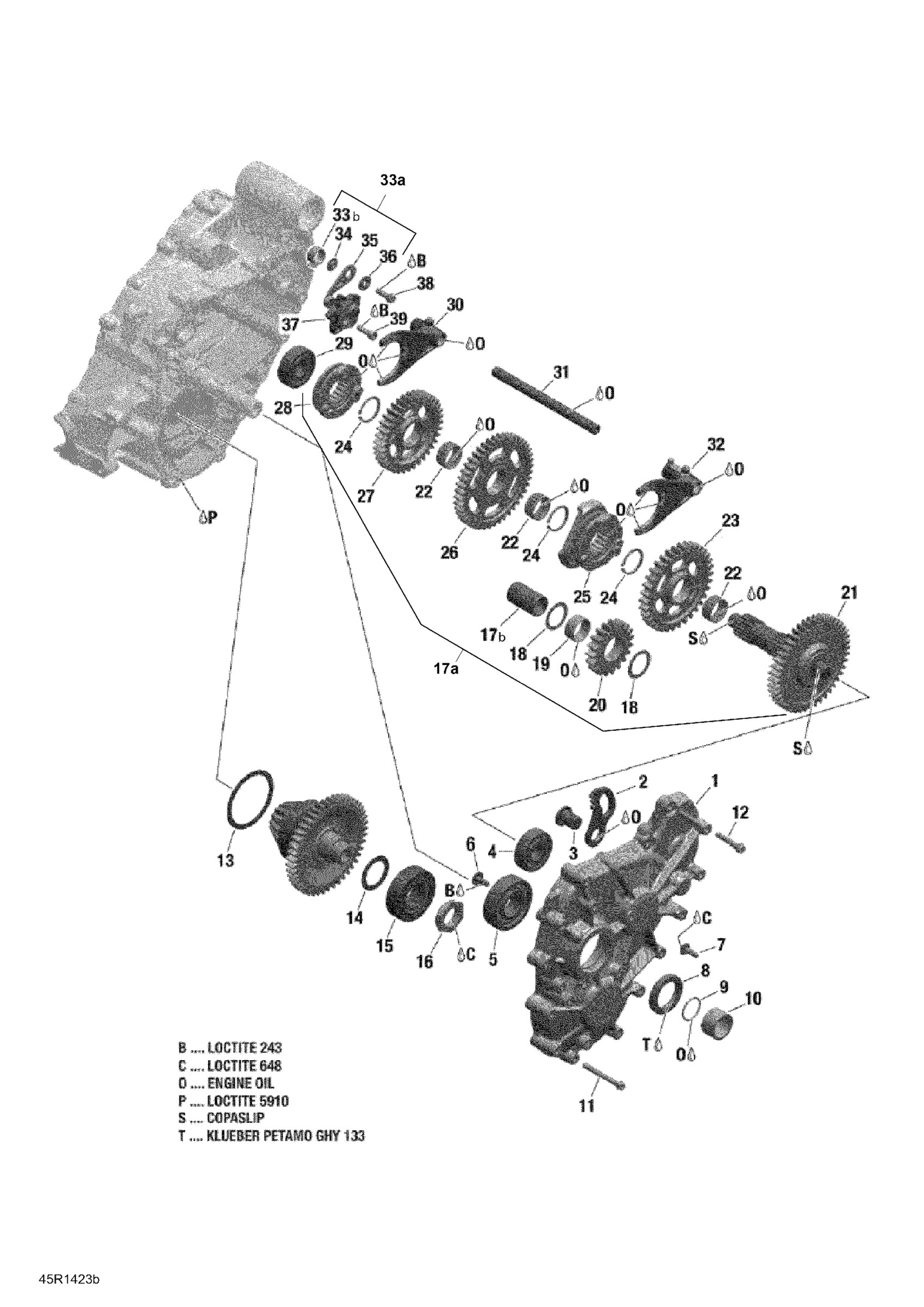

Can-Am Outlander 6x6 (International & T3), 2014 05- Gear Box 2 _45R1423b Diagram

Not Available As Spare Part - Friction Washer

Parking Lock Lever

Collar Sleeve

Ball Bearing

Ball Bearing

Torx Screw M6 X 16

Distance Screw M6

Oil Seal

O-Ring

Distance Ring

Torx Flange Screw M6 X 55

Torx Flange Screw M6 X 35

Shim Set

Shim Set

Tapered Roller Bearing 32206 BJ2/QCL7CVA

Hex. Nut M24 X 1.5

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Thrust Washer

Needle Bearing

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Needle Bearing

Gear Pinion, 34 Teeth

Retaining Ring

Shifting Sleeve

Gear Pinion, 46 Teeth

Gear Pinion, 36 Teeth

Shifting Sleeve

Not Available As Spare Part - Friction Washer

Shift Fork

Pivot

Shift Fork Ass'y

Index Lever | Includes 33a to 37

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Torx Flange Screw M6 X 20

Allen Screw M6 X 20
