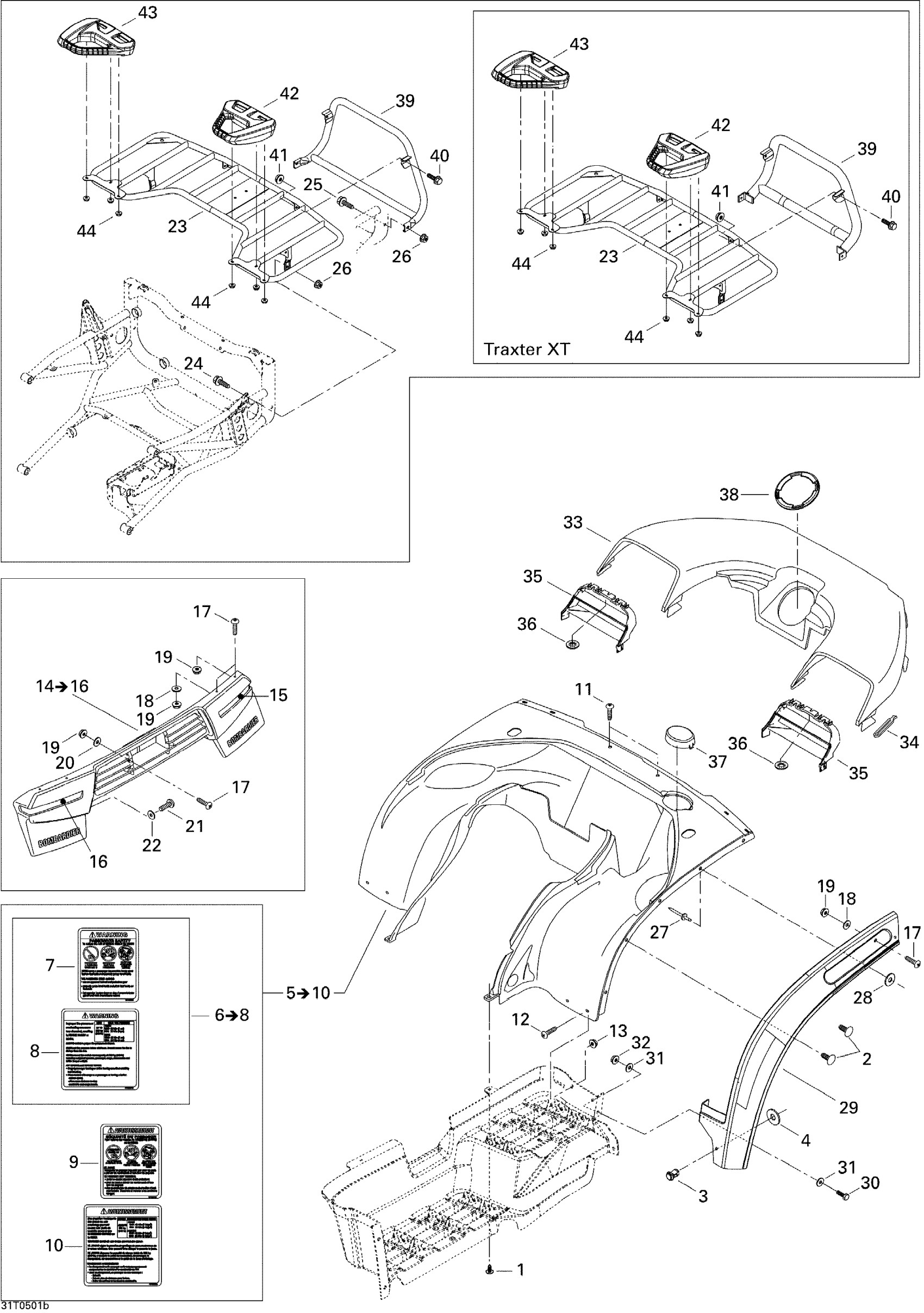

Can-Am Traxter Max Std & Max XT, 2005 09- Body And Accessories 2 Diagram

#

Description
Price

1

Black, Dart

293730011

$0.99

2

Black, Dart

293730011

$0.99

3

Tuflok Plastic Rivet

293150230

$1.47

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Rear Fender, Yellow | Yellow, Includes 5 to 10

703500465

Unavailable

5

Rear Fender, Viper Red | Viper Red, Includes 5 to 10

703500466

Unavailable

5

Rear Fender, Laurentian Green | Laurentian Green, Includes 5 to 10

703500467

Unavailable

6

Warning Decal Ass'y | Includes 4 To 6

704900857

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

12

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

Unavailable

15

RH Rear Reflector

704900085

Unavailable

16

LH Rear Reflector

704900086

Unavailable

17

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

18

Flat Washer

224060201

$1.26

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Flat Washer

224060201

$1.26

21

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

22

Flat Washer

224061121

$0.53

23

Luggage Rack, Black

705000674

Unavailable

24

Hex. Flange Screw M8 X 20

207682044

$1.15

25

Hex. Flange Screw M8 X 50

207685044

$1.69

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Tuflok Plastic Rivet

293150230

$1.47

28

Flat Washer 8 mm

234082410

$1.47

29

LH Front Mudguard

705001593

Unavailable

29

RH Front Mudguard

705001592

Unavailable

30

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

31

Flat Washer

224060201

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Fender Cover, Yellow | Yellow

705000179

Unavailable

33

Fender Cover, Viper Red | Red

705000576

Unavailable

33

Fender Cover, Laurentian Green | Green

705000831

Unavailable

34

Windshield Latch

570023800

$4.49

35

LH Grill, Black

705000180

Unavailable

35

RH Grill, Black

705000181

Unavailable

36

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

37

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

38

CAP - Call your local BRP dealership

705000207

Unavailable

39

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

39

Rear Bumper, Black | Traxter 5 Speed XT

705001267

Unavailable

40

Hex. Flange Screw M8 X 25

207682544

$1.35

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

LH Handle

705001761

Unavailable

43

RH Handle

705001762

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
