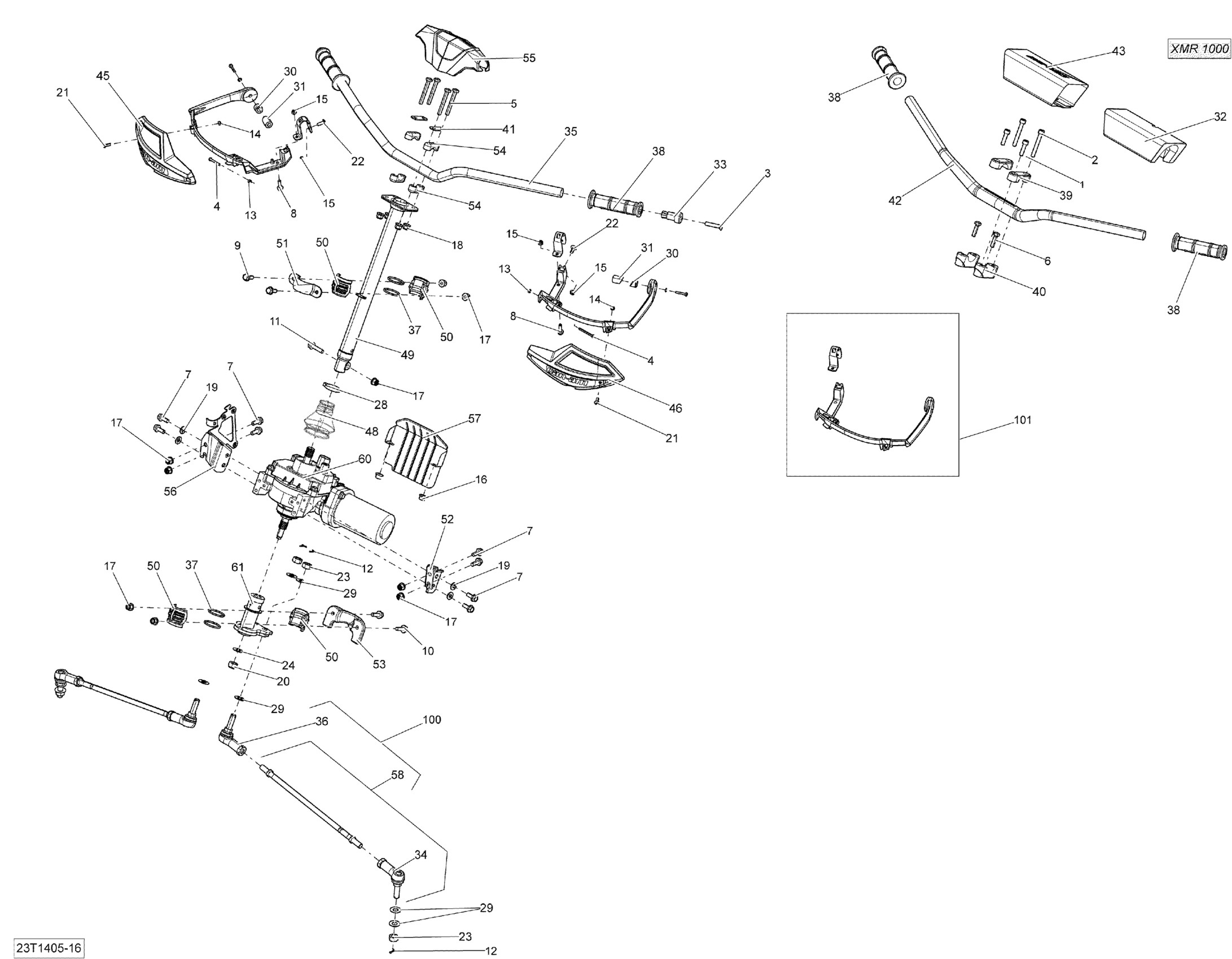

Can-Am Outlander 650EFI XMR, 2014 07- Steering Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

Socket Head Screw | X

205384034

$6.49

4

Socket Head Screw M4 X 40 | X

205444086

$1.69

5

Hex. Screw M8 X 60

207086046

$2.85

6

Not Available As Spare Parts

XXX

Unavailable

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Hex. Flange Screw M8 X 25

207682544

$1.35

11

Hex. Flange Screw M8 X 35

207683544

$1.69

12

Cotter Pin

211400013

$0.37

13

Elastic Stop Nut M4

232541414

$0.58

14

Hex. Elastic Nut M5 | X

232551600

$1.15

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Hex. Flange Nut M8

233081416

$1.15

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Hex. Elastic Flange Nut M8

233281416

$1.48

19

Conical Spring Washer M8

234281474

$1.48

20

Hex. Flange Elastic Nut M12

250000047

$1.90

21

Torx Screw M5 X 14

250000742

$1.47

22

Torx Screw M6 X 16

250000223

$2.11

23

Nut M12

250100099

$2.09

24

Hardened Washer

706200281

$2.85

28

Tie-Rap 180 mm

414115200

$0.11

29

Hardened Washer

706200281

$2.85

30

Small Bracket | DS 650 X

709400161

$21.99

31

Large Bracket | DS 650 X

709400162

$20.99

32

Not Available As Spare Parts

XXX

Unavailable

33

End Piece

709400449

$8.49

34

LH Ball Joint

709402303

$36.99

35

Black, Handle Bar

709401240

$69.99

36

RH Ball Joint

709402302

$36.99

37

Not Available As Spare Parts

XXX

Unavailable

38

Handle Grip

709400493

$14.83

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Stiffner

709400509

$4.69

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

45

Deep Black RH Air Deflector | Camo Model

709401303

$35.99

46

Deep Black LH Air Deflector | Camo Model

709401304

$35.99

48

Bellows

709400674

$18.99

49

Kit Tube-Main.

703501137

$184.99

50

Spherical Half Bushing

709400783

$7.65

51

Upper Column Attachment

709400827

$1.09

52

Power Steering Module Bracket

709400848

$16.49

53

Column Attachment

709401428

$38.99

54

Steering Support

709400919

$22.49

55

Cover

709400939

$24.99

56

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

57

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

58

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

60

Power Steering

709401608

$1,010.49

61

Pitman Kit

703500812

$159.99

100

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

101

Air Deflector Support Kit | X

715001378

$138.49
