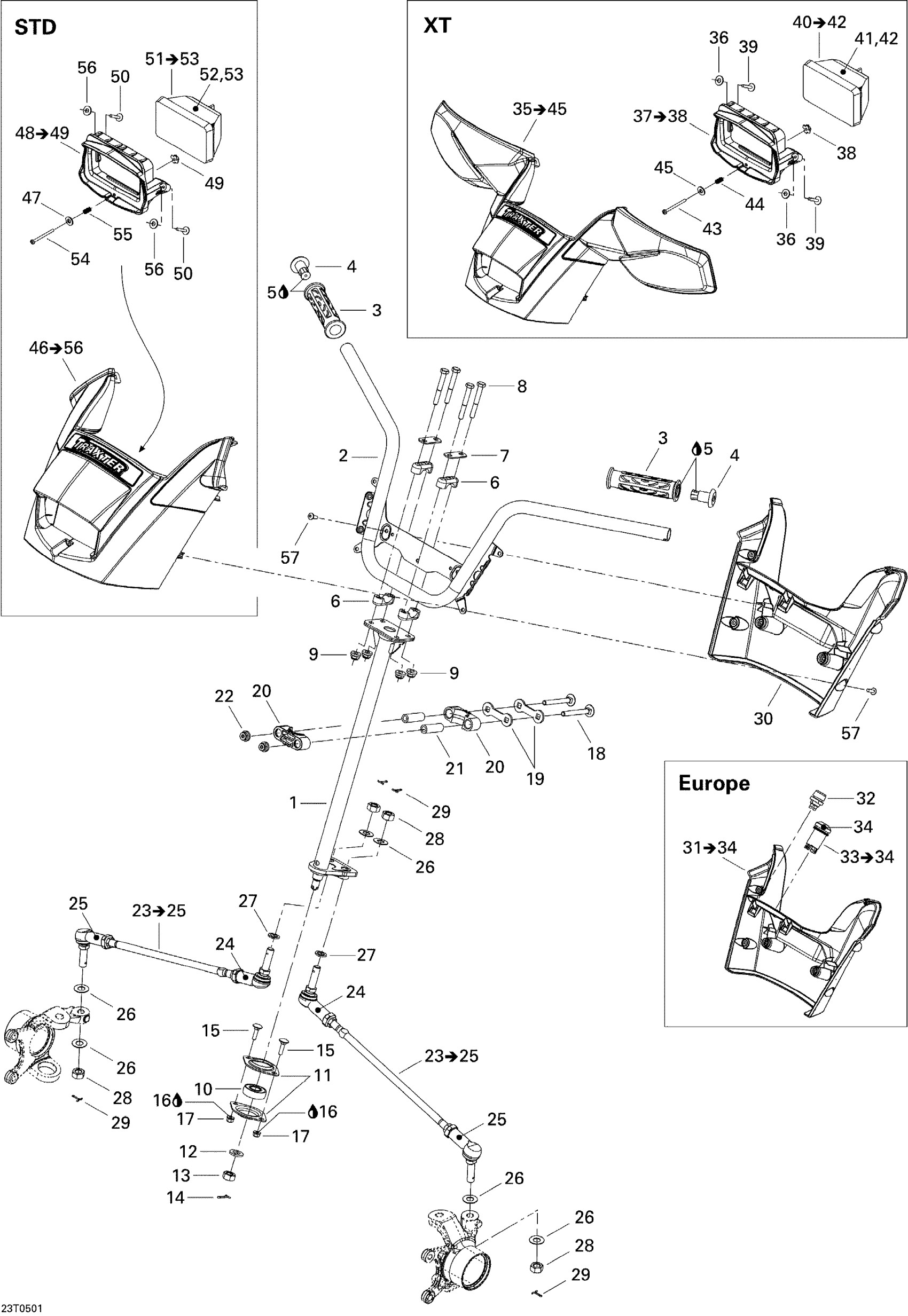

Can-Am Traxter Max Std & Max XT, 2005 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400305

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400300

Unavailable

3

Handle Grip

709400493

$14.83

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Nut M12

250100099

$2.09

14

Cotter Pin

211400017

$0.33

15

Carriage Bolt M6 X 25

207762544

$1.69

16

Loctite 243, 10 ml

293800060

$21.49

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Carriage Bolt M8 X 70

207787044

$1.37

19

Stopper Plate

506150600

$4.39

20

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

21

Housing Bushing

506150500

$7.99

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

$174.99

24

RH Ball Joint

709402302

$36.99

25

LH Ball Joint

709402303

$36.99

26

Hardened Washer

706200281

$2.85

27

Washer

503189276

$3.28

28

Nut M12

250100099

$2.09

29

Cotter Pin

211400013

$0.37

30

REAR STEERING COVER - Call your local BRP dealership

709400273

Unavailable

31

Rear Steering Cover Ass'y | Europe / Includes 32 to 36

709400336

Unavailable

32

Push Button

415130372

$122.49

33

EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe

710000367

Unavailable

34

EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe

710000661

Unavailable

35

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter XT 5 Speed / Includes 37 to 48

709400333

Unavailable

36

Washer M5

250200025

$0.74

37

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

38

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

39

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

40

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

41

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

42

BULB - Call your local BRP dealership

710000762

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Spring

517168600

$7.39

45

Washer M5

250200025

$0.74

46

FRONT STEERING COVER ASS'Y - Call your local BRP dealership | Traxter STD 5 Speed / Includes 37 to 48

709400334

Unavailable

47

Washer M5

250200025

$0.74

48

Light Stand Ass'y | Includes 40 to 41

709400296

Unavailable

49

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

50

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

51

CENTRAL HEADLAMP ASS'Y - Call your local BRP dealership | Includes 43 to 45

710000712

Unavailable

52

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

53

BULB - Call your local BRP dealership

710000762

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Spring

517168600

$7.39

56

Washer M5

250200025

$0.74

57

Torx Screw K50 X 16

250000720

$1.69
