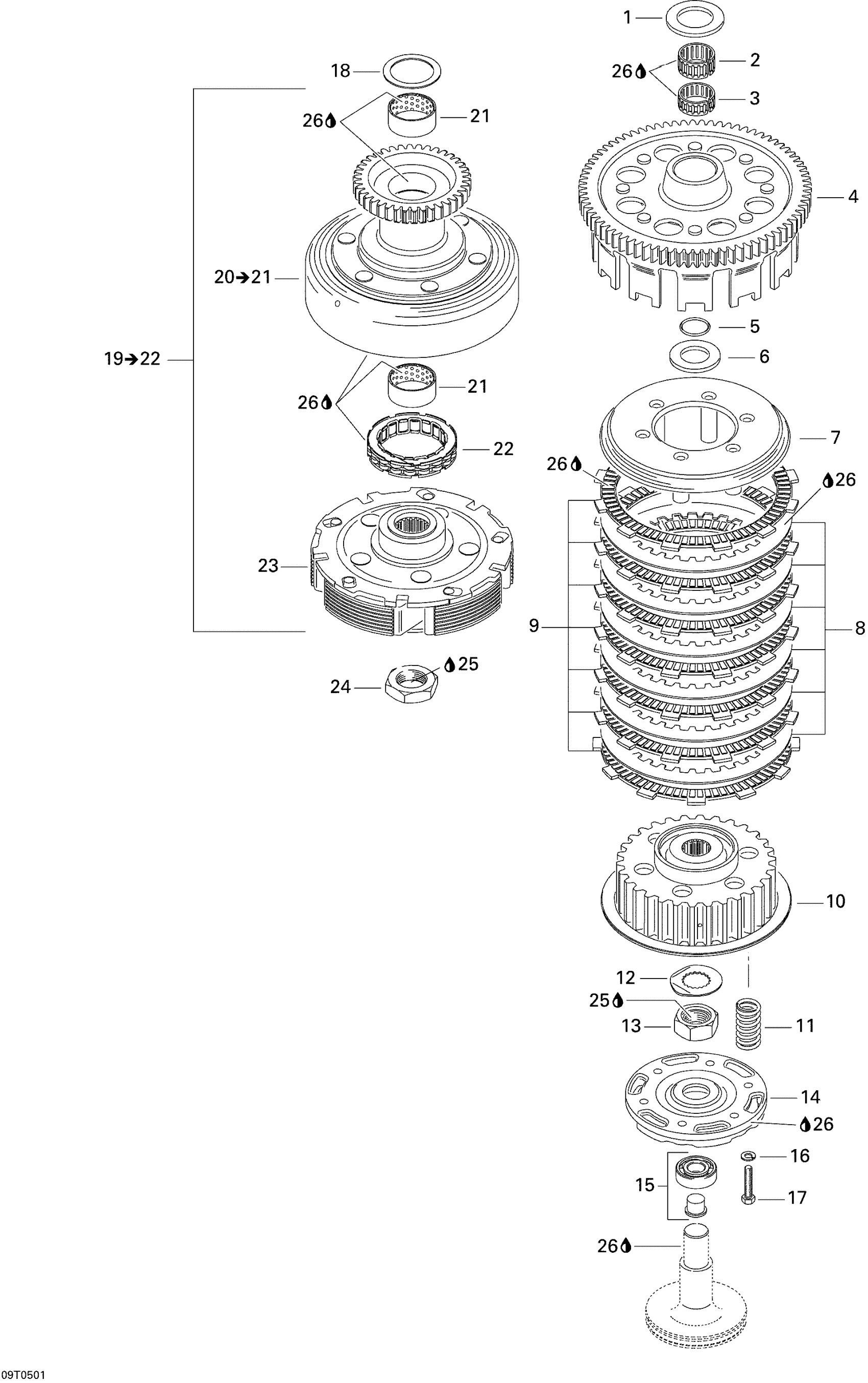

Can-Am Traxter Max Std & Max XT, 2005 05- Clutch Diagram
#
Description
Price
1
THRUST WASHER - Call your local BRP dealership
420227390
Unavailable
3
NEEDLE CAGE - Call your local BRP dealership
420232655
Unavailable
4
Clutch Drum
420659203
Unavailable
5
O-RING - Call your local BRP dealership
293300018
Unavailable
6
THRUST WASHER - Call your local BRP dealership
420227600
Unavailable
7
INNER PLATE - Call your local BRP dealership
420659230
Unavailable
8
Plate 1.5 mm
420259915
Unavailable
9
LAMELLA 3 MM - Call your local BRP dealership
420259907
Unavailable
10
CLUTCH HUB - Call your local BRP dealership
420259876
Unavailable
11
CLUTCH SPRING - Call your local BRP dealership
420239741
Unavailable
12
TAB WASHER - Call your local BRP dealership
420245320
Unavailable
13
Hex. Nut M18
420242605
Unavailable
15
Hub Thrust With Ball Bearing
420259143
Unavailable
16
Lock Washer
420945750
Unavailable
17
HEX. SCREW M5 X 25 - Call your local BRP dealership
420241770
Unavailable
18
THRUST WASHER - Call your local BRP dealership
420427130
Unavailable
19
CLUTCH ASS'Y - Call your local BRP dealership | Includes 19 to 23
420296093
Unavailable
20
CLUTCH - Call your local BRP dealership | Includes 20 to 21
420659177
Unavailable
21
CLUTCH BUSHING - Call your local BRP dealership
420233765
Unavailable
22
SPRAG CLUTCH - Call your local BRP dealership
420659240
Unavailable
23
CLUTCH HUB - Call your local BRP dealership
420659180
Unavailable
26
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
