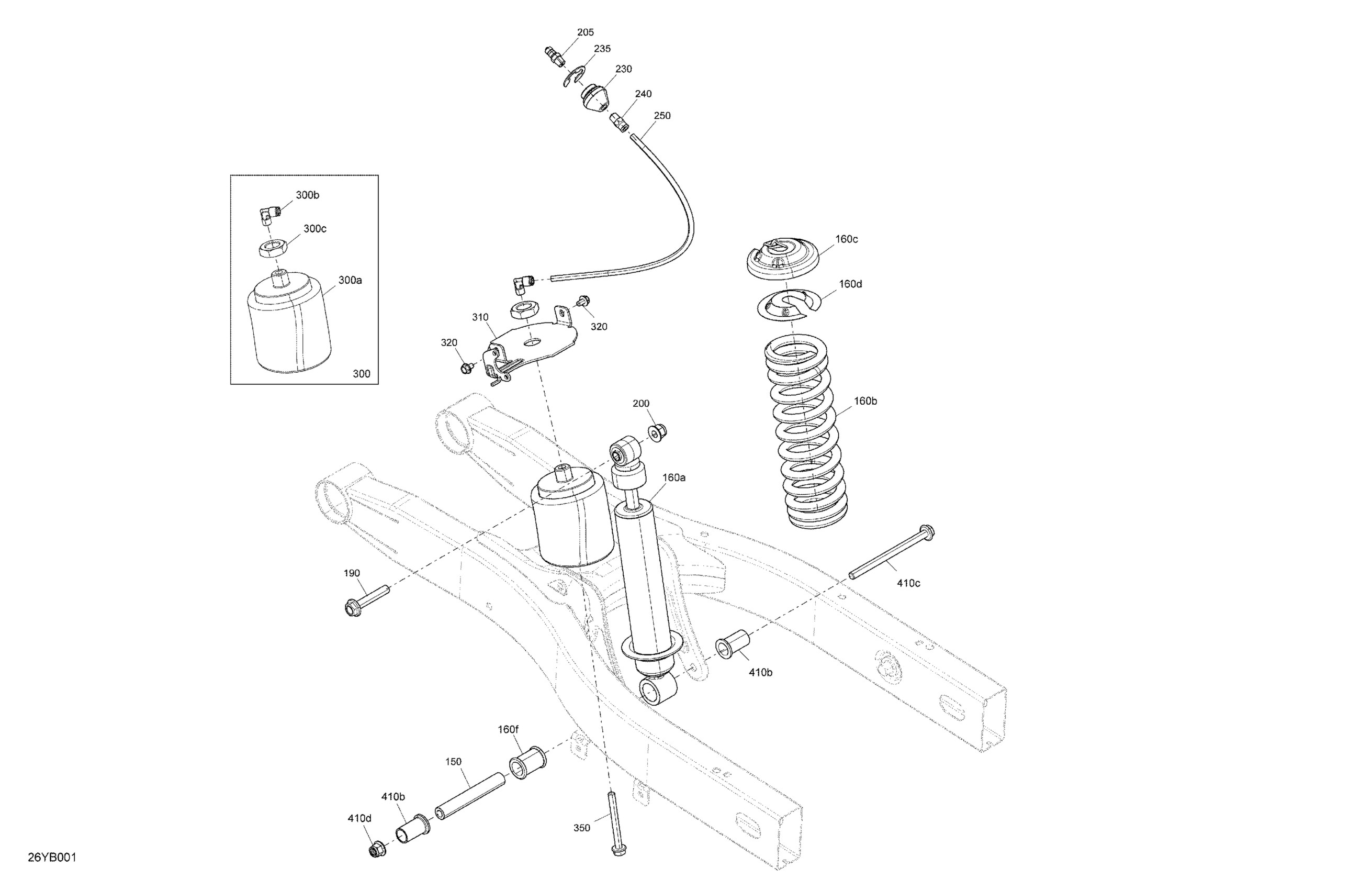

Can-Am 001 - RT - Hyper Silver, 2022 05- Suspension - Rear Shock Diagram

Description

Price

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706001552

$116.49

160b

Shock Absorber Spring

706001542

$61.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

205

Air Valve

706002797

$18.49

230

Pneumatic Connector

706004028

$19.49

235

Circlip

293370123

$2.69

240

Connector

706000869

$34.99

250

Hose 4.32Mm 3000Mm Long

219704415

$55.99

300

Air Damper Kit

219800175

$291.49

300a

Not Available As Spare Part - Friction Washer

Unavailable

300b

Elbow 90°

706001018

$28.99

300c

Jam Nut M20

250100119

$4.13

310

Support Plate

706001082

$19.49

320

Hex. Forming Screw M6 X 10

210261050

$1.69

350

Hex. Flange Screw M8 X 75

207687544

$7.41

410b

Spacer

706000410

$13.99

410c

Hex. Flange Screw M10 X 140

230604034

$6.77

410d

Hex. Flange Elastic Nut M10

233201434

$2.09
