Description

Price

1

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

6

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

7

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

8

Steel Wheel Nut

250100042

$3.98

9

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

10

Conical Spring Washer M18

250200171

$7.65

11

Flat Washer M12

250200102

$2.11

12

Dowell Pin | 4X4

250400025

$7.73

13

Cotter Pin

250400036

$2.11

14

Valve Cap

293000110

$1.59

15

Oil Seal | 4X4

293250138

$23.99

16

O-Ring

293300091

$7.51

17

Ball Bearing

293350150

$52.99

18

Ball Bearing | 4X4

293350044

$31.99

19

Circlip

293370019

$4.68

20

Circlip | 4X4

293370029

$5.19

21

Circlip | 4X4

293370030

$2.89

24

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

25

Wear Ring | 4X4

705400036

$26.49

26

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

27

Ball Bearing | 4X4

705400249

$25.99

28

Shifter Lever Plate | 4X4

705401553

$20.99

29

Coupling Sleeve | 4X4

705400389

$31.99

30

Wheel Cap | STD

705400563

$18.99

31

Actuator Ass'Y | Includes 72 to 74

715900502

$499.99

32

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

33

RIM_12 INCH X 6 - Call your local BRP dealership | XT (Except Camo)

705400648

Unavailable

33

Black,12" X 6 Rim | STD

705401199

$119.99

34

Nut | 4X4

705401603

$35.99

35

WHEEL CAP - Call your local BRP dealership

705400680

$15.49

36

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

37

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

38

Wear Sleeve

705400780

$7.90

40

LH Knuckle

705400816

$206.49

40

RH Knuckle

705400818

$206.49

41

Slider | 4X4

705402139

$46.99

42

Rim Valve With Cap

705400193

$8.69

44

Boot Kit, Differential Side

705401346

$42.49

44a

Oetiker Clamp, Large

715900284

$5.29

44b

Oetiker Clamp, Small

715900261

$5.29

45

Boot Kit, Wheel Side

705401345

$42.49

45a

Oetiker Clamp

715900282

$5.29

45b

Oetiker Clamp, Small

715900283

$5.29

46

LH Half Shaft | Includes 42 to 47

705401578

$243.99

46

RH Half Shaft | Includes 34 to 39

705401579

$243.99

47

Ball Bearing | 4X4

705401606

$51.99

48

Ball Bearing | 4X4

705500260

$31.99

49

Needle Bearing | 4X4

705500261

$19.99

50

Seal | 4X4

705500265

$18.76

51

O-Ring | 4X4

705500267

$7.65

52

Fill Level Plug | 4X4

705500504

$10.01

53

Copper Washer | 4X4

705500506

$0.45

54

Screw | 4X4

705401601

$10.49

55

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

56

Drain Plug | 4X4

705500894

$11.49

57

Wear Sleeve | 4X4

705501121

$7.90

58

Pinion Gear Shim 1.67 mm

705502061

$18.99

58

Pinion Gear Shim

705501162

$16.49

59

1/2 Oz Weight

219704465

$3.89

60

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

61

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

62

Copper Washer

705601628

$4.44

63

SWITCH - Call your local BRP dealership | 4X4

710000324

$28.99

64

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

705400912

$179.99

65

Rubber Boot

715900118

$14.30

66

Oetiker Gear Clamp 36.1MM

509000045

$8.29

67

Front Bushing Shaft Kit | 4X4

703500678

$114.99

68

Front Differential | Includes 8 to 31

703500907

$1,579.99

69

Oil Seal | 4X4

705401481

$19.49

70

Gasket | 4X4

705401618

$18.49

71

Circlip Joint | Not shown

705401349

$6.50

72

CV Joint

705401344

$259.49

73

JOINT-PLUNGING - Call your local BRP dealership

715900310

Unavailable

73

JOINT-PLUNGING - Call your local BRP dealership

715900309

Unavailable

74

Polyurethane Hose 10000Mm Long

219704410

$56.99

76

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

77

Front Tire | XT

705400606

$134.99

77

Front Tire | XT

705400326

$134.99

77

Tire 205 X 80 R12

705402890

$153.49

77

Front Tire | STD Europe

705401626

$224.99

78

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

Unavailable

79

Shim | 4X4

705401604

$57.99

80

Shim | 4X4

705401604

$57.99

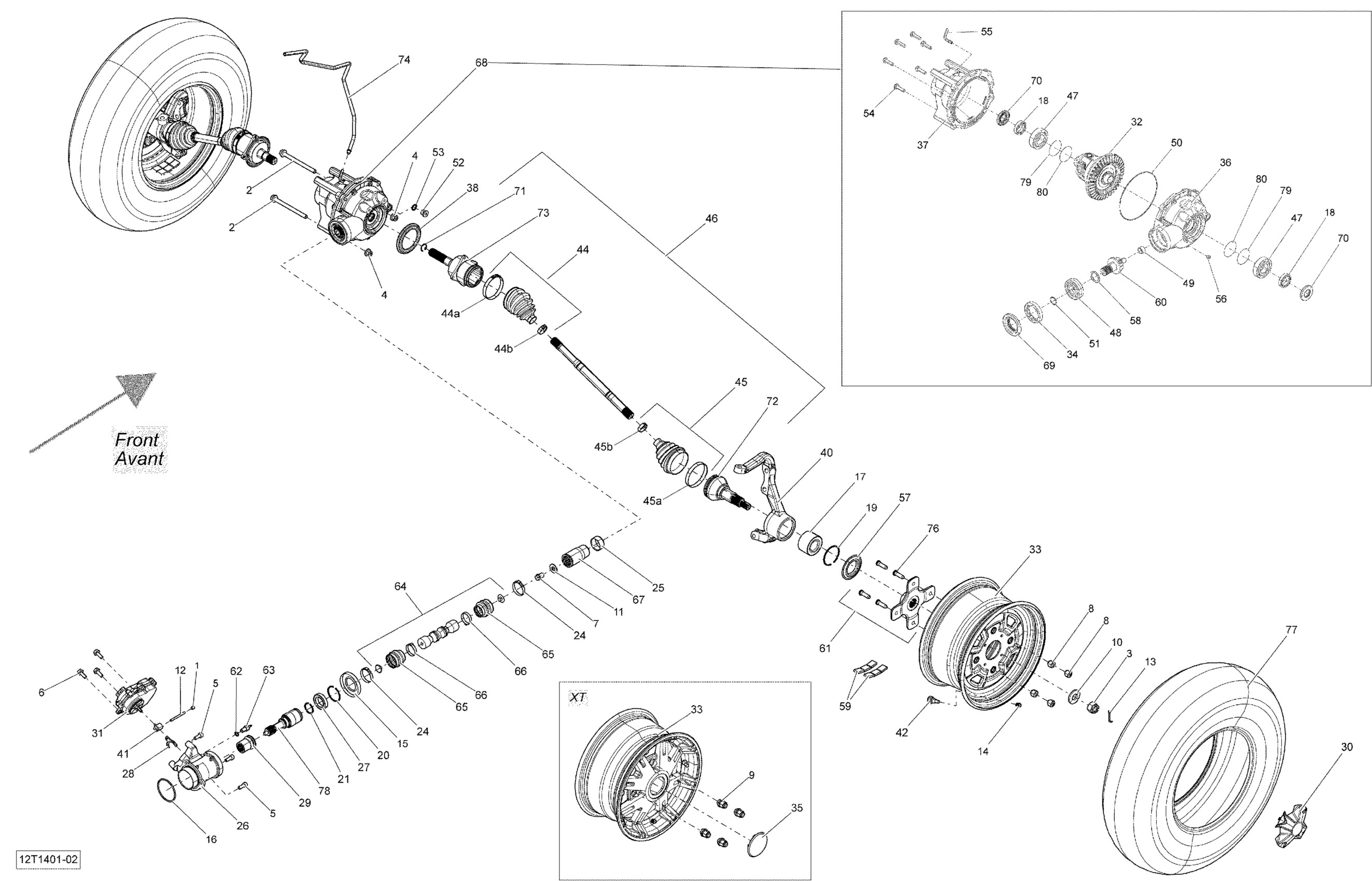

Can-Am Outlander 400 EFI, STD, XT, 2014 07- Drive System, Front Diagram
