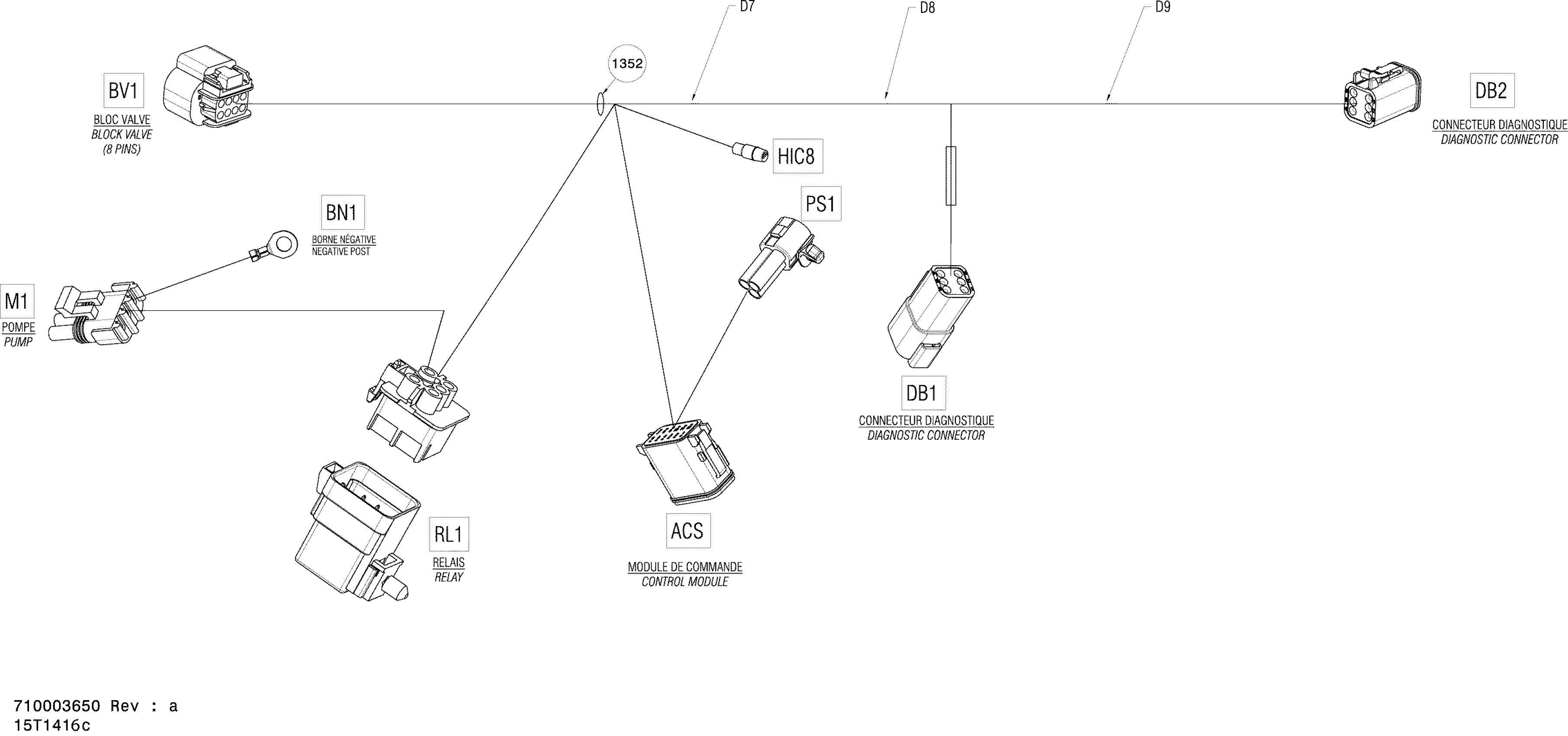

Can-Am Outlander 1000EFI XMR, 2014 10- Electrical Harness Compressor Diagram

#

Description
Price

1

COMPRESSOR HARNESS - Call your local BRP dealership

710003650

Unavailable

ACS

CONNECTOR_FEMALE 12 CAVITIES - Call your local BRP dealership

710003193

Unavailable

ACS

MALE WEDGE, 12 CIRCUITS - Call your local BRP dealership

710003192

Unavailable

ACS

Sealing Cap

293000052

$3.19

ACS

Female Terminal

278001665

$4.55

BN1

Heat Shrink Tubing

710002588

Unavailable

BN1

Open Barrel

278000992

$2.21

BV1

Housing

710001928

$16.86

BV1

Lock

710001222

$2.09

BV1

Seal

710001233

$3.19

BV1

Terminal

710001229

$3.19

D7

Diode

409012700

$11.12

D8

Diode

409012700

$11.12

D9

Diode

409012700

$11.12

DB1

Male Terminal Housing, 6 Circuits

710001539

$19.99

DB1

Female Lock, 6 Circuits

278000735

$3.19

DB1

Male Terminal

710001348

$12.99

DB2

Housing, 6 Circuits

278002896

$14.99

DB2

Male Wedge, 6 Circuits

515175678

$5.39

DB2

Female Terminal

278001665

$4.55

HIC8

Insulated Sheath

278001008

$3.28

HIC8

Male Terminal

278000230

$4.39

M1

Male Housing, 3 Circuits

278000273

$9.59

M1

Wire Seal

278000216

$3.19

M1

Wire Seal

278000218

$4.39

M1

Female Terminal

409007300

$0.45

PS1

Connector

710000722

$9.95

PS1

Wire Seal

710000402

$4.55

PS1

Male Terminal

409011300

$5.93

RL1

CLIP - Call your local BRP dealership

710003001

Unavailable

RL1

CONNECTOR_FEMALE 5 CAVITIES - Call your local BRP dealership

710002920

Unavailable

RL1

Lock

710002921

Unavailable

RL1

Wire Seal

278000216

$3.19

RL1

RELAY - Call your local BRP dealership

710002996

Unavailable

RL1

Wire Seal

278001065

$7.69

RL1

Wire Seal

278000218

$4.39

RL1

TERMINAL - Call your local BRP dealership

710003191

Unavailable

RL1

Female Terminal

278001977

Unavailable

1352

Dart Tie Rap 200MM

710003168

$7.09
