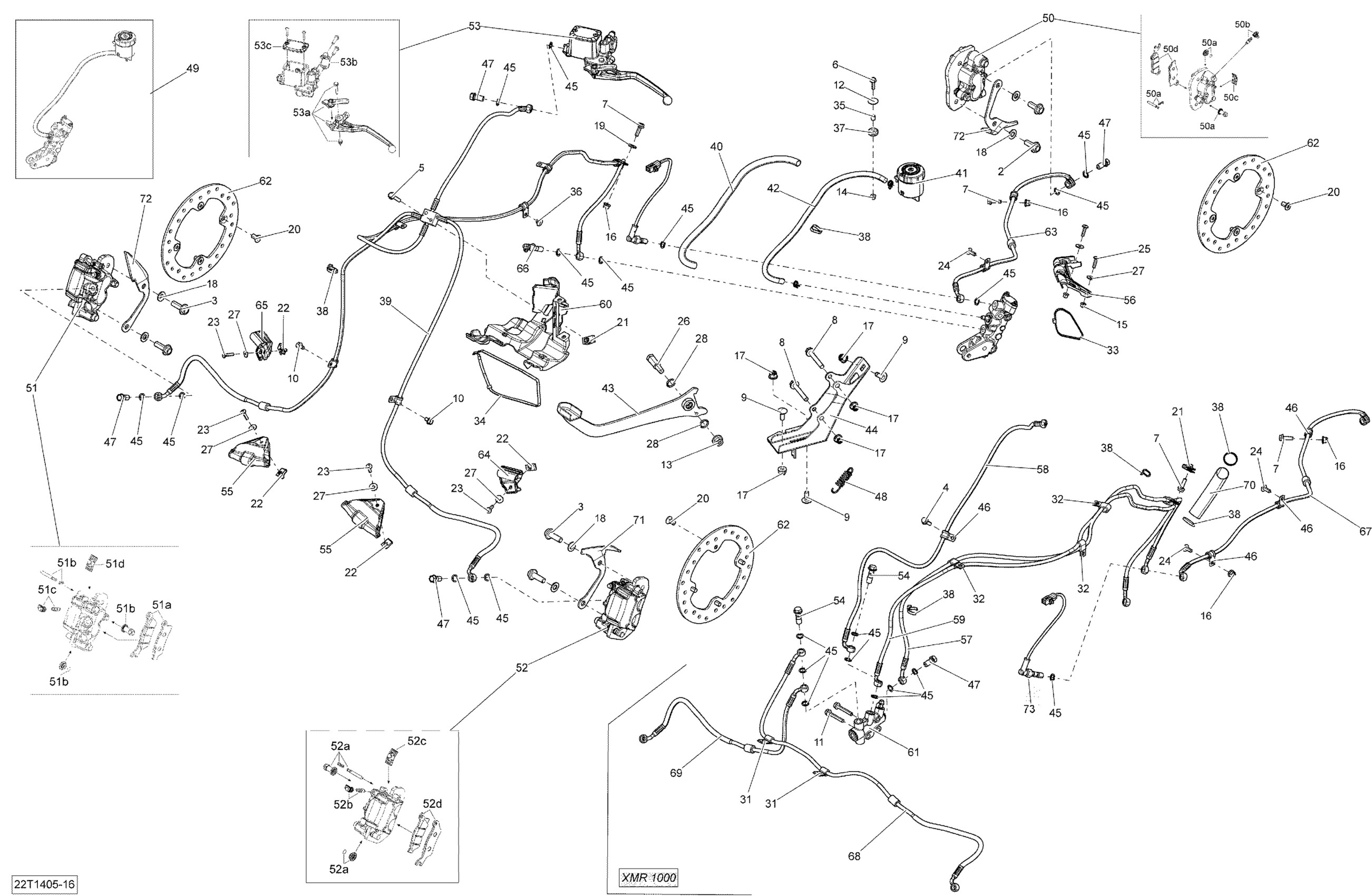

Can-Am Outlander 1000EFI XMR, 2014 06- Brakes Diagram

#

Description
Price

2

Hex. Flange Screw M10 X 20

207502046

$2.11

3

Hex. Flange Screw M10 X 25

207502546

$2.11

4

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Not Available As Spare Parts

XXX

Unavailable

6

Hex.Flange Screw M5 X 20

207652044

$1.90

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Hex. Flange Screw M8 X 55

207685544

$5.39

9

Carriage Bolt, M8 X 20

207782044

$1.90

10

Not Available As Spare Parts

XXX

Unavailable

11

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

12

Flat Washer

224060201

$1.26

13

Hex. Flange Elastic Nut M10

233201436

$2.11

14

Hex. Flange Elastic Nut M5

233251414

$1.04

15

Elastic Flange Nut M5

233251494

$2.11

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

21

Panel Nut M6 X 1.0

250100198

$2.11

22

Panel Nut M5 X 0.8

250000958

$4.23

23

Torx Screw M5 X 20

250000724

$1.69

24

Torx Screw M6 X 16

250000755

$0.87

25

Torx Screw M5 X 20

250000792

$2.11

26

Shoulder Screw M10

250000513

$6.77

27

Washer M5

250200025

$0.74

28

O-Ring

293300144

$3.82

31

Clamp

293650219

$0.90

32

Clamp

293650220

$0.90

33

Tie Wrap 368 mm

293750008

$1.04

34

Tie Rap, 533 mm

293750047

$2.09

35

Bushing

293900112

$10.06

36

Pop Rivet 3/16"

390406500

$0.88

37

Grommet

414036300

$2.79

38

Tie-Rap 180 mm

414115200

$0.11

39

Not Available As Spare Parts

XXX

Unavailable

40

Tubing 10 MM 1000MM Long

219704407

$2.79

41

Oil Tank

705601020

$39.99

42

Oil Housing Hose

705601019

$15.87

43

Deep Black, Brake Pedal

705602163

$154.99

44

Brake Pedal Bracket

705202000

$38.99

45

Copper Washer

705601628

$4.44

46

Clamp

293650256

$5.49

47

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

48

Brake Pedal Spring

705600792

$9.10

49

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

50

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

50a

Pin Set

705601016

$9.26

50b

Bleeding Screw

705601017

$6.35

50c

Retaining Spring

705601018

$7.55

50d

RH Organic Brake Pad Kit

705601014

$42.49

51

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

51a

RH Organic Brake Pad Kit

705601014

$42.49

51b

Pin Set

705601016

$9.26

51c

Bleeding Screw

705601017

$6.35

51d

Retaining Spring

705601018

$7.55

52

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

52a

Pin Set

705601016

$9.26

52b

Bleeding Screw

705601017

$6.35

52c

Retaining Spring

705601018

$7.55

52d

LH Organic Brake Pad Kit

705601015

$42.49

53

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

53a

Lever Set

705601013

$63.99

53b

Clamp And Screw Kit

507032477

$23.99

53c

Cap Set

219800096

$21.99

54

Banjo Bolt

705600958

$6.35

55

Hose Guard

705601893

$4.55

56

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

57

Outlet Hose, Master Cylinder

705601518

$69.99

58

Brake Handle Line | Includes 17 to 18

705600967

$48.49

59

Inlet Hose, Master Cylinder

705600973

$63.49

60

Front Hose Bracket

705600983

$13.71

61

Splitter

705600994

$153.49

62

Disc Brake

705600999

$67.99

63

Not Available As Spare Parts

XXX

Unavailable

64

LH Hose Bracket

705601048

$4.55

65

RH Hose Bracket

705601049

$4.55

66

Bleeding Screw

705601051

$12.16

67

RH Brake Line

705601078

$59.49

68

LH Front Hose

705601520

$45.49

69

RH Front Hose

705601521

$45.49

70

Tubing 25 MM 1000MM Long

219704402

$15.99

71

Not Available As Spare Parts

XXX

Unavailable

72

Not Available As Spare Parts

XXX

Unavailable

73

Brake Switch

705601251

$51.99
