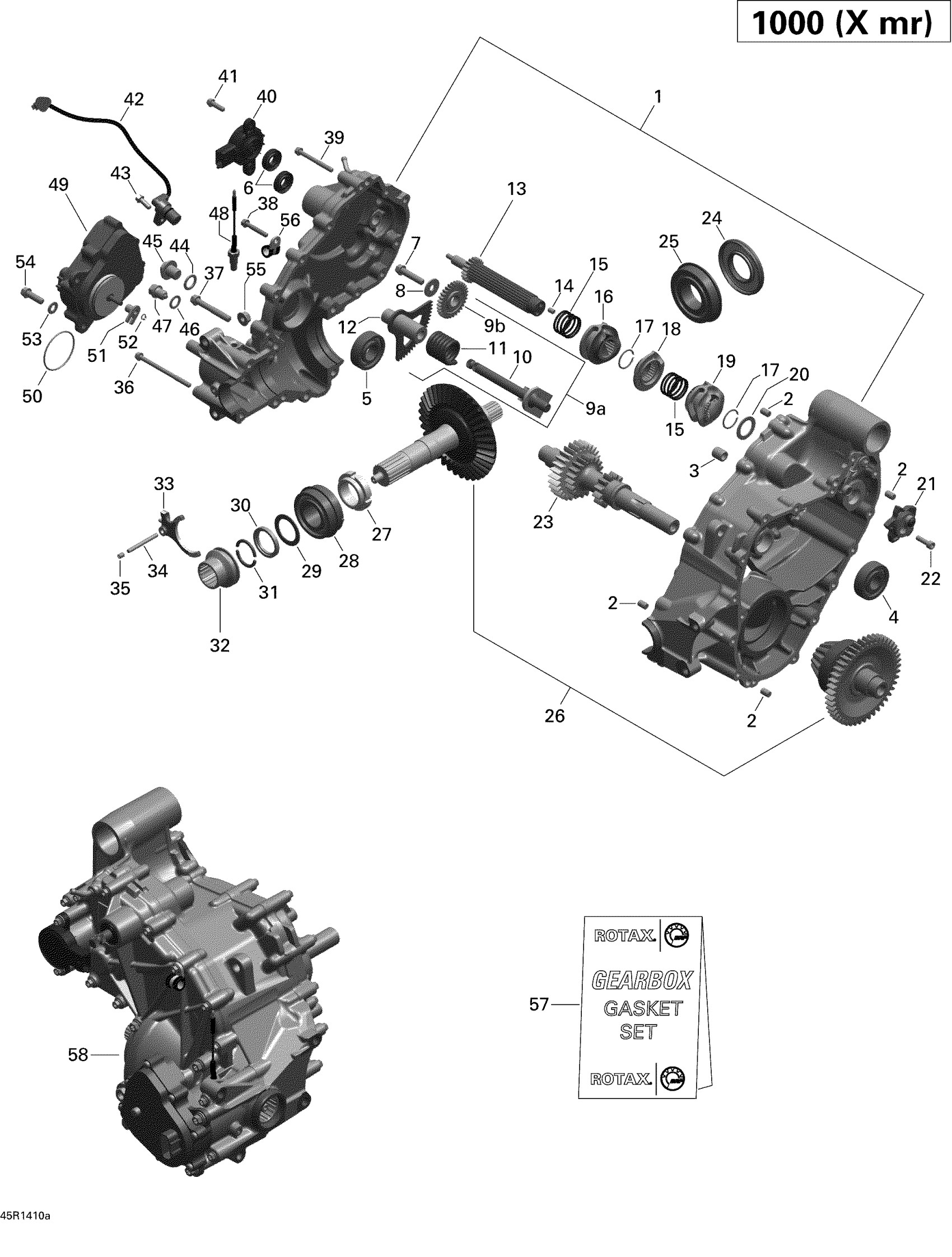

Can-Am Outlander 1000EFI XMR, 2014 05- Gear Box 1 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing

420932816

$42.49

5

Ball Bearing 6204

420932433

$23.49

6

Oil Seal

420250450

$17.04

7

Torx Flange Screw M8 X 35

420641188

$7.41

8

Plain Washer

420227937

$13.24

9a

Shift Shaft Ass'y | Includes 9a to 12

420620922

$98.99

9b

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Shift Drum Ass'y | Includes 13 to 20

420657232

$319.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Allen Screw M6 X 20

420241939

$0.73

23

Countershaft

420637705

$381.49

24

Oil Seal

420831955

$27.49

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

36

Torx Flange Screw M6 X 85

420641228

$7.41

37

Torx Flange Screw M8 X 55

420641213

$7.41

38

Torx Flange Screw M6 X 35

420440274

$1.01

39

Torx Flange Screw M6 X 55

420440702

$3.06

40

Angle Rotation Sensor

420266168

$194.99

41

Torx Flange Screw M6 X 16

420641048

$2.96

42

Speed Sensor

420265723

$109.99

43

Torx Flange Screw M6 X 16

420641048

$2.96

44

O-Ring

420650350

$12.11

45

Plug Screw M14 X 1.5

420241662

$15.81

46

Copper Washer

420250640

$0.98

47

Magnetic Drain Plug M12

420241787

$17.99

48

3 Position Switch

420640192

$42.49

49

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$284.99

50

O-Ring

293300117

$4.44

51

Shifting Fork

415129175

$16.49

52

Circlip | 4X4

293370042

$3.17

53

Flat Washer 8.4 mm

420250315

$1.15

54

Torx Flange Screw M8 X 25

420440372

$4.12

55

Hex. Nut M8

420842619

$2.35

56

CABLE CLAMP - Call your local BRP dealership

420251690

Unavailable

57

Gasket Set

420684149

$80.49

58

Gear Box

420684783

$2,859.99
