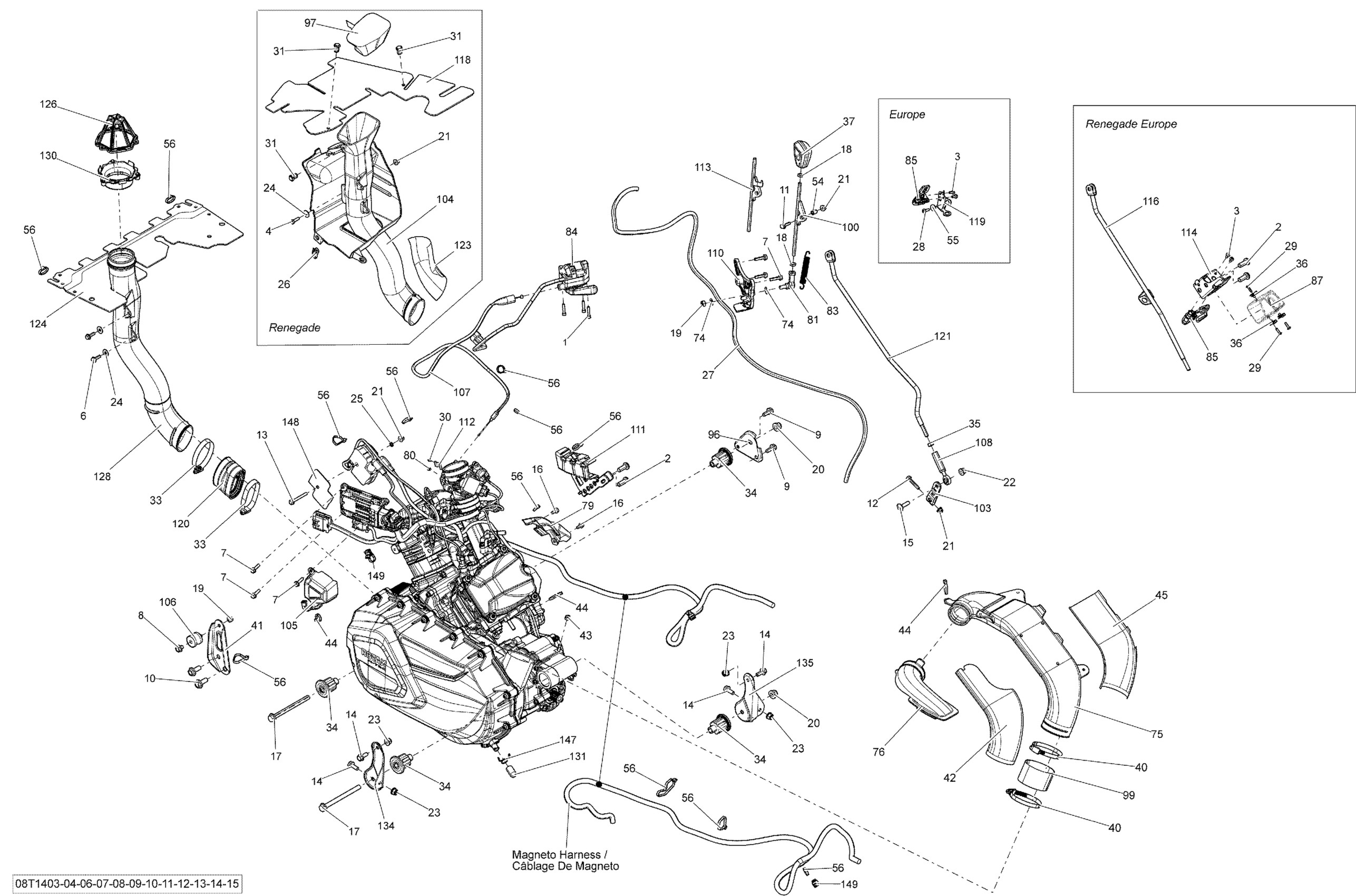

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2014 01- Engine Diagram

Socket Head Screw M5 X 25

205052588

$1.90

Screw Socket M10 X 25 | Europe

205402556

$3.91

Socket Head Screw M5 X 10

205951046

$2.43

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M6 X 25

207562544

$1.69

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M10 X 25

207602544

$1.69

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Screw M8 X 20

207682046

$1.90

Carriage Bolt M8 X 30

207783044

$2.11

Hex. Flange Screw M6 X 12

210261250

$1.90

Hex. Flange Screw M10 X 125

230602546

$7.41

Hex. Jam Nut M8

232180600

$0.67

Hex. Elastic Stop Nut M8

232581414

$0.56

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Elastic Flange Nut M8

233281416

$1.48

Flat Washer M6, Stainless

234062600

$0.77

External Serrated Lock Washer 6 mm

234461608

$1.15

Not Available As Spare Parts

XXX

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$56.99

Torx Screw K50 X 16

250000720

$1.69

Not Available As Spare Parts

XXX

Unavailable

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Norma Clamp

293650091

$11.12

Vibration Damper

707001169

$42.99

Hex. Nut M8, LH Threads

250100144

$2.00

Not Available As Spare Parts

XXX

Unavailable

Lever Trim

707003211

$8.49

Norma Gear Clamp

293650118

$13.16

Upper Engine Support

707003326

$13.99

HEAT SHIELD - Call your local BRP dealership

707001217

Unavailable

Clamp, Oetiker

293650195

$1.09

Tie Wrap 142 mm

293750002

$1.25

HEAT SHIELD - Call your local BRP dealership

707001218

Unavailable

Bushing

293900019

$7.73

Washer | DS 650 X

391301600

$0.48

Tie-Rap 180 mm

414115200

$0.11

Washer

506151252

$3.17

AIR OUTLET - Call your local BRP dealership

706600016

Unavailable

AIR OUTLET - Call your local BRP dealership

706600018

Unavailable

Cover OPS

707000410

$13.24

Cable Guide

707000434

$11.60

RH Ball Joint

707001959

$36.99

Spring

707000577

$10.99

Throttle Handle | 4X4

707000595

$214.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Engine Support

707003319

$10.99

Not Available As Spare Parts

XXX

Unavailable

Adaptor

707000789

$12.12

Shift Arm | Except Europe

707000840

$16.87

Lever

707000911

$20.49

Not Available As Spare Parts

XXX

Unavailable

Cover

707000945

$6.67

Rubber Isolator

707000949

$11.49

Throttle Cable

707000955

$13.24

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

Lever Support

707003054

$6.67

Upper Cable Support

707001955

$10.49

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

Shift Arm | Europe

707001003

$18.55

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Fixing Plate | Europe

707001042

$39.99

Flexibale Adaptor

707002585

$10.99

Shifter Rod

707002068

$33.99

Not Available As Spare Parts

XXX

Unavailable

Upper Water Deflector

707001124

$22.49

Filter CVT

707001130

Unavailable

CVT Air Inlet

707002067

$53.99

CVT Filter Base

707001171

$8.59

Plug

707001185

$1.15

LH Rear Engine Bracket

707001191

$10.99

RH Rear Engine Bracket

707001192

$10.99

Retainer Clip

707800506

$12.63

Insulator Pad

710000073

$11.12

Tie-Rap Clip

710002896

$4.39
