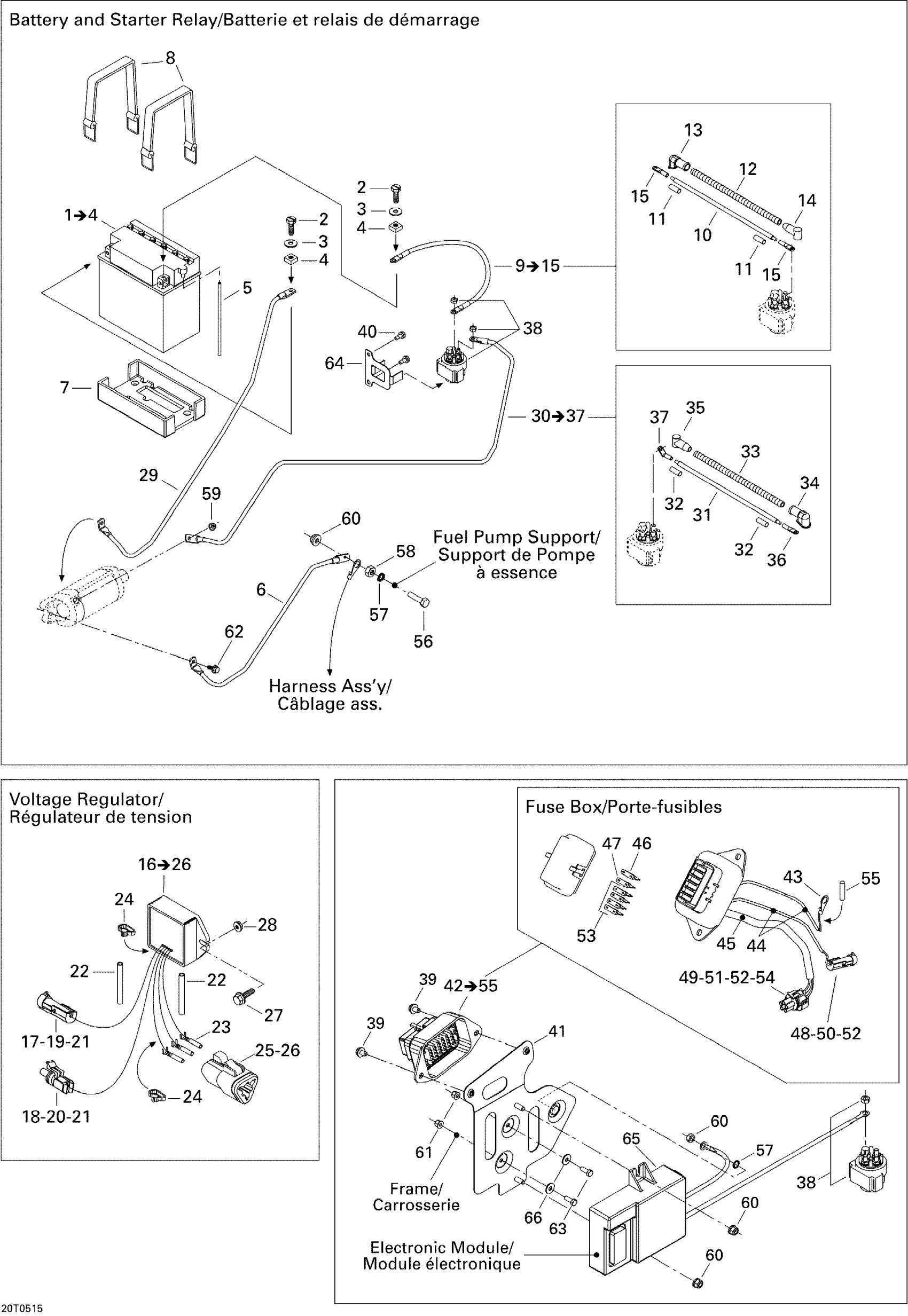

Can-Am Traxter Max CVT 650, 2005 10- Electrical System Diagram

#

Description
Price

1

Battery 19A | Includes 5 to 8

278001756

$153.36

2

Hex. Screw M6 X 16

207161644

$0.74

3

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

4

Hex. Nut M6

232061414

$0.53

5

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

6

ENGINE GROUND CABLE - Call your local BRP dealership

710000177

Unavailable

7

LOWER BATTERY PAD - Call your local BRP dealership

278001976

Unavailable

8

Retainer Strap

293850097

$11.64

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Cable Battery, no 6, meter)

278001690

Unavailable

11

Was 710000483 Heat Shrink Tubing

219704447

$78.99

12

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

13

Protector Cap

710000495

$10.99

14

Protector Cap

710000526

$10.99

15

Open Barrel

710000530

Unavailable

16

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 15 to 25

710000449

Unavailable

17

Male Terminal | XT Models

278000222

$3.19

18

Female Terminal

278000223

$3.19

19

Female Housing, 1 Circuit

278000161

$9.59

20

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

21

Wire Seal

278000218

$4.39

22

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

25

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

26

Female Lock

409207200

$4.39

27

Hex. Flange Screw M6 X 25

207662544

$0.64

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Engine Ground Cable

710000211

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cable Battery, no 6, meter)

278001690

Unavailable

32

Was 710000483 Heat Shrink Tubing

219704447

$78.99

33

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

34

Protector Cap

710000495

$10.99

35

Protector Cap

710000526

$10.99

36

Open Barrel

710000530

Unavailable

37

Terminal

710000532

Unavailable

38

Starter Relay

710000344

$126.99

39

Hex. Forming Screw M6 X 10

210261050

$1.69

40

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

41

Bracket Module, Black

710000443

Unavailable

42

FUSE HOLDER ASS'Y - Call your local BRP dealership | Includes 42 to 53

710000579

Unavailable

43

Open Barrel Terminal

278001392

$4.79

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Fuse, 30 Amperes

410917200

$3.28

47

Fuse, 20 Amperes

409003900

$3.28

48

Male Terminal

409004300

$5.61

49

Female Terminal

409007300

$0.45

50

Female Housing, 1 Circuit

278000161

$9.59

51

Wire Seal

278000218

$4.39

52

Wire Seal

710000048

$7.69

53

Fuse, 15 Amperes

278000343

$3.28

54

Female Housing, 5 Circuit

710000106

Unavailable

55

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

56

Hex. Screw M6 X 25

207162544

$1.15

57

External Serrated Lock Washer 6 mm

234461608

$1.15

58

Hex. Nut M6

232061414

$0.53

59

Hex. Flange Nut M6

233061414

$1.68

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

Hex. Flange Elastic Nut M5

233251414

$1.04

62

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

63

Hex. Screw M5 X 14

207151444

$0.87

64

Solenoid Support, Black

710000300

Unavailable

65

ELECTRONIC MODULE - Call your local BRP dealership

710000596

Unavailable

66

Flat Washer M5

234051410

$0.53
