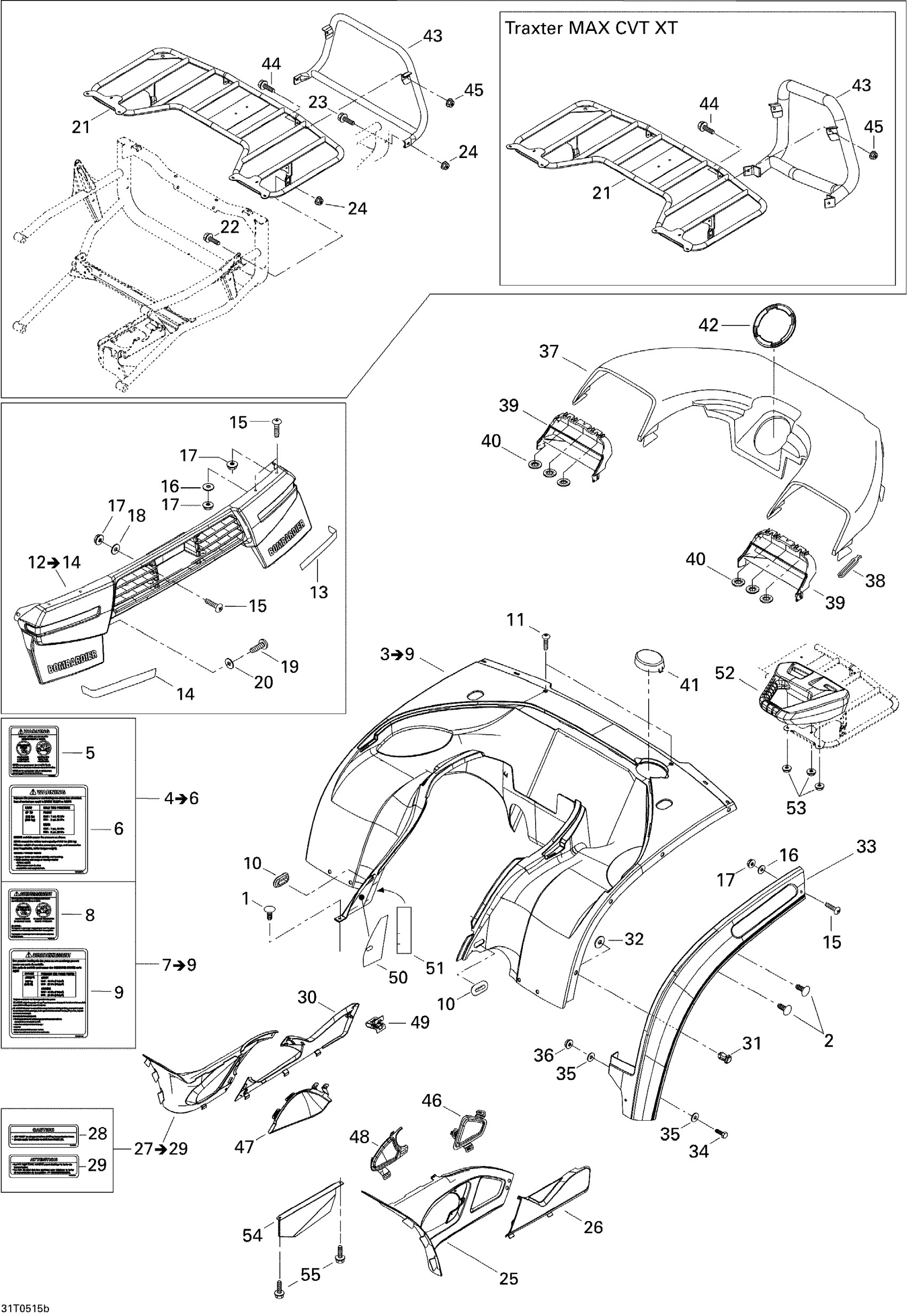

Can-Am Traxter Max CVT 650, 2005 09- Body And Accessories, Rear View Diagram

#

Description
Price

1

Black, Dart

293730011

$0.99

2

Black, Dart

293730011

$0.99

3

Rear Fender Kit, Viper Red | Includes 3 To 9

703500463

Unavailable

3

Rear Fender Kit, Laurentian Green | Includes 3 To 9

703500464

Unavailable

4

Warning Decal Ass'y | Includes 4 To 6

704900857

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oblong Grommet

705003668

$5.79

11

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

12

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

Unavailable

13

RH Rear Reflector

704900085

Unavailable

14

LH Rear Reflector

704900086

Unavailable

15

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

16

Flat Washer

224060201

$1.26

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Flat Washer

224060201

$1.26

19

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

20

Flat Washer

224061121

$0.53

21

Luggage Rack, Black

705000674

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

$1.15

23

Hex. Flange Screw M8 X 50

207685044

$1.69

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

LH Upper Panel, Viper Red

705000934

Unavailable

25

LH Upper Panel, Laurentian Green

705000935

Unavailable

26

LH Lower Panel, Viper Red

705000942

Unavailable

26

LH Lower Panel, Laurentian Green

705000943

Unavailable

27

RH Upper Panel, Viper Red | Includes 27 To 29

703500404

Unavailable

27

RH Upper Panel, Laurentian Green | Includes 27 To 29

703500493

Unavailable

28

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

29

Caution Decal, Transmission Selector | French version

704900008

Unavailable

30

RH Lower Panel, Viper Red

705000946

Unavailable

30

RH Lower Panel, Laurentian Green

705000947

Unavailable

31

Tuflok Plastic Rivet

293150230

$1.47

32

Flat Washer 8 mm

234082410

$1.47

33

LH Front Mudguard

705001593

Unavailable

33

RH Front Mudguard

705001592

Unavailable

34

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

35

Flat Washer

224060201

$1.26

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Fender Cover, Viper Red | Red

705000576

Unavailable

37

Fender Cover, Laurentian Green | Green

705000831

Unavailable

38

Windshield Latch

570023800

$4.49

39

LH Grill, Black

705000180

Unavailable

39

RH Grill, Black

705000181

Unavailable

40

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

41

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

42

CAP - Call your local BRP dealership

705000207

Unavailable

43

Rear Bumper, Black | Traxter 5 Speed STD

705000602

Unavailable

43

Rear Bumper, Black | Traxter 5 Speed XT

705001267

Unavailable

44

Hex. Flange Screw M8 X 25

207682544

$1.35

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

LH Rear Grill, Black

705000367

Unavailable

47

Black, RH Rear Grille

705000952

Unavailable

48

LH Front Grill

705000368

Unavailable

49

Edge Clip

517302785

$0.88

50

Reflective Sheet

705001297

Unavailable

51

Reflective Sheet

705000492

Unavailable

52

LH Handle

705001761

Unavailable

52

RH Handle

705001762

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

54

Heatshield

705001317

Unavailable

55

Hex. Forming Screw M6 X 10

210261050

$1.69
