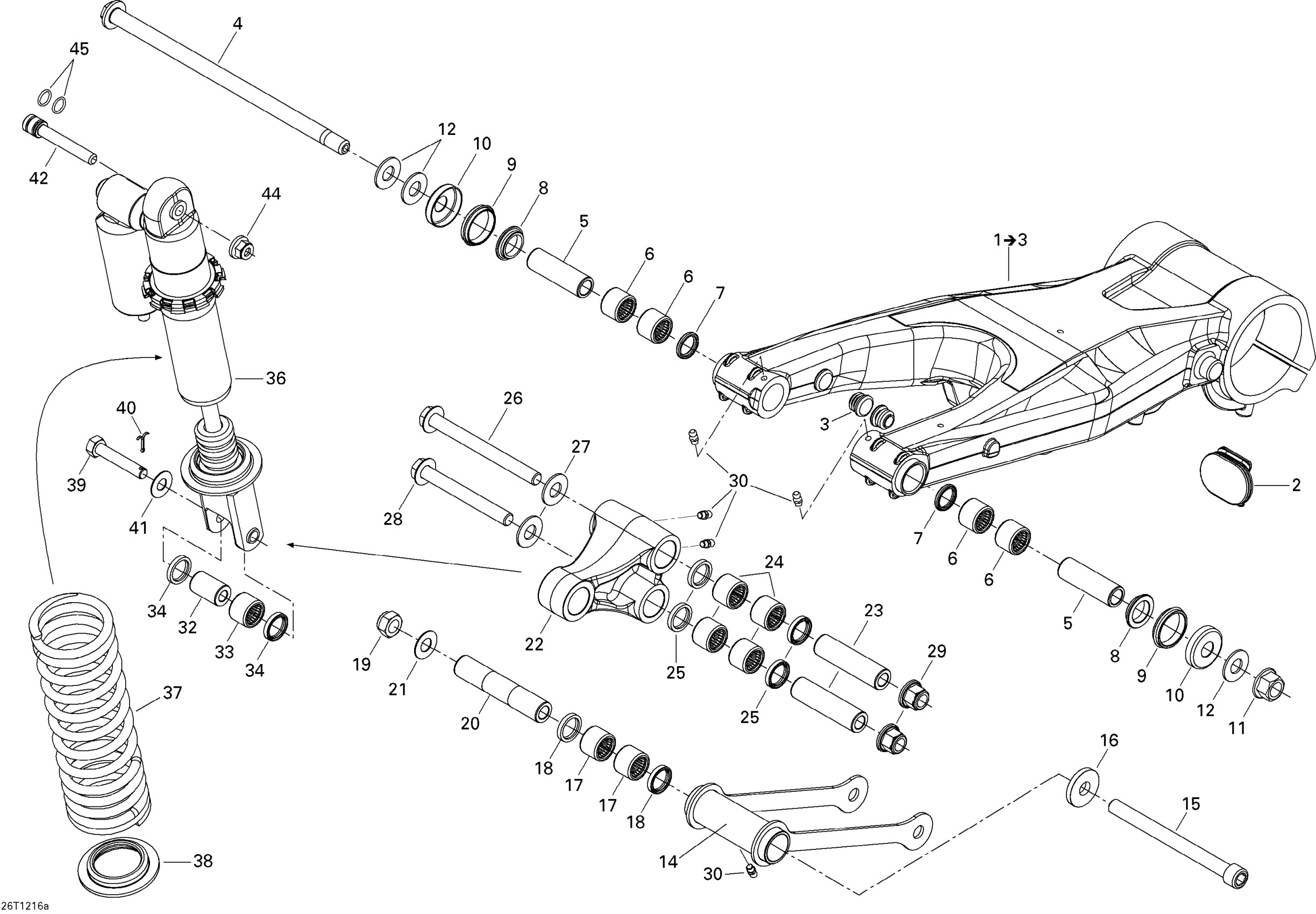

Can-Am DS 450EFI Xxc, Xmx, 2014 08- Rear Suspension Xxc Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000849

Unavailable

2

SWING ARM CAP - Call your local BRP dealership

706000459

Unavailable

3

Cap

517302716

$4.69

4

HEX. SCREW M14 X 287 - Call your local BRP dealership

250000358

Unavailable

5

BUSHING - Call your local BRP dealership

706000978

Unavailable

6

Bearing

706000447

$12.69

7

SEAL - Call your local BRP dealership

706000850

Unavailable

8

SPACER - Call your local BRP dealership

706000701

Unavailable

9

SEAL - Call your local BRP dealership

706000750

Unavailable

10

SEAL CAP - Call your local BRP dealership

706000738

Unavailable

11

Elastic Stop Nut

232571436

$2.11

12

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

14

LEVER - Call your local BRP dealership

706000445

Unavailable

15

Hexa gonal Socket Screw M12 X 140

231024087

$14.21

16

Washer

250200052

$11.06

17

Bearing

706000447

$12.69

18

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

19

Elastic Stop Nut M12

232521416

$1.69

20

BUSHING - Call your local BRP dealership

706000730

Unavailable

21

Hardened Washer

706200281

$2.85

22

SECONDARY LEVER - Call your local BRP dealership

706200465

Unavailable

23

Bushing

706000731

$15.82

24

Bearing

706000447

$12.69

25

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

26

SCREW-HEX.CAP-ISO.4014 S.GRIP - Call your local BRP dealership

230223086

Unavailable

27

Hardened Washer

706200281

$2.85

28

Hexagonal Screw M12 X 105

230020586

$7.51

29

Flange Elastic Nut

233221434

$4.44

30

Grease Fitting

250000315

$5.82

32

BUSHING - Call your local BRP dealership

706000733

Unavailable

33

Bearing

706000447

$12.69

34

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

36

Rear Shock

706000438

Unavailable

37

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000659

Unavailable

38

SPRING STOPPER - Call your local BRP dealership

706000061

Unavailable

39

BOLT M10 - Call your local BRP dealership

250000254

Unavailable

40

Cotter Pin

250400034

$2.11

41

Flat Washer

250200080

$2.11

42

SCREW - Call your local BRP dealership

706000541

Unavailable

44

Hex. Flange Elastic Nut M10

233201436

$2.11

45

O-RING - Call your local BRP dealership

504151954

Unavailable
