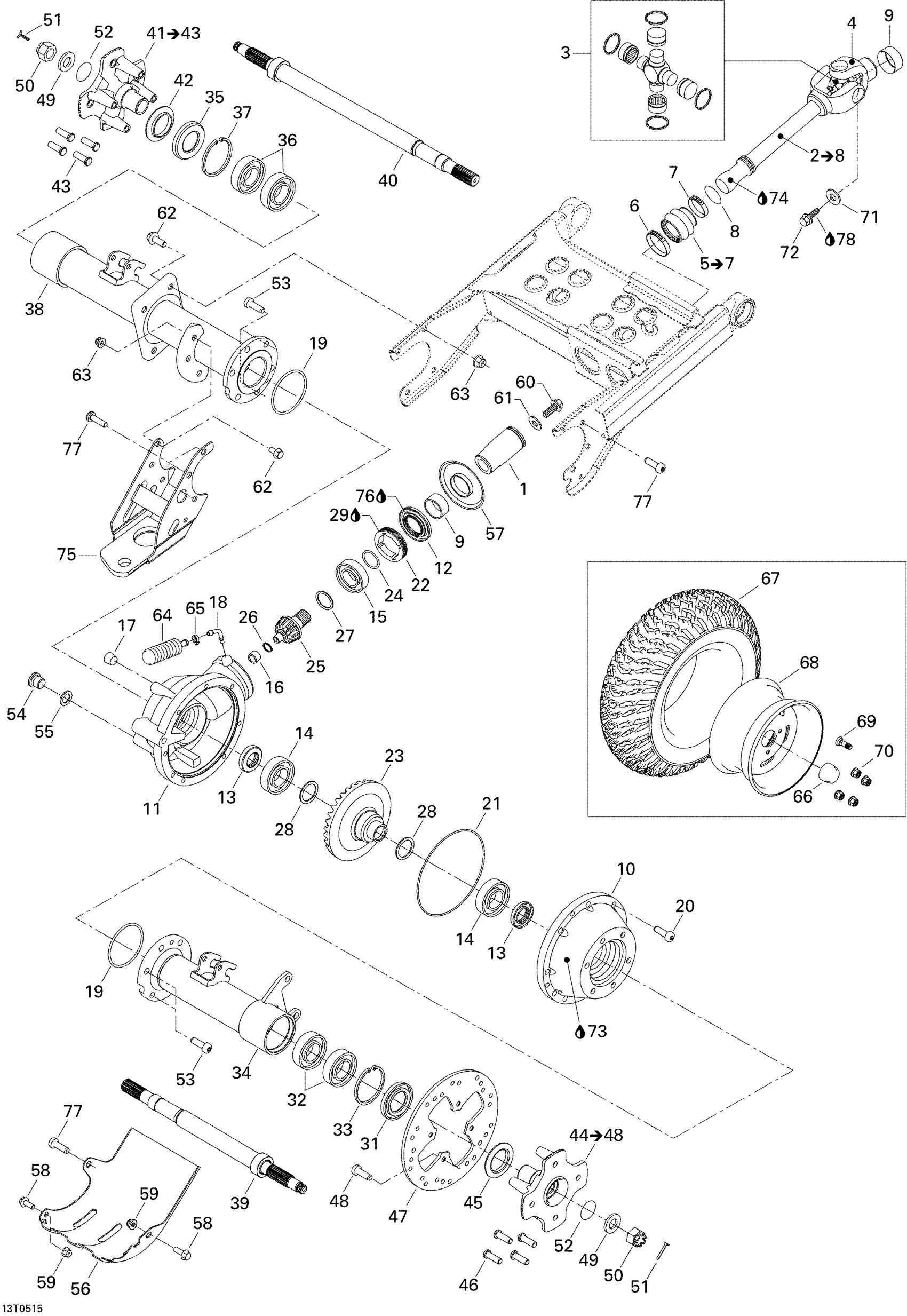

Can-Am Traxter Max CVT 650, 2005 08- Drive System, Rear Diagram

#

Description
Price

1

Front Bushing Shaft Kit | 4X4

703500678

$114.99

2

REAR DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 3 to 9

705500405

Unavailable

3

Universal Joint

715900326

$68.99

4

Fixe Yoke

715900101

$29.49

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

7

Collar | 4X4

705400148

Unavailable

8

SEALING RING - Call your local BRP dealership

705500315

Unavailable

9

Wear Ring | 4X4

705400036

$26.49

10

Rear Cover

705500175

Unavailable

11

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

12

Oil Seal

705500248

Unavailable

13

Gasket | 4X4

705401618

$18.49

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Needle Bearing | 4X4

705500261

$19.99

17

Drain Plug | 4X4

705500894

$11.49

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

O-RING - Call your local BRP dealership

705500263

Unavailable

20

Screw | 4X4

705401601

$10.49

21

Seal | 4X4

705500265

$18.76

22

Nut | 4X4

705401603

$35.99

23

GEAR, 36 TEETH - Call your local BRP dealership

705500416

Unavailable

24

O-Ring | 4X4

705500267

$7.65

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

Pinion Gear Shim 1.67 mm

705502061

$18.99

28

Shim | 4X4

705401604

$57.99

29

Loctite 243, 10 ml

293800060

$21.49

30

Not Available As Spare Part - Friction Washer

Unavailable

31

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

32

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

33

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

34

RH AXLE TUBE - Call your local BRP dealership

705500250

Unavailable

35

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

36

BALL BEARING - Call your local BRP dealership

705500251

Unavailable

37

RETAINING RING - Call your local BRP dealership

705500249

Unavailable

38

LH AXLE TUBE - Call your local BRP dealership

705500182

Unavailable

39

RH AXLE - Call your local BRP dealership

705500183

Unavailable

40

LH AXLE - Call your local BRP dealership

705500184

Unavailable

41

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

42

WEAR RING - Call your local BRP dealership

705500100

Unavailable

43

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

44

RH REAR WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 41 to 45

705500634

Unavailable

45

WEAR RING - Call your local BRP dealership

705500100

Unavailable

46

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

47

Brake Disc

705600343

Unavailable

48

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

49

WASHER - Call your local BRP dealership

250200019

Unavailable

50

Hex. Flange Castellated Nut M18

232291413

$7.98

51

Cotter Pin

250400036

$2.11

52

O-RING - Call your local BRP dealership

705500271

Unavailable

53

Torx Screw M10 X 30

250000085

Unavailable

54

Fill Level Plug | 4X4

705500504

$10.01

55

Copper Washer | 4X4

705500506

$0.45

56

Differential Protector, Black

705500565

Unavailable

57

JOINT PROTECTOR - Call your local BRP dealership

705500214

Unavailable

58

Hex. Flange Screw M8 X 16

207681644

$4.12

59

Hex. Flange Nut M8

233181414

$1.15

60

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

61

Flat Washer M10 | 4X4

250200014

$1.49

62

Hex. Flange Screw M10 X 25

207602544

$1.69

63

Hex. Flange Elastic Nut M10

233201414

$1.58

64

Rubber Bellow | 4X4

705400552

$6.14

65

Tie Wrap 94 mm | 4X4

293750001

$1.03

66

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

67

Rear Tire | XT

705500598

$139.99

67

Tire 25X10R12 MST | Traxter CVT STD

705503225

$158.99

68

Rear Rim

705500555

Unavailable

69

Rim Valve With Cap

705400193

$8.69

70

Steel Wheel Nut

250100042

$3.98

71

Washer

211200041

$3.17

72

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

73

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

74

Synthetic Grease, 400 G

293550010

Unavailable

75

Trailer Hook, Black

705500244

Unavailable

76

Synthetic Grease, 400 G

293550010

Unavailable

77

TORX SCREW M10 X 33 - Call your local BRP dealership

250000190

Unavailable

78

Loctite 271, 10 ml

293800005

$26.99
