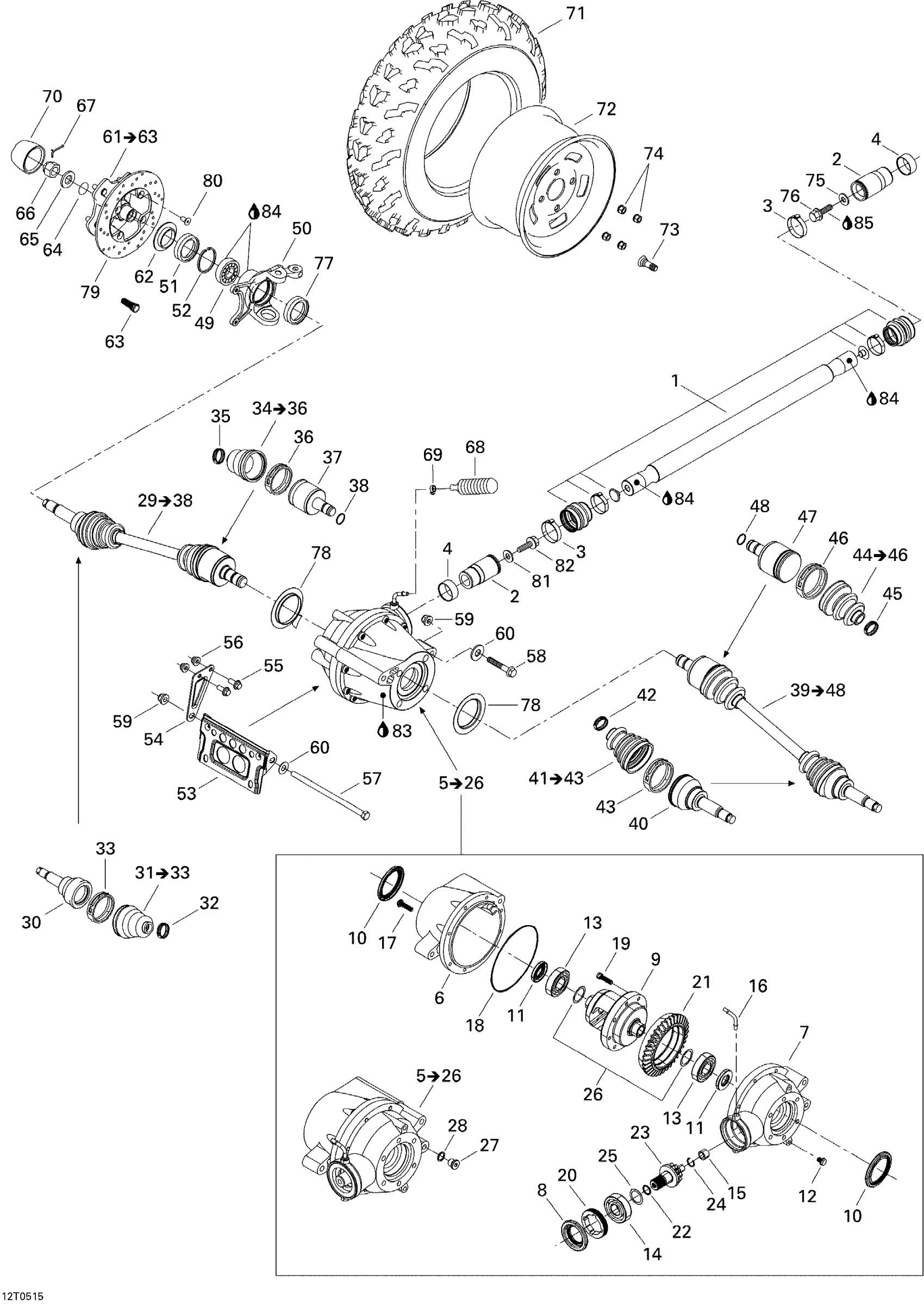

Can-Am Traxter Max CVT 650, 2005 07- Drive System, Front Diagram

#

Description
Price

1

DRIVE AXLE ASS'Y - Call your local BRP dealership

705400333

Unavailable

2

Front Bushing Shaft Kit | 4X4

703500678

$114.99

3

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

4

Wear Ring | 4X4

705400036

$26.49

5

Front Differential Ass'y | Includes 7 to 29

705400264

Unavailable

6

Front Cover

705400099

Unavailable

7

PINION REAR COVER - Call your local BRP dealership

705500515

Unavailable

8

Oil Seal | 4X4

705401481

$19.49

9

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

10

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

11

Gasket | 4X4

705401618

$18.49

12

Drain Plug | 4X4

705500894

$11.49

13

Ball Bearing | 4X4

705401606

$51.99

14

Ball Bearing | 4X4

705500260

$31.99

15

Needle Bearing | 4X4

705500261

$19.99

16

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

17

Screw | 4X4

705401601

$10.49

18

Seal | 4X4

705500265

$18.76

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

20

Nut | 4X4

705401603

$35.99

21

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

22

O-Ring | 4X4

705500267

$7.65

23

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

24

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

25

Pinion Gear Shim .022"

705500075

Unavailable

26

Shim | 4X4

705401604

$57.99

27

Fill Level Plug | 4X4

705500504

$10.01

28

Copper Washer | 4X4

705500506

$0.45

29

RH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400125

Unavailable

30

CV JOINT - Call your local BRP dealership

705400093

Unavailable

31

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

32

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

33

Clamp | 4X4

705400180

Unavailable

34

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

35

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

36

Clamp | 4X4

705400181

Unavailable

37

RH Plunging Joint

705400128

Unavailable

38

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

39

LH CV JOINT - Call your local BRP dealership | Includes 32 to 41

705400124

Unavailable

40

CV JOINT - Call your local BRP dealership

705400093

Unavailable

41

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$42.49

42

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

43

Clamp | 4X4

705400180

Unavailable

44

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$42.49

45

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

46

Clamp | 4X4

705400181

Unavailable

47

LH Plunging Joint

705400129

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$52.99

50

RH Knuckle

709400095

Unavailable

50

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

51

OIL SEAL - Call your local BRP dealership

705500099

Unavailable

52

Circlip

293370019

$4.68

53

DIFFENTIAL FRONT BRACKET - Call your local BRP dealership

705400255

Unavailable

54

RH Diffential Front Bracket

705400069

Unavailable

55

Hex. Flange Screw M8 X 20

207682044

$1.15

56

Hex. Flange Elastic Nut M8

233281414

$1.47

57

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

58

Hex. Flange Screw M10 X 65

207606536

$4.44

59

Hex. Flange Elastic Nut M10

233201436

$2.11

60

Flat Washer

250200003

Unavailable

61

Wheel Hub Ass'y | Includes 54 to 56

705400330

Unavailable

62

WEAR RING - Call your local BRP dealership

705500100

Unavailable

63

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

64

O-RING - Call your local BRP dealership

705500271

Unavailable

65

WASHER - Call your local BRP dealership

250200019

Unavailable

66

Hex. Flange Castellated Nut M18

232291413

$7.98

67

Cotter Pin

250400036

$2.11

68

Rubber Bellow | 4X4

705400552

$6.14

69

Tie Wrap 94 mm | 4X4

293750001

$1.03

70

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

71

Front Tire | XT

705400326

$134.99

72

FRONT RIM - Call your local BRP dealership

705400290

Unavailable

73

Rim Valve With Cap

705400193

$8.69

74

Steel Wheel Nut

250100042

$3.98

75

Washer

211200041

$3.17

76

HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership

207681686

Unavailable

77

Oil Seal | 4X4

293250090

$24.49

78

Wear Ring

705400016

Unavailable

79

Disc Brake 205 mm

705600342

Unavailable

80

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

81

Flat Washer M10 | 4X4

250200014

$1.49

82

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

83

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

84

Synthetic Grease, 400 G

293550010

Unavailable

85

Loctite 271, 10 ml

293800005

$26.99
