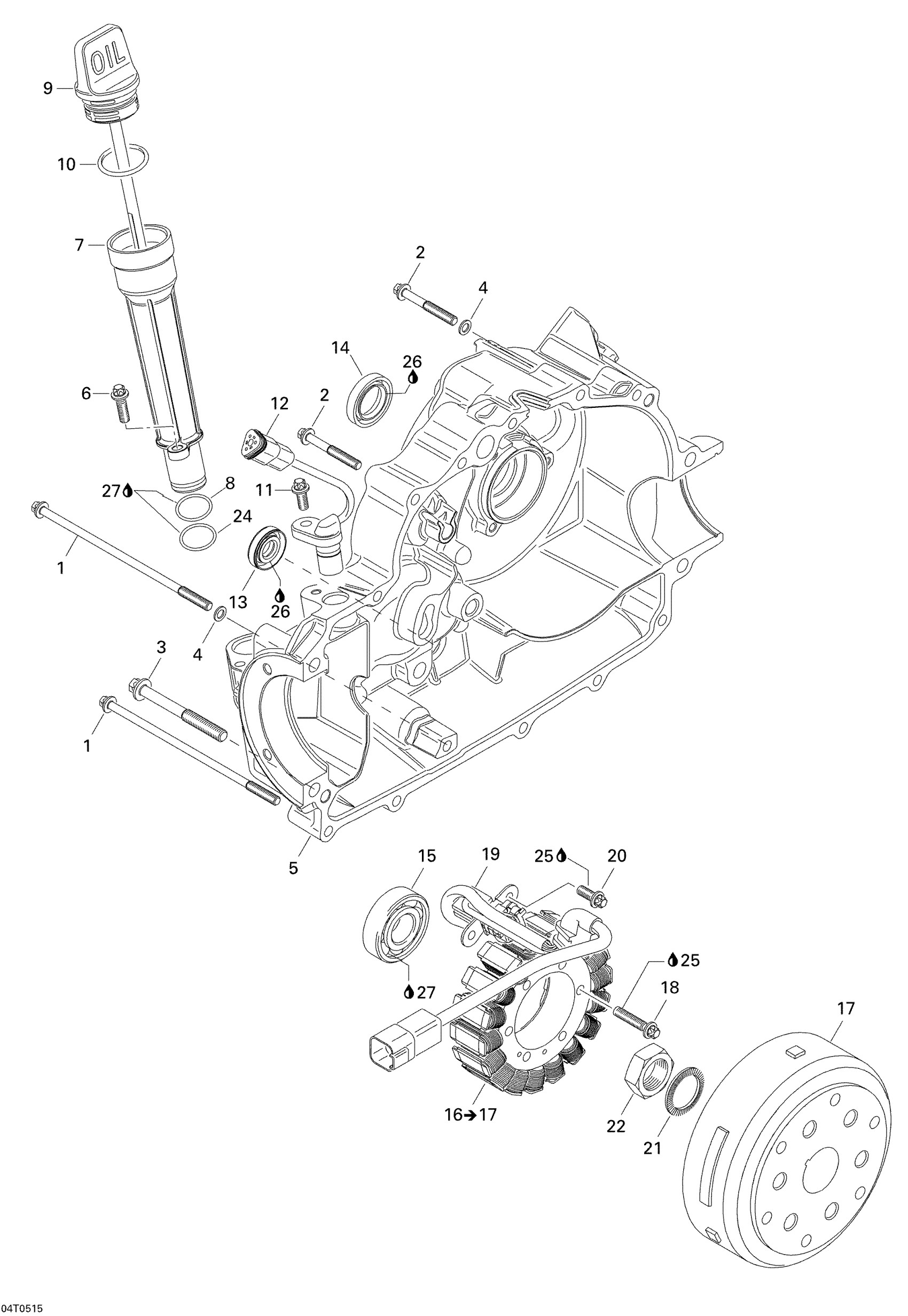

Can-Am Traxter Max CVT 650, 2005 03- Magneto Diagram

#

Description
Price

1

Torx Flange Screw M6 X 130

420440982

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Torx Flange Screw M8 X 65

420440402

$7.41

4

Sealing Washer

404146600

$2.97

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Torx Flange Screw M6 X 25

420440234

$3.06

7

Oil Filter Tube

420956981

Unavailable

8

O-RING - Call your local BRP dealership

420630430

Unavailable

9

OIL DIPSTICK - Call your local BRP dealership

420956895

Unavailable

10

O-ring

420430590

$7.65

11

Torx Flange Screw M6 X 16

420440162

$3.17

12

Speed Sensor

420265723

$109.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Generator | Includes 16 To 17

420296630

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Torx Flange Screw M6 X 35

420440274

$1.01

19

Cable Cover

420260870

Unavailable

20

Torx Flange Screw M6 X 16

420440162

$3.17

21

Disc

420845510

Unavailable

22

Hex. Nut M24

420242012

$16.33

23

Not Available As Spare Part - Friction Washer

Unavailable

24

O-Ring

420250057

$4.23

25

Loctite 243, 10 ml

293800060

$21.49

26

Grease, Super Lube

293550030

$28.99

27

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
