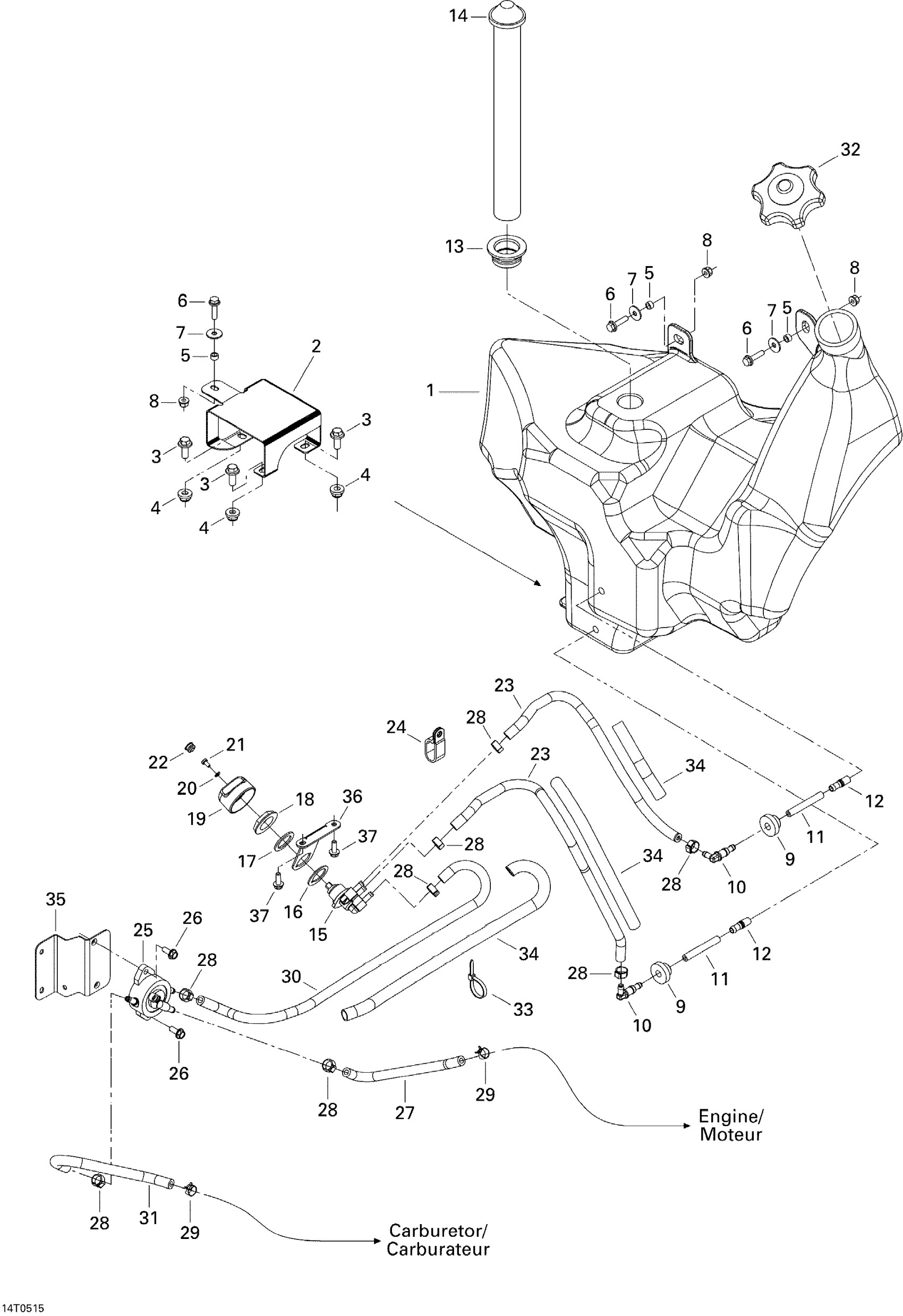

Can-Am Traxter Max CVT 650, 2005 02- Fuel Tank Diagram

Fuel Tank

709000035

Unavailable

Fuel Tank Support, Black

709000039

Unavailable

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Bushing | DS 650 X

293900104

$5.50

Hex. Flange Screw M6 X 25

207662544

$0.64

Flat Washer

224061201

$1.37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Grommet

570045500

$6.69

Elbow Male Connector

414580600

$4.23

Polyurethane Hose 10000Mm Long

219704410

$56.99

Fuel Filter

414865700

$10.99

Grommet

293720058

$11.99

FUEL GAUGE - Call your local BRP dealership

709000078

Unavailable

Fuel Valve

275500098

$43.99

GASKET - Call your local BRP dealership

293250004

Unavailable

Washer

250200015

Unavailable

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

Flat Washer 4 mm

234040600

$0.55

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

Black, Cap

275500241

$3.49

Hose

219704549

$50.99

Open Clamp

709000057

$5.39

Gas Pump

709000103

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

FORMED HOSE - Call your local BRP dealership

709000047

Unavailable

Oetiker Clamp

293650042

$3.09

Spring Clamp

414415200

$0.88

Hose

219704549

$50.99

GAS HOSE - Call your local BRP dealership

709000104

Unavailable

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 173 mm

293750009

$1.04

Was 409901800 Tubing (13 mm)

219704400

$14.49

Support Pump, Black

709000111

Unavailable

Valve Support, Black

709000070

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67
