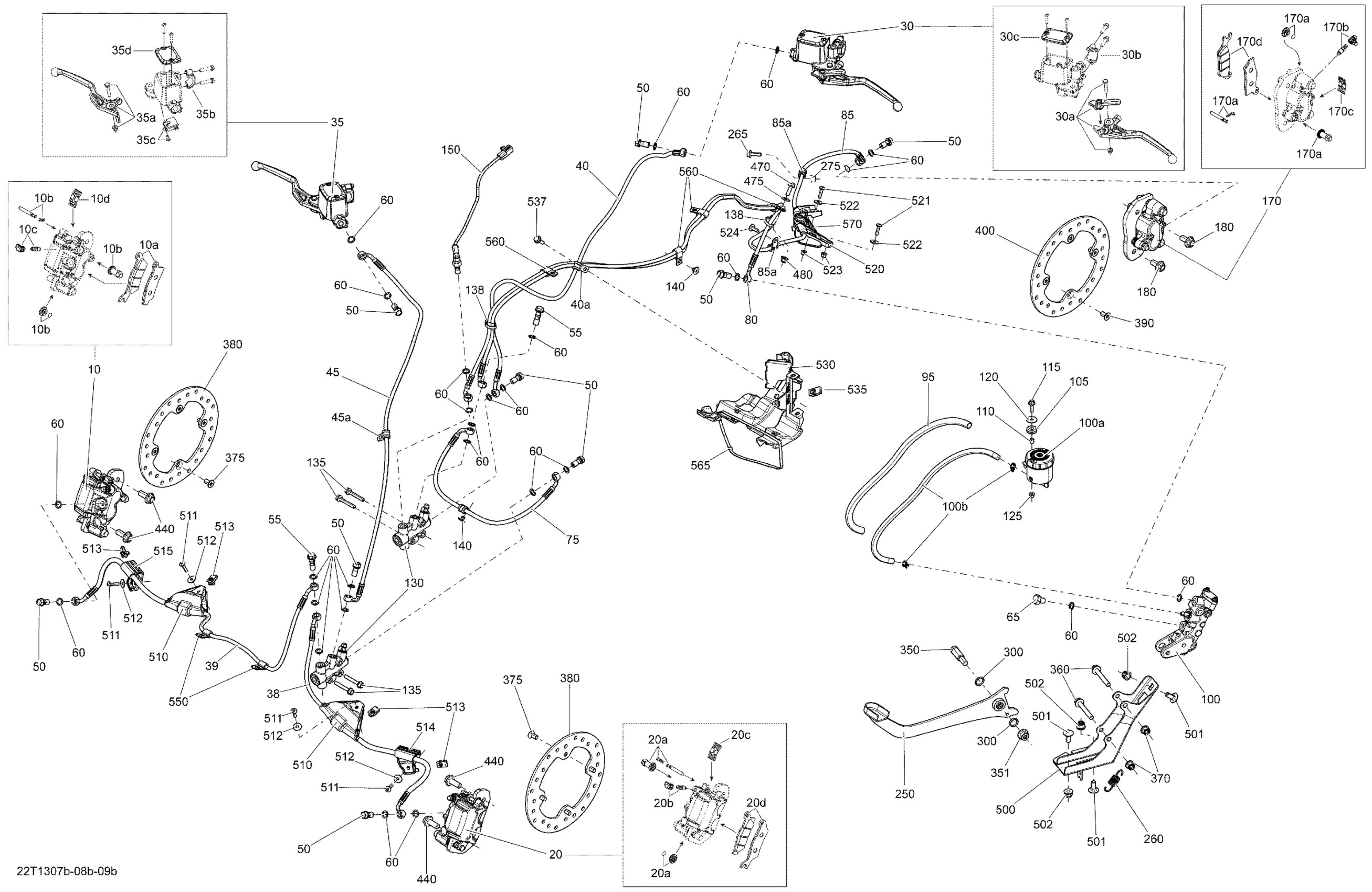

Can-Am Renegade STD, XXC, 1000 EFI, 2013 06- Brakes Europe Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10a

RH Organic Brake Pad Kit

705601014

$42.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20a

Pin Set

705601016

$9.26

20b

Bleeding Screw

705601017

$6.35

20c

Retaining Spring

705601018

$7.55

20d

LH Organic Brake Pad Kit

705601015

$42.49

30

LH Front Master Cylinder Ass'y | Includes 11 to 14

705601431

$229.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30c

Cap Set

219800096

$21.99

35

RH Front Master Cylinder Ass'y | Includes 15 to 19

705601432

$294.99

35a

Lever Set

705601011

$71.99

35b

Clamp And Screw Kit

507032477

$23.99

35c

Kit Switch

705601012

$56.99

35d

Cap Set

219800096

$21.99

38

LH Front Brake Hose

705601523

$55.99

39

RH Front Brake Hose

705601522

$55.99

40

LH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 22 to 23

705601525

Unavailable

40a

Clamp

293650256

$5.49

45

RH BRAKE HANDLE LINE ASS'Y - Call your local BRP dealership | Includes 24 to 25

705600970

Unavailable

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt

705600958

$6.35

60

Copper Washer

705601628

$4.44

65

Hex. Screw M10 X 14, Scotch Grip

250000163

$3.29

75

BRAKE LINE - Call your local BRP dealership

705600981

$34.99

80

OUTLET HOSE, MASTER CYLINDER - Call your local BRP dealership

705600980

$59.99

85

RH REAR BRAKE LINE ASS'Y - Call your local BRP dealership | Includes 32 to 33

705600971

Unavailable

85a

Clamp

293650256

$5.49

95

Tubing 10 MM 1000MM Long

219704407

$2.79

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.79

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.90

120

Flat Washer

224060201

$1.26

125

Hex. Flange Elastic Nut M5

233251414

$1.04

130

Splitter

705600994

$153.49

135

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

138

Tie-Rap 180 mm

414115200

$0.11

140

Pop Rivet 3/16"

390406500

$0.88

150

Brake Switch

705601250

$59.49

170

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

170a

Pin Set

705601016

$9.26

170b

Bleeding Screw

705601017

$6.35

170c

Retaining Spring

705601018

$7.55

170d

RH Organic Brake Pad Kit

705601014

$42.49

180

Hex. Flange Screw M10 X 20

207502046

$2.11

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.00

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.77

351

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Hex. Flange Screw M8 X 55

207685544

$5.39

370

Hex. Flange Elastic Nut M8

233281414

$1.47

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

380

Disc Brake

705600999

$67.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Disc Brake

705600999

$67.99

440

Hex. Flange Screw M10 X 25

207502546

$2.11

470

Hex. Flange Screw M6 X 20

207662044

$2.00

475

Flat Washer 6 mm

234062410

$0.77

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.90

502

Hex. Flange Elastic Nut M8

233281414

$1.47

510

Hose Guard

705601893

$4.55

511

Torx Screw M5 X 20

250000724

$1.69

512

Washer M5

250200025

$0.74

513

Panel Nut M5 X 0.8

250000958

$4.23

514

LH Hose Bracket

705601048

$4.55

515

RH Hose Bracket

705601049

$4.55

520

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

521

Torx Screw M5 X 20

250000792

$2.11

522

Washer M5

250200025

$0.74

523

Elastic Flange Nut M5

233251494

$2.11

524

Torx Screw M6 X 16

250000755

$0.87

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.11

537

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

550

Clamp

293650219

$0.90

560

Clamp

293650220

$0.90

565

Tie Rap, 533 mm

293750047

$2.09

570

Tie Wrap 368 mm

293750008

$1.04
