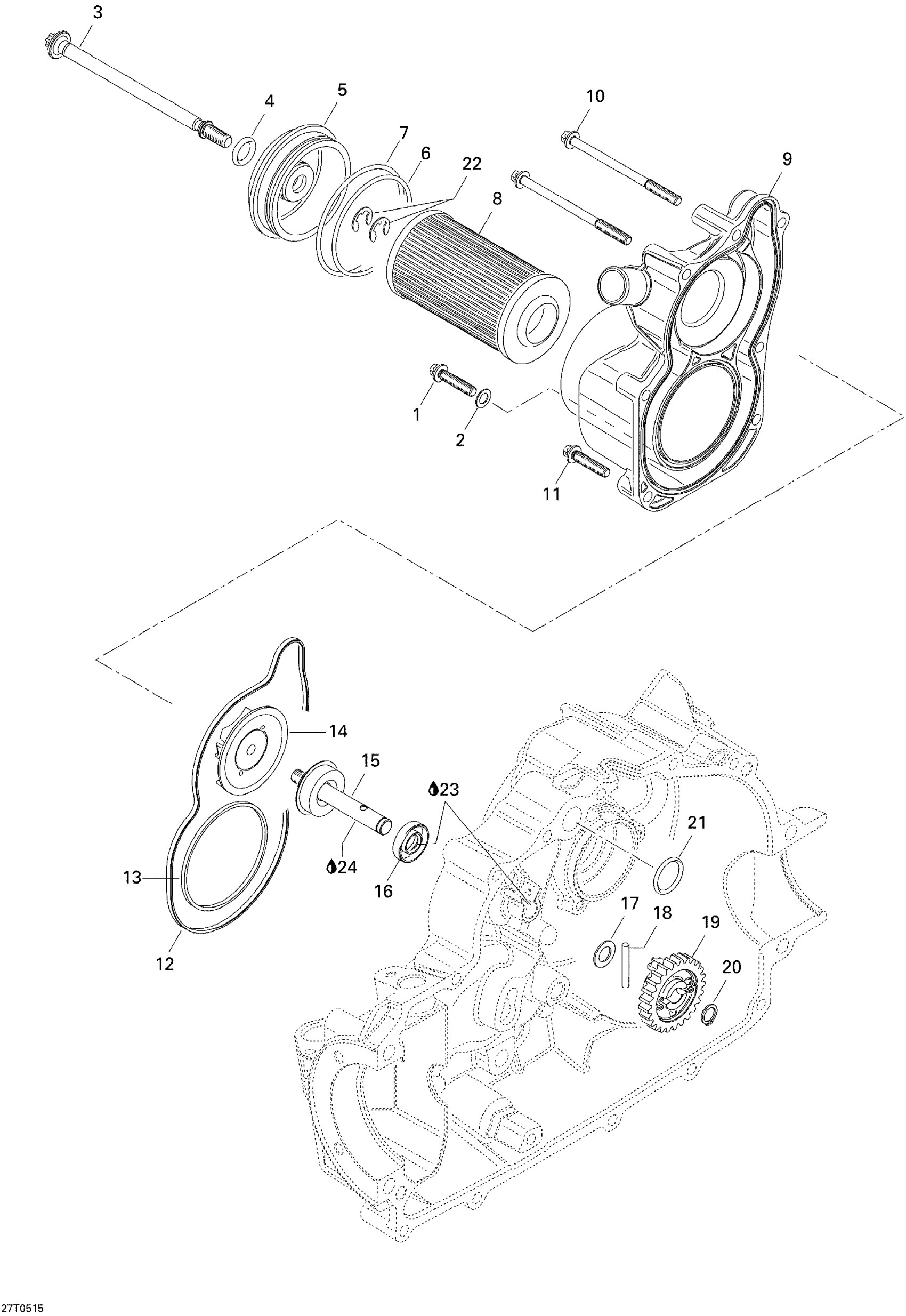

Can-Am Traxter Max CVT 650, 2005 01- Engine Cooling Diagram

#

Description
Price

1

Torx Flange Screw M6 X 35

420440274

$1.01

2

Sealing Washer

404146600

$2.97

3

Oil Filter Screw Kit

295501207

$39.99

4

O-Ring

420950860

$3.91

5

OIL FILTER COVER - Call your local BRP dealership

420610326

Unavailable

6

O-Ring

420230923

$3.17

7

O-Ring

420850500

$3.17

8

Oil Filter

420956741

$13.77

9

WATER PUMP HOUSING - Call your local BRP dealership

420222651

Unavailable

10

Torx Flange Screw M6 X 85

420641228

$7.41

11

Torx Flange Screw M6 X 35

420440274

$1.01

12

GASKET - Call your local BRP dealership

420630100

Unavailable

13

GASKET - Call your local BRP dealership

420630170

Unavailable

14

WATER IMPELLER - Call your local BRP dealership

420222540

Unavailable

15

Waterpump Shaft

420220827

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Thrust Washer

420827590

$4.01

18

Needle Pin

420232431

$4.39

19

Idle Gear, 25 Teeth

420635191

$17.05

20

Snap Ring

420245330

$1.79

21

Not Available As Spare Part - Friction Washer

Unavailable

22

RETAINING RING - Call your local BRP dealership

420845240

Unavailable

23

Grease, Super Lube

293550030

$28.99

24

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
