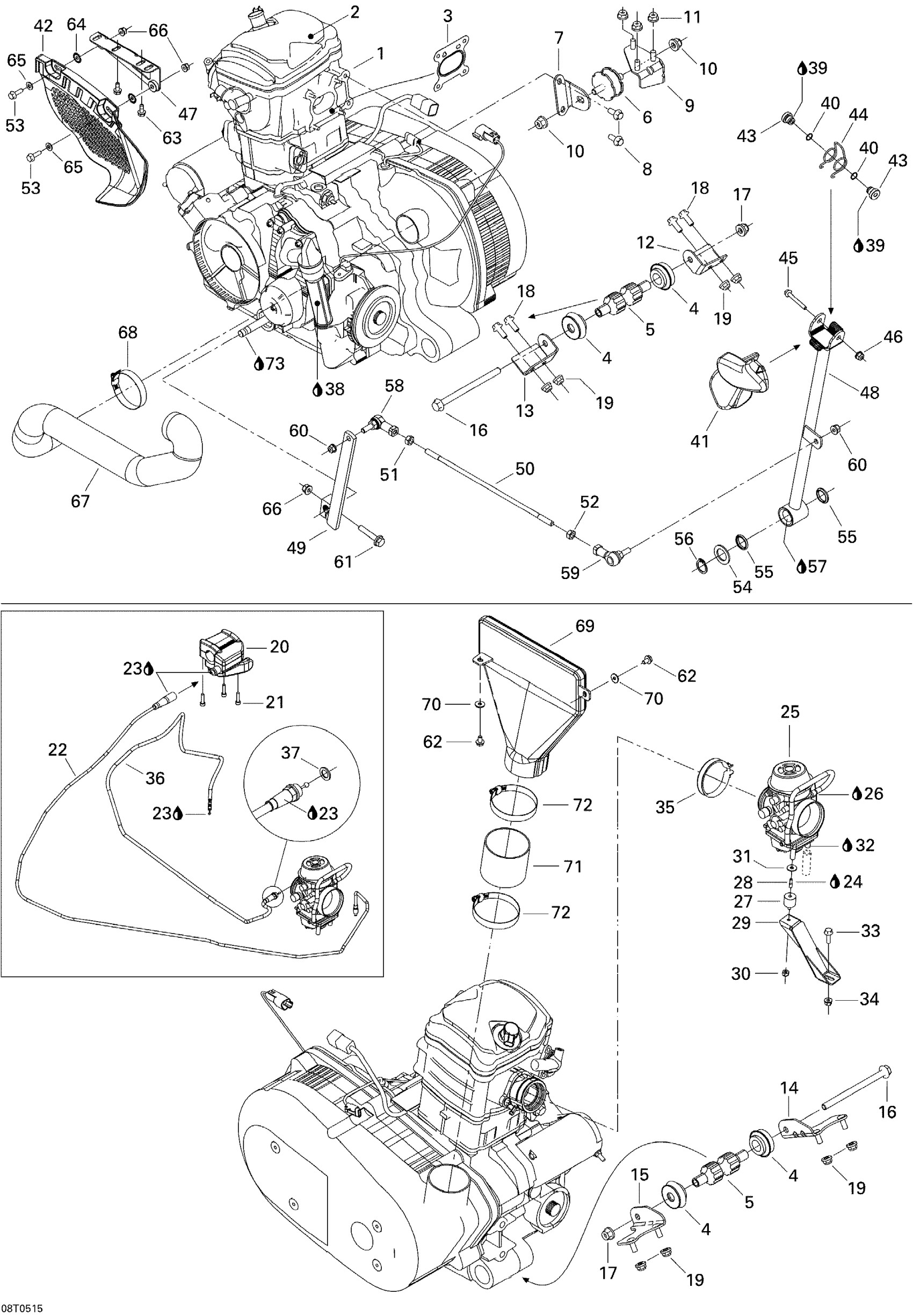

Can-Am Traxter Max CVT 650, 2005 01- Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 Stroke Engine «610» | Traxter 650 CVT, Includes 1 To 3

707000358

Unavailable

2

Valve Cover

420660201

Unavailable

3

GASKET - Call your local BRP dealership

420950680

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

$99.99

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

Unavailable

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

$5.29

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Hex. Flange Screw M8 X 20

207682044

$1.15

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

THROTTLE HANDLE - Call your local BRP dealership | 2X4

707000370

Unavailable

21

Socket Head Screw M5 X 25

205052588

$1.90

22

THROTTLE CABLE - Call your local BRP dealership

707000311

Unavailable

23

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT

707200186

Unavailable

26

Glue Tube, Loctite 454, 20 G

413708300

$60.99

27

Anti-vibration Mount

707000248

Unavailable

28

THREADED INSERT - Call your local BRP dealership

707000250

Unavailable

29

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

30

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

31

Washer | DS 650 X

391301600

$0.48

32

Glue Tube, Loctite 454, 20 G

413708300

$60.99

33

Hex. Flange Screw M6 X 20

207662044

$2.00

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Gemi Clamp

293650157

Unavailable

36

Choke Cable

707000334

Unavailable

37

O-RING - Call your local BRP dealership

293300075

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Synthetic Grease, 400 G

293550010

Unavailable

40

O-RING - Call your local BRP dealership

293300081

Unavailable

41

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

42

Transmission Guide

707000139

Unavailable

43

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

44

LEVER SPRING - Call your local BRP dealership

705500283

Unavailable

45

Hex. Flange Screw M6 X 50

207665044

$4.12

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Guide Support, Black

707000297

Unavailable

48

LOWER LEVER, BLACK - Call your local BRP dealership

707000335

Unavailable

49

Lower Lever, Black

707000338

Unavailable

50

THREADED ROD - Call your local BRP dealership

707000343

Unavailable

51

Hex. Nut M6

232061414

$0.53

52

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

53

Hex. Flange Screw M6 X 25

207662544

$0.64

54

WASHER - Call your local BRP dealership

503107800

Unavailable

55

O-RING - Call your local BRP dealership

293300053

Unavailable

56

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

57

Synthetic Grease, 400 G

293550010

Unavailable

58

RH BALL JOINT - Call your local BRP dealership

707000142

Unavailable

59

LH BALL JOINT - Call your local BRP dealership

707000545

$45.99

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

62

Hex. Forming Screw M6 X 10

210261050

$1.69

63

Hex. Flange Screw M6 X 16

210261650

$1.67

64

Lock Washer Serrated M6

250200041

$1.15

65

Flat Washer

250200082

$0.42

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Air Intake

707000332

Unavailable

68

Tridon Clamp

293650023

$13.49

69

Exhaust

707000153

Unavailable

70

Flat Washer

224061201

$1.37

71

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

72

Tridon Clamp

293650064

$8.29

73

Loctite 271, 10 ml

293800005

$26.99
