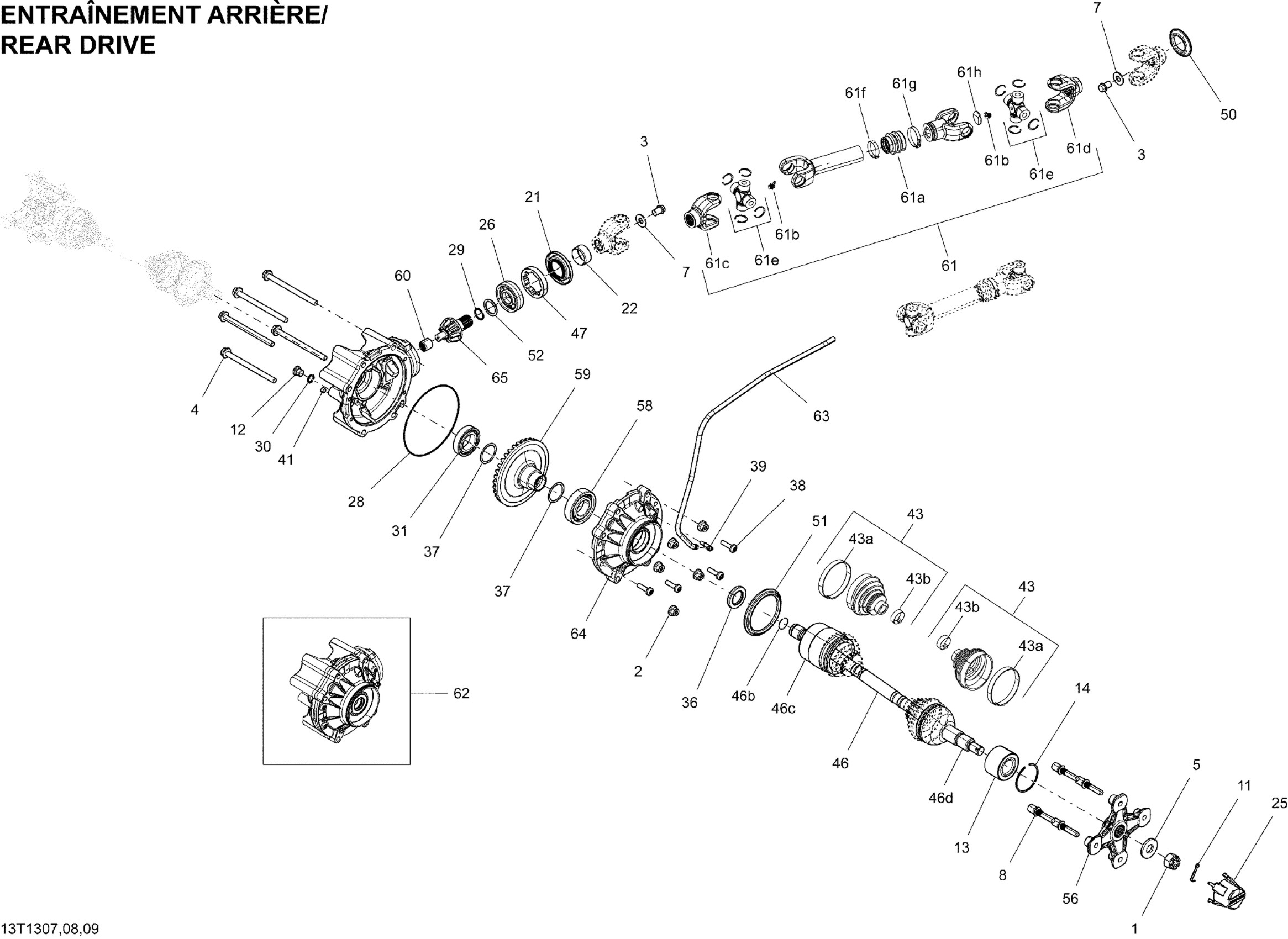

Can-Am Renegade 800R EFI STD & XXC, 2013 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$7.98

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

3

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

4

Hex. Flange Screw M10 X 135

250001041

$5.59

5

Conical Spring Washer M18

250200171

$7.65

7

Flat Washer M12

250200102

$2.11

8

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

11

Cotter Pin

250400036

$2.11

12

Fill Level Plug | 4X4

705500504

$10.01

13

Ball Bearing

293350150

$52.99

14

Circlip

293370019

$4.68

21

Oil Seal | 4X4

705401481

$19.49

22

Wear Ring | 4X4

705400036

$26.49

25

Wheel Cap

705400928

$10.49

26

Ball Bearing | 4X4

705500260

$31.99

28

Seal | 4X4

705500265

$18.76

29

O-Ring | 4X4

705500267

$7.65

30

Copper Washer | 4X4

705500506

$0.45

31

Ball Bearing

705502737

$48.49

36

Oil Seal

705501996

$21.99

37

Differential Shim 0.02 mm

705502060

$13.76

38

Screw | 4X4

705401601

$10.49

39

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

41

Drain Plug | 4X4

705500894

$11.49

43

Boot Kit

705501864

$42.49

43a

Oetiker Clamp, 82.1 mm

715900241

$10.33

43b

Oetiker Clamp, 27.3 mm

715900242

$10.33

46

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

46

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

46b

Circlip

705501781

$6.50

46c

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

46d

CV Joint

705501776

$259.49

47

Nut

705502059

$32.99

50

Protector

705501123

$7.55

51

Wear Ring

705501124

$7.90

52

Pinion Gear Shim

705501162

$16.49

52

Pinion Gear Shim .022"

705500075

Unavailable

52

Pinion Gear Shim 1.67 mm

705502061

$18.99

56

Wheel Hub Ass'y

705501716

$105.99

58

Ball Bearing

705502738

$59.49

59

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

60

Needle Bearing

705501408

$69.99

61

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

61a

Rubber Boot

715900118

$14.30

61b

Grease Fitting

715900184

$5.24

61c

Fixe Yoke

715900101

$29.49

61d

Fixe Yoke

715900101

$29.49

61e

Universal Joint

715900326

$68.99

61f

Oetiker Gear Clamp 36.1MM

509000045

$8.29

61g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

61h

COVER - Call your local BRP dealership

715900187

Unavailable

62

Rear Differential Ass'y | Includes 12 to 31

705501419

Unavailable

63

Polyurethane Hose 10000Mm Long

219704410

$56.99

64

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

65

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99
