Description

Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

Cylinder Ass'y | Includes 2 To 3

420923947

Unavailable

3

Drive Pin 5 X 10

420929650

$1.68

4

Piston Assy | Up to engine M6059518, Traxter 650 CVT, Includes 4 To 5

420890085

Unavailable

4

PISTON ASS'Y, 99.96 MM - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT, Includes 4 To 5

420890082

Unavailable

4

PISTON ASS'Y, OVERSIZE, 100.21 MM - Call your local BRP dealership | Traxter 650 CVT, Includes 4 To 5

420888868

Unavailable

5

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$65.99

5

PISTON RING SET - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT

420891124

Unavailable

5

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$71.49

6

Piston Pin

420216250

$23.99

7

Circlip

420845580

$2.64

8

Chain Tensioner Housing

420236510

$11.63

9

O-Ring

420430373

$3.17

10

Torx Flange Screw M6 X 25

420440234

$3.06

11

Chain Tensioner Plunger

420236521

$14.83

12

Spring

420238120

$7.41

13

Plug Screw

420641150

$7.41

14

O-Ring

420250890

$3.06

15

Engine Gasket Set

420684120

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

18

CRANKSHAFT ASS'Y - Call your local BRP dealership | Traxter 650 CVT

420296644

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

CONNECTING ROD - Call your local BRP dealership | Traxter 650 CVT, Includes 20 To 21

420917525

Unavailable

21

Connecting rod Screw M10 X 1

420640991

$11.63

22

Half-Bearing

420933523

$19.19

23

Woodruff Key 4 X 5

420246570

$3.38

24

SHIM - Call your local BRP dealership

420627363

Unavailable

25

Shim

420627502

Unavailable

26

BALANCING SHAFT - Call your local BRP dealership

420220785

Unavailable

27

PLUG - Call your local BRP dealership

420660300

Unavailable

28

Sealant Loctite 648

219703000

$45.99

29

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

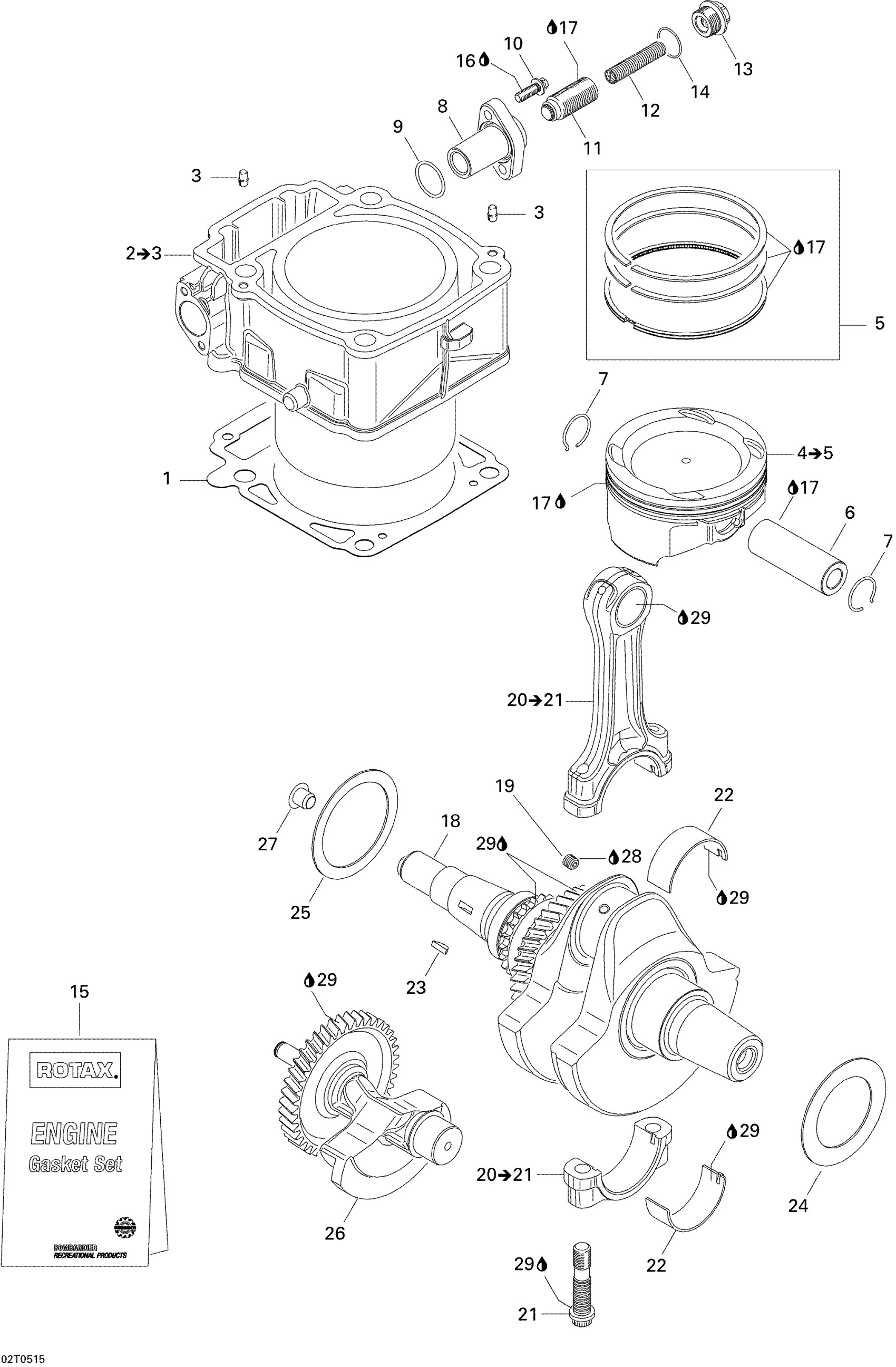

Can-Am Traxter Max CVT 650, 2005 01- Crankshaft, Piston And Cylinder Diagram

GASKET - Call your local BRP dealership

Cylinder Ass'y | Includes 2 To 3

Drive Pin 5 X 10

Piston Assy | Up to engine M6059518, Traxter 650 CVT, Includes 4 To 5

PISTON ASS'Y, 99.96 MM - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT, Includes 4 To 5

PISTON ASS'Y, OVERSIZE, 100.21 MM - Call your local BRP dealership | Traxter 650 CVT, Includes 4 To 5

Piston Set Ring, Standard | Traxter 500 CVT

PISTON RING SET - Call your local BRP dealership | Starting from engine M6059519, Traxter 650 CVT

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

Piston Pin

Circlip

Chain Tensioner Housing

O-Ring

Torx Flange Screw M6 X 25

Chain Tensioner Plunger

Spring

Plug Screw

O-Ring

Engine Gasket Set

Loctite 243, 10 ml

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

CRANKSHAFT ASS'Y - Call your local BRP dealership | Traxter 650 CVT

Not Available As Spare Part - Friction Washer

CONNECTING ROD - Call your local BRP dealership | Traxter 650 CVT, Includes 20 To 21

Connecting rod Screw M10 X 1

Half-Bearing

Woodruff Key 4 X 5

SHIM - Call your local BRP dealership

Shim

BALANCING SHAFT - Call your local BRP dealership

PLUG - Call your local BRP dealership

Sealant Loctite 648

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
