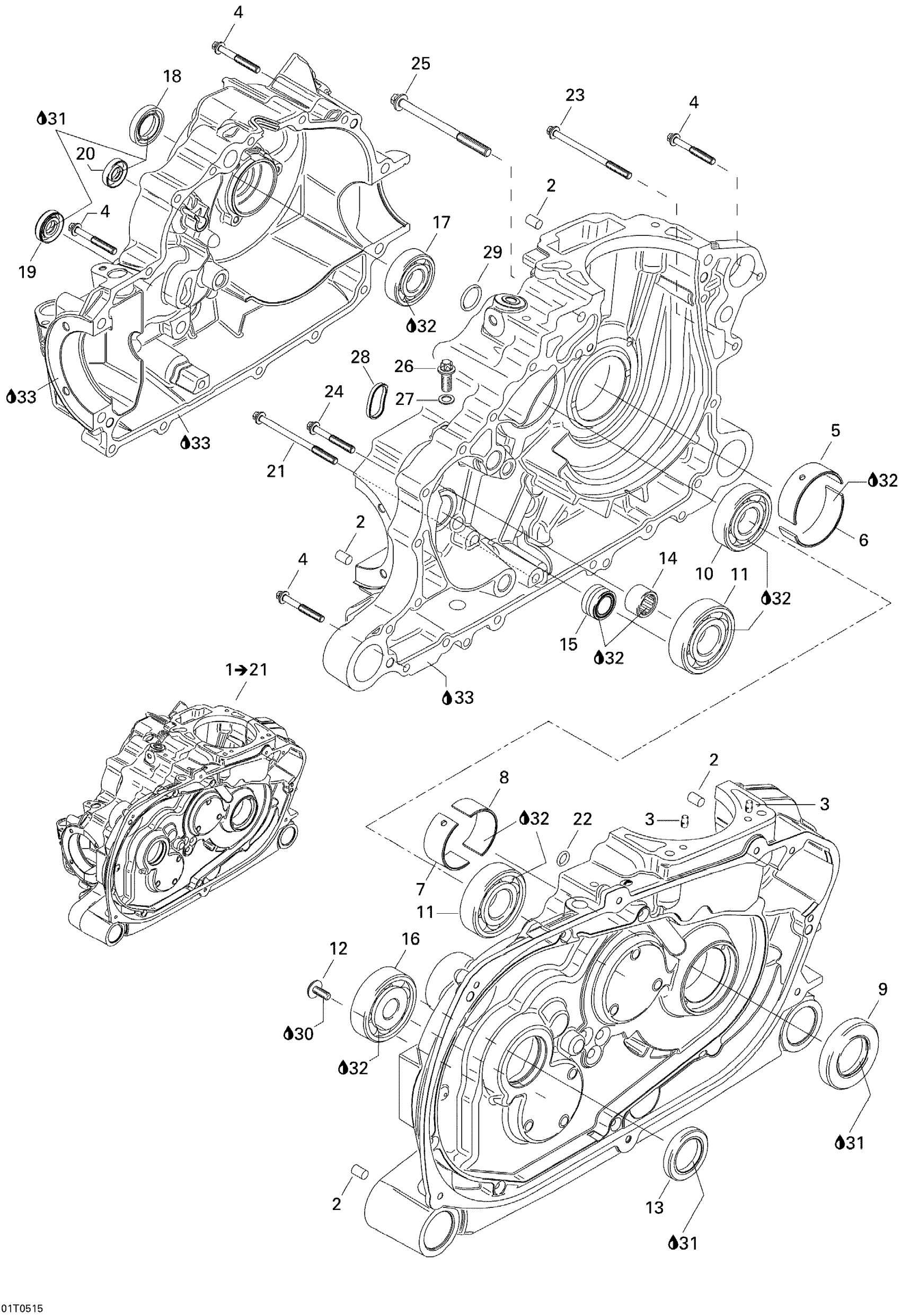

Can-Am Traxter Max CVT 650, 2005 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 To 21

420296652

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Drive Pin 5 X 10

420929650

$1.68

4

Torx Flange Screw M6 X 45

420440324

$0.98

5

BEARING SLEEVE - Call your local BRP dealership

420933492

Unavailable

6

Bushing_Half - Call your local BRP dealership

420933495

Unavailable

7

Bushing_Half - Call your local BRP dealership

420233740

Unavailable

8

Bushing_Half - Call your local BRP dealership

420233745

Unavailable

9

Oil Seal

420630152

$18.54

10

BALL BEARING 63/22 - Call your local BRP dealership

420632200

Unavailable

11

Ball Bearing

420932822

$30.49

12

Torx Screw M6 X 16

420241529

$2.11

13

Oil Seal

420950089

$19.49

14

Needle Bushing

420832240

$20.99

15

Needle Bushing

420232085

$37.99

16

Ball Bearing

420632295

$47.49

17

Ball Bearing 6204

420932433

$23.49

18

Oil Seal

420930392

$15.81

19

Oil Seal

420650315

$11.65

20

Oil Seal

420250450

$17.04

21

Torx Flange Screw M6 X 105

420440612

$7.41

22

O-RING - Call your local BRP dealership

420850902

Unavailable

23

Torx Flange Screw M6 X 85

420641228

$7.41

24

Torx Flange Screw M6 X 45

420440324

$0.98

25

Torx Flange Screw M8 X 90

420440412

$7.41

26

Torx Flange Screw M8 X 25

420440372

$4.12

27

Sealing Ring

420950141

$2.00

28

GASKET - Call your local BRP dealership

420630180

Unavailable

29

O-RING - Call your local BRP dealership

420950180

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Grease, Super Lube

293550030

$28.99

32

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

33

Loctite 5910, 300 ml

293800081

$57.99
