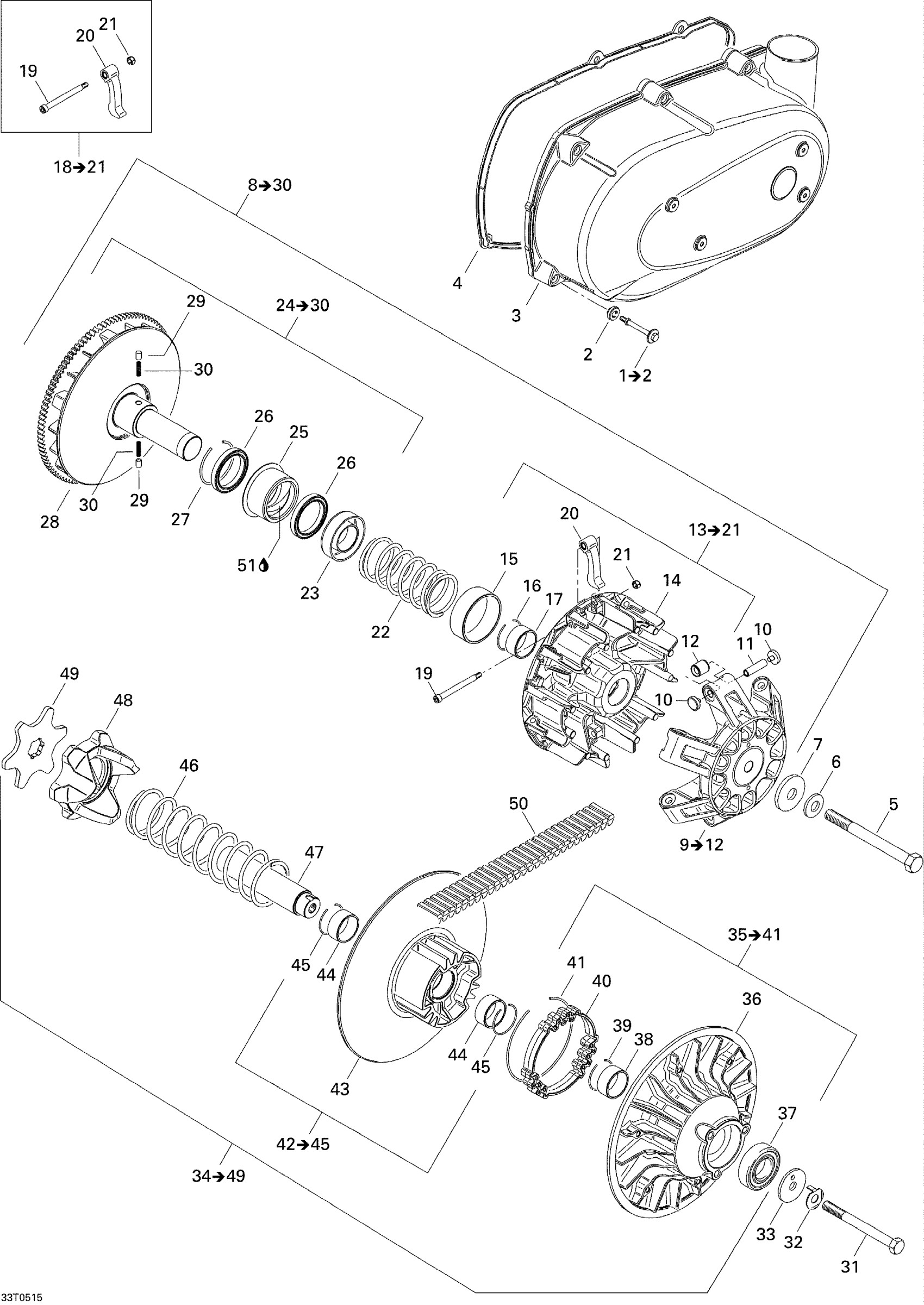

Can-Am Traxter Max CVT 650, 2005 01- Belt and Engine Pulley System Diagram

#

Description
Price

1

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

$25.99

2

Rubber Bushing

420260050

Unavailable

3

TRANSMISSION COVER - Call your local BRP dealership

420610350

Unavailable

4

GASKET - Call your local BRP dealership

420630110

Unavailable

5

Hex. Screw M12 X 140

420641859

$24.99

6

Spring Washer

420627768

$21.99

7

Thrust Washer

420627920

$7.51

8

CVT Drive Pulley Ass'y | Traxter 650 CVT, Includes 8 To 30

420684340

Unavailable

9

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

10

Slider Shoe Set

420281296

$65.49

11

Roller Axle

417223257

$6.99

12

Roller

417223767

$11.59

13

Outer Half Ass'y | Traxter 650 CVT, Includes 13 To 21

420280147

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

CENTRIFUGAL LEVER KIT - Call your local BRP dealership | Traxter 650 CVT, Includes 18 To 21

420248408

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

NUT M5 - Call your local BRP dealership

420942025

Unavailable

22

Compression Spring | Traxter 650 CVT

420238164

Unavailable

23

SPRING SEAT - Call your local BRP dealership

420627573

Unavailable

24

Inner Half Ass'y | Includes 24 To 30

420281395

Unavailable

25

Drive Pulley Clutch

420257195

$114.99

26

Ball Bearing

420632377

$49.99

27

Retaining Ring

420245951

$5.31

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Spring Sleeve

420229577

$18.49

30

Spring

420239134

$3.06

31

Hex. Screw M10 X 110

420441485

$12.18

32

TAB WASHER - Call your local BRP dealership

420245925

Unavailable

33

Thrust Washer

420627590

$16.99

34

CVT Driven Pulley Ass'y | Includes 34 To 49

420684350

Unavailable

35

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Ball Bearing

420932421

$28.49

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

41

Retaining Ring

420245911

$5.31

42

DRIVEN PULLEY INNER HALF ASS'Y - Call your local BRP dealership | Includes 42 To 45

420280186

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Compression Spring, Driven Pulley

420238173

$55.99

47

Driven Pulley Shaft

420220913

$134.99

48

DRIVEN PULLEY CAM - Call your local BRP dealership

420280191

Unavailable

49

Cam Plate

420627586

$48.99

50

V-belt | Traxter 650 CVT

715900023

$154.99

51

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
