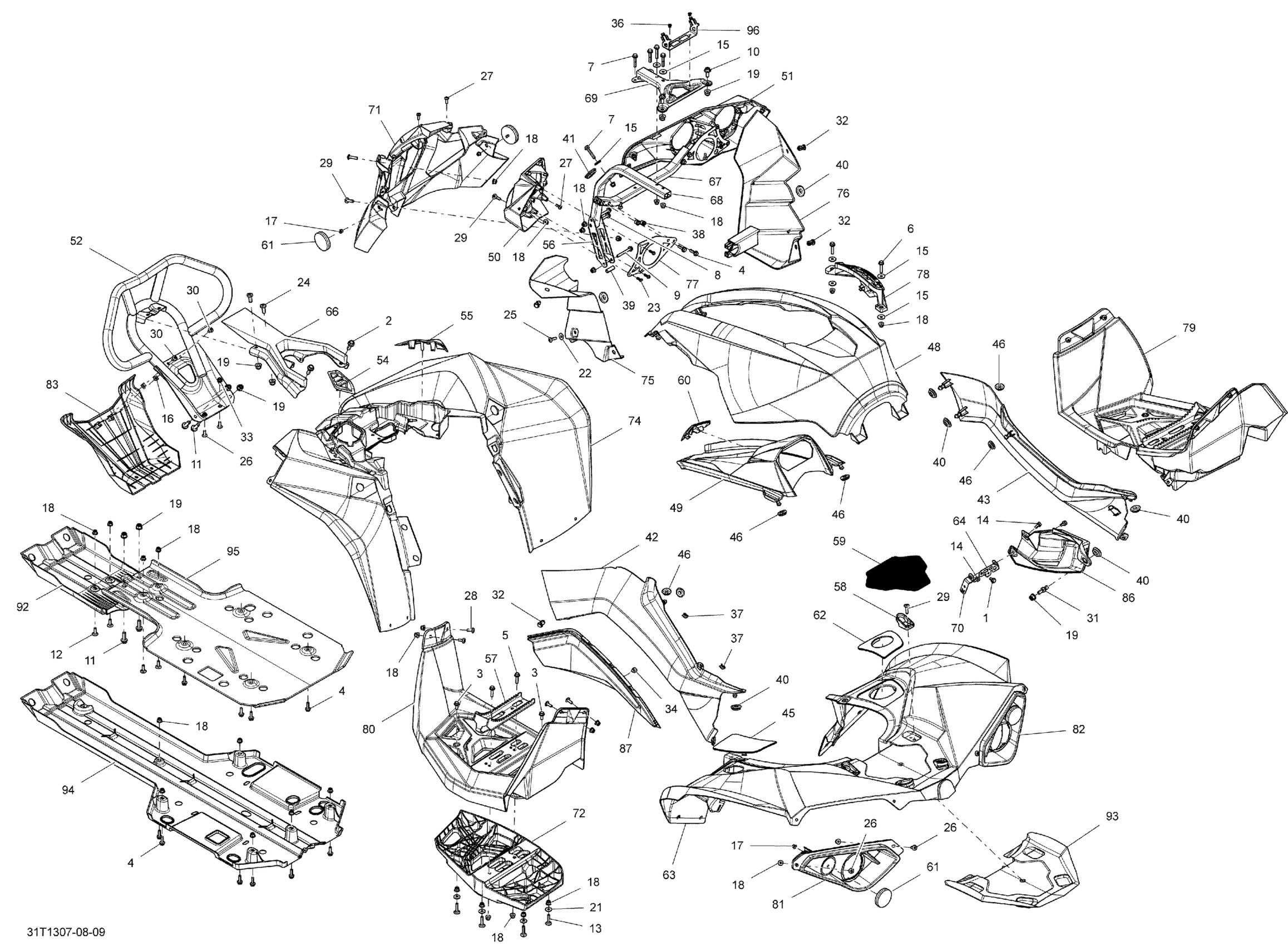

Can-Am Renegade 500EFI STD, 2013 09- Body And Accessories Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Screw M6 X 16

207661654

$2.11

Hex. Flange Screw M6 X 20

207662084

$1.69

Hex. Flange Screw M6 X 25

207662554

$1.48

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M6 X 35

207663544

$0.90

Hex. Flange Screw M6 X 45

207664544

$1.46

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Screw M8 X 20

207682044

$1.15

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Carriage Bolt M6 X 30

207763044

$4.44

Hex. Flange Screw M6 X 12

210261250

$1.90

Flat Washer

224061201

$1.37

Square Nut M6

232862412

$1.49

Flange Elastic Nut M5

233251434

$2.00

Flange Elastic Nut M6

233261434

$4.44

Not Available As Spare Parts

XXX

Unavailable

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Torx Screw M8 X 20, Scotch Grip

250000740

$2.53

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 16

250000755

$0.87

Torx Screw M6 x 25

250000284

$2.11

Torx Screw M6 X 12

250000454

$4.44

Ball Head Stud

250300039

$7.51

Tuflok Plastic Rivet

293150230

$1.47

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Bumper

293830005

$8.09

Pop Rivet 3/16"

390402400

$0.35

Clip

414479100

$1.90

Insert

293450275

$12.99

Spacer

705005809

$12.99

Oval Washer

705000321

$5.61

Oblong Grommet

705003668

$5.79

Black, LH Lateral Panel

705002958

$43.99

Black, RH Side Panel

705002959

$43.99

LH Rear Body Panel Cap

705017923

$13.99

Grommet

705003264

$4.09

Yellow Central Pannel Kit

715001493

$104.99

Central Pannel Kit, Yellow | Europe

715001495

$104.99

Dashboard

705003556

$46.99

LH Front Facia

705004508

$51.99

RH Front Facia

705004509

$51.99

Front Bumper

705011635

$280.99

LH Grille

705008137

$20.99

RH Grille

705008138

$20.99

Support

705002282

$31.99

Footrest

705002326

$43.99

Hook

705002342

$16.99

Rear Carpet

705002343

$19.49

Cap

705002353

$15.49

Red Reflector

705011221

$14.49

Amber Reflector | Except Europe Model

705011222

$14.49

RH Rear Body Panel Cap

705017924

$15.99

Yellow Rear Fender Kit | North America

715001881

$409.99

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Int'l

715001883

Unavailable

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Europe

715001885

Unavailable

Engine Cover Support

705011461

$10.49

Bumper Support

705003505

$39.99

Bent Sectional Tube

705016093

$104.99

Front Bent Sectional Tube

705016094

$104.99

Bracket

705003599

$24.49

Engine Cover Support

705003646

$9.23

Front Facia

705003948

$55.99

LH Footboard

705004176

$49.99

RH Footboard

705004177

$49.99

YELLOW FRONT FENDER KIT - Call your local BRP dealership

715002157

Unavailable

LH INNER FENDER - Call your local BRP dealership

705004307

$12.99

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

Painted Headlamp Support

705004309

$16.99

Lever Indicator

705003838

$28.99

RH Footboard/Fender

705004729

$134.99

LH Footboard/Fender

705004730

$134.99

LH Rear Facia | North America, International

705004731

$19.99

LH Rear Facia | Europe

705004927

$15.99

RH Rear Facia | North America, International

705004732

$19.99

RH Rear Facia | Europe

705004926

$15.99

Front Bumper Plate

705004850

$19.99

Engine Cover

705004966

$14.49

Panel Extension

705004988

$15.49

Not Available As Spare Parts

XXX

Unavailable

Reflective Sheet

705005840

$9.39

Protective Plate Kit

715002374

$64.49

Not Available As Spare Parts

XXX

Unavailable

Fuse Holder

710002482

$8.99
