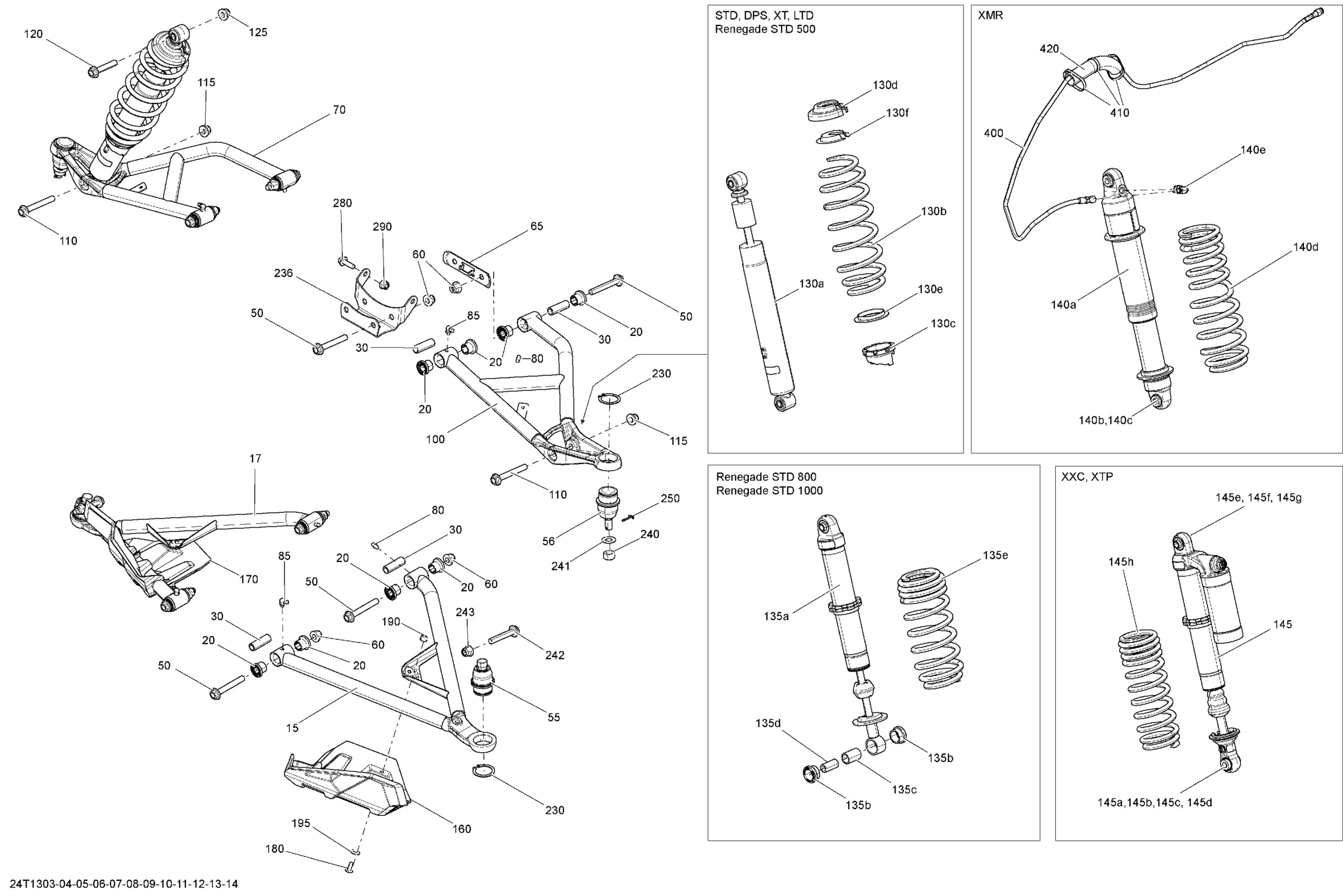

Can-Am Renegade 500EFI STD, 2013 07- Front Suspension Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

Black RH Upper Arm

706201797

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

Black LH Upper Arm

706201796

$158.99

110

Hex. Flange Screw M10 X 75

250001038

$6.77

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605546

$2.11

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130a

Front Shock

706201170

$185.49

130b

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Renegade STD 500

706201742

Unavailable

130c

Adjustment Cam

505073625

$12.99

130d

Spring Stopper

706200881

$12.99

130e

Spring Guide

503187500

$10.49

130f

Cap

706200785

$4.69

135a

Not Available As Spare Parts

XXX

Unavailable

135b

Not Available As Spare Parts

XXX

Unavailable

135c

Not Available As Spare Parts

XXX

Unavailable

135d

Not Available As Spare Parts

XXX

Unavailable

135e

Not Available As Spare Parts

XXX

Unavailable

140a

Not Available As Spare Parts

XXX

Unavailable

140b

Not Available As Spare Parts

XXX

Unavailable

140c

Not Available As Spare Parts

XXX

Unavailable

140d

Not Available As Spare Parts

XXX

Unavailable

140e

Not Available As Spare Parts

XXX

Unavailable

145

Not Available As Spare Parts

XXX

Unavailable

145a

Not Available As Spare Parts

XXX

Unavailable

145b

Not Available As Spare Parts

XXX

Unavailable

145c

Not Available As Spare Parts

XXX

Unavailable

145d

Not Available As Spare Parts

XXX

Unavailable

145e

Not Available As Spare Parts

XXX

Unavailable

145f

Not Available As Spare Parts

XXX

Unavailable

145g

Not Available As Spare Parts

XXX

Unavailable

145h

Not Available As Spare Parts

XXX

Unavailable

160

LH Joint Protector

706202808

$9.90

170

RH Joint Protector

706202809

$9.90

180

Torx Truss Screw M6 X 16

250000721

$1.69

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47

400

Not Available As Spare Parts

XXX

Unavailable

410

Not Available As Spare Parts

XXX

Unavailable

420

Not Available As Spare Parts

XXX

Unavailable
