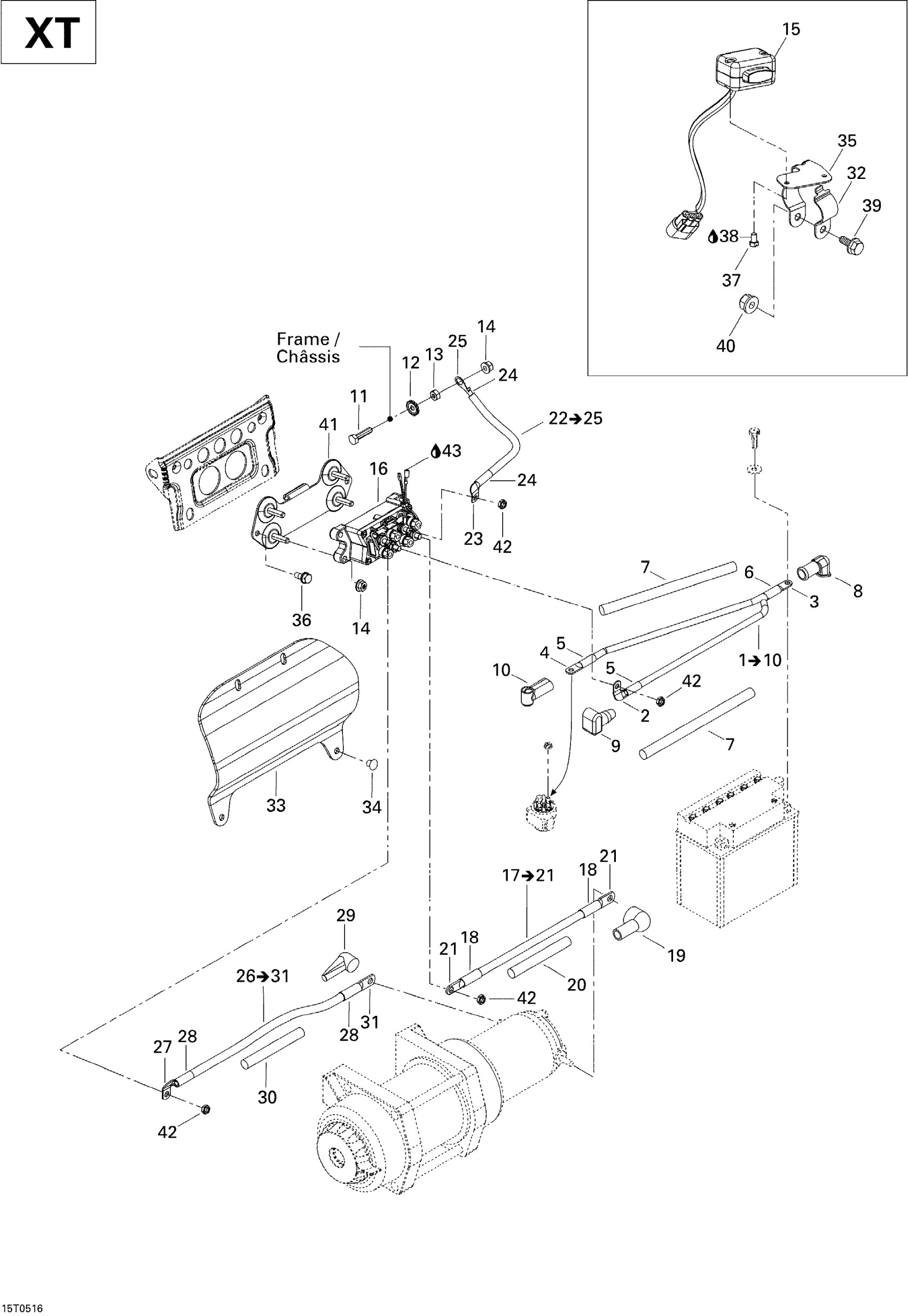

Can-Am Traxter CVT (500, 650, 650 XT), 2005 10- Electrical Harness, Front Section Diagram

#

Description
Price

1

Cable, Battery-solenoid | Includes 1 to 10 / Traxter CVT XT

710000434

Unavailable

2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

3

FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership

710000478

Unavailable

4

Flat Open Barel 6.6 mm

710000479

Unavailable

5

Was 710000483 Heat Shrink Tubing

219704447

$78.99

6

Shrink Tubing | XT Models

275500578

Unavailable

7

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

8

Protector Cap

710000495

$10.99

9

Protector Cap | STD Models

710000523

Unavailable

10

Protector Cap

710000527

Unavailable

11

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

12

External Serrated Lock Washer 6 mm

234461608

$1.15

13

Hex. Nut M6

232061414

$0.53

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

16

Winch Solenoid | XT Models

710001000

$121.99

17

Winch Solenoid Cable Ass'y | Includes 17 to 21

710000438

Unavailable

18

Was 710000483 Heat Shrink Tubing

219704447

$78.99

19

Protector Cap

710000494

Unavailable

20

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

21

Open Barrel

710000530

Unavailable

22

Frame Solenoid Cable Ass'y | Includes 22 to 25

710000439

Unavailable

23

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

24

Was 710000483 Heat Shrink Tubing

219704447

$78.99

25

Open Barrel

710000530

Unavailable

26

Winch Solenoid Cable Ass'y | Includes 26 to 31

710000440

Unavailable

27

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

28

Was 710000483 Heat Shrink Tubing

219704447

$78.99

29

Protector Cap

710000494

Unavailable

30

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

31

Open Barrel

710000530

Unavailable

32

Collar

710000566

Unavailable

33

Protector Pad

710000511

Unavailable

34

Black, Dart

293730011

$0.99

35

Support, Black

710000564

Unavailable

36

Hex. Forming Screw M6 X 10

210261050

$1.69

37

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

38

Loctite 243, 10 ml

293800060

$21.49

39

Hex. Flange Screw M6 X 16

207661654

$2.11

40

Hex. Flange Elastic Nut M6

233261494

$1.58

41

SOLENOID SUPPORT, BLACK - Call your local BRP dealership

710000535

Unavailable

42

Elastic Stop Nut M6

232561414

$0.55

43

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
