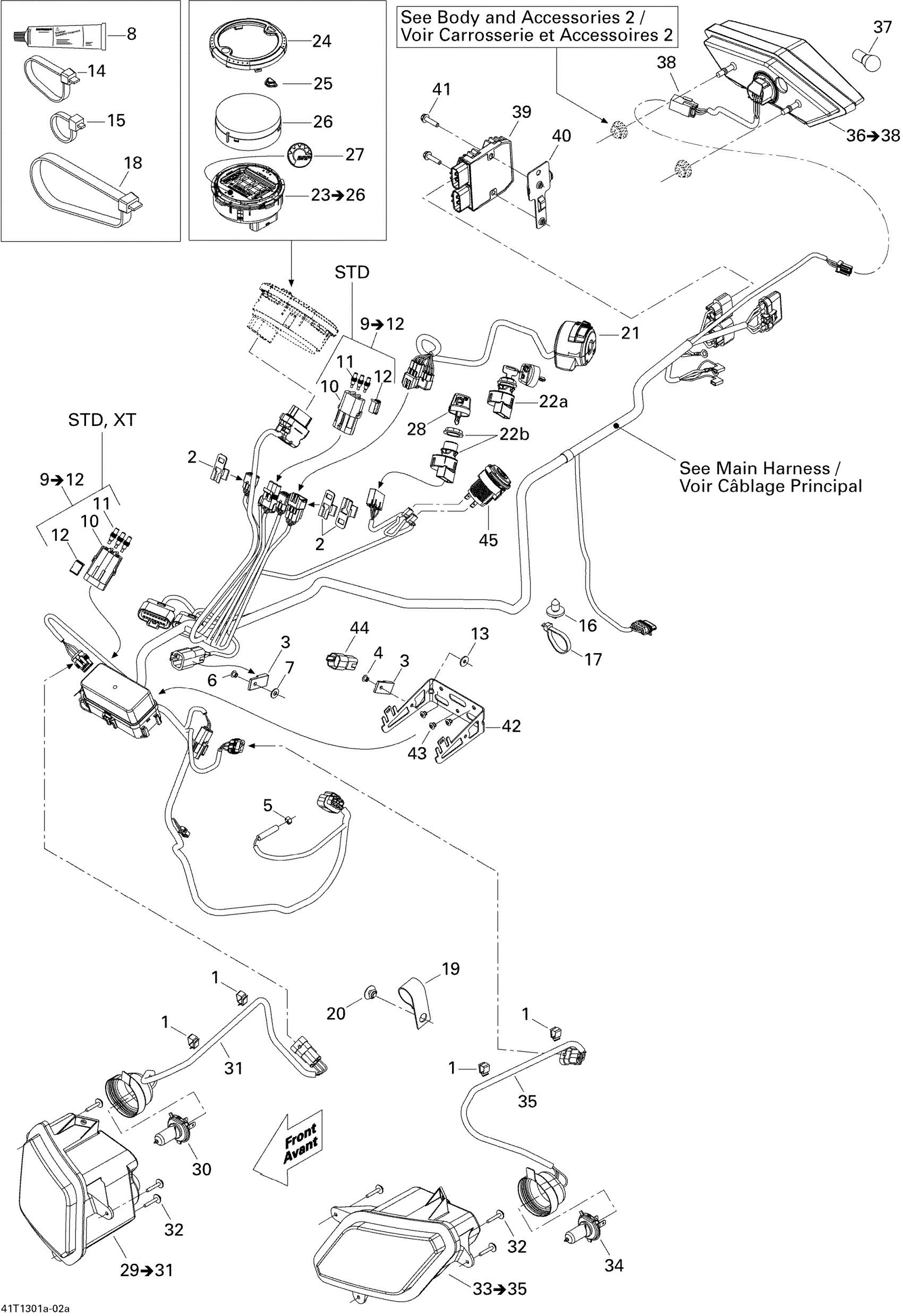

Can-Am Outlander STD, XT, 400 EFI, 2013 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402300

$0.75

5

Oetiker Clamp

293650100

$3.38

6

Pop Rivet 3/16"

390402300

$0.75

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

10

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

11

Wire Seal

278000216

$3.19

12

Clip

710000992

$4.29

13

Washer

517124300

$0.19

14

Tie Wrap 368 mm

293750008

$1.04

15

Tie-Rap 180 mm

414115200

$0.11

16

Mount Dart

293730040

$1.04

17

Tie Wrap 368 mm

293750008

$1.04

18

Tie-rap 627 mm

293750041

$0.93

19

CLAMP - Call your local BRP dealership

705600311

Unavailable

20

Pop Rivet 3/16"

390406500

$0.88

21

Handle Kit | STD

703500919

$74.99

22a

Ignition Switch With Key

710002323

$86.99

22b

Ignition Switch | Includes 16 to 17

710002324

$79.49

23

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

24

Trim Ring

710001416

$23.99

25

Button

710001473

$13.71

26

Lens

415129320

$24.49

27

BRP Logo13 mm

704904615

$13.49

28

Black, Electronic Key

710000817

$63.49

29

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

30

Bulb, 12V 35/35W

710000871

$34.99

31

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

32

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

33

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

34

Bulb, 12V 35/35W

710000871

$34.99

35

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

36

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

37

Bulb

520000758

$9.10

38

Male Housing, 3 Circuits

515175494

$16.18

39

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

40

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

41

Hexagonal Head Screw

210262050

$2.11

42

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

43

Pop Rivet 3/16"

390402400

$0.35

44

Diagnostic Connector

278002704

$19.49

45

DC Outlet

710001248

$37.99
