Description

Price

2b

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

2c

Torx Screw K50 X 16

250000720

$1.69

2d

External Module GPS

278004172

$189.99

2f

Torx Screw K50 X 35

250001111

$14.49

6a

Wiring Harness

710009557

$17.49

6a1

Bulb 12V 10W | Not Shown

415129261

$2.46

6c

Cable Support

710004279

$4.19

8a

Battery 12 Volt 21Ah | Includes 8a to 8a1

219800599

$179.96

8a1

Battery Bolt Kit | Not Shown

219800600

Unavailable

8b

Latch

520000528

$7.69

8c

Battery Support

710010843

$17.49

8d

Starter Relay

278003012

$42.49

8f

Hex. Elastic Stop Nut M6

232561600

$1.15

8g

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

8h

Mod Vcm Wet Prog & Grommet Kit | Includes 8h to 8h2

219800536

$1,149.99

8h2

Shock Damper

710003279

$10.49

8j

Vibration Damper

710009090

$10.49

8k

VCM Harness Protector

710003996

$2.79

8m

PBM Module Ass'y

710008602

$459.99

8n

Torx Screw M4 X 16

250000750

$1.68

8p

Elastic Stop Nut M4

232541484

$0.74

8q

Flat Washer 4 mm

234041480

$0.74

8r

Horn

710004940

$29.49

8s

Horn Support

710005769

$15.99

8t

Torx Truss M8 X 25

250000874

$2.11

8u

Hex. Flange Elastic Nut M8

233281414

$1.47

8v

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8w1

Reverse Cable

710002889

$31.99

8w2

Actuator

710011269

$64.99

8w3

Elastic Stop Nut M4

232541414

$0.58

8w4

Socket Head Screw M4 X 40

205444056

$2.11

8w5

Pop Rivet 5/32

390403000

$0.40

8w6

Actuator Support

710010657

$20.99

8w7

Clip

270000141

$11.49

8w8

Pop Rivet 3/16 X ,425

293150293

$0.35

8x

Hex. Flange Screw M6 X 12

210261250

$1.90

8y

Actuator Motor

710007256

$227.99

8z

Hex. Flange Screw M6 X 20

207662054

$1.01

8aa

Elastic Stop Nut M6

232561434

$1.99

8ab

Brake Pressure Switch Ass'y

710001379

$43.49

8ac

Pop Rivet

293150150

$2.40

8ad

Yaw Rate Sensor

710005658

$179.99

8af

Hex. Flange Screw M6 X 16

210261650

$1.67

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Stainless Steel Flat Washer

234062670

$2.11

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$99.99

2250a

Hex. Screw M6 X 14

207161444

$0.58

2250b

Protector Cap

710000393

$9.59

2250j

Battery Guard

710002945

$12.99

2250p

Fuse 80 A

710008102

$15.87

2250q

Fuse Holder Support

710008098

$23.99

2250r

Fuse Holder Cover

710008154

$43.49

2262

Hex. Flange Screw M6 X 12

210261250

$1.90

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

4042

Lock

710001222

$2.09

4044

Pop Rivet 3/16 X ,425

293150293

$0.35

4045

Clip

270000141

$11.49

4052

Tuflok Plastic Rivet

293150230

$1.47

4065

Support Cable

293750083

$2.29

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4077

Wire Support

710004669

$6.79

4090

Harness Holder

710004794

$3.39

4095

Tuflok Plastic Rivet

293150230

$1.47

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4380

Cable Support

710004299

$4.19

4800

Tail Harness

710006428

$18.49

4810

Connector Cap

708305003

$13.22

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

8604

Connector Holder

710002033

$3.39

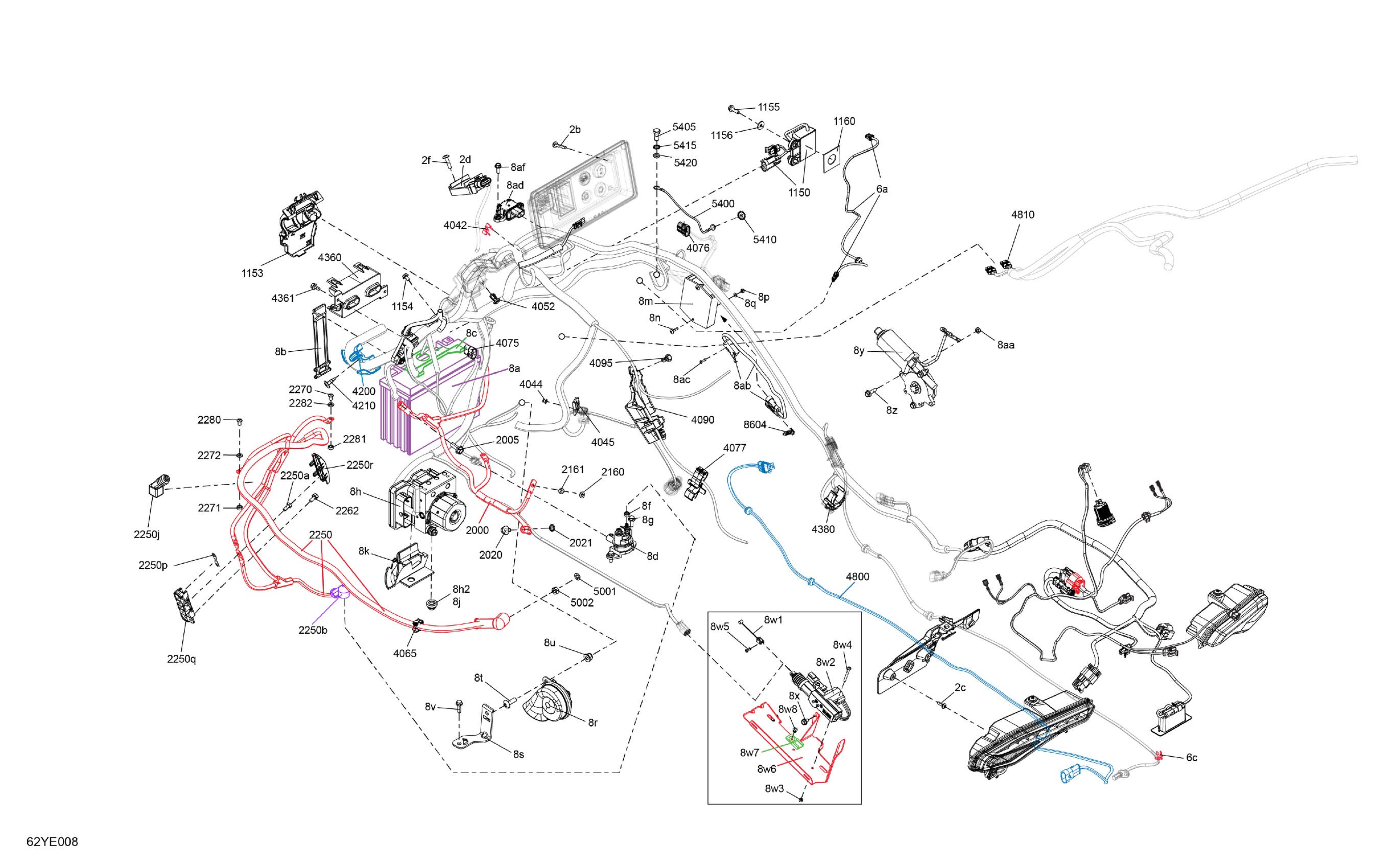

Can-Am North America - F3 SPORT - E6SA - Monolith Black, 2025 08- Electric - System Diagram
