Description

Price

4000

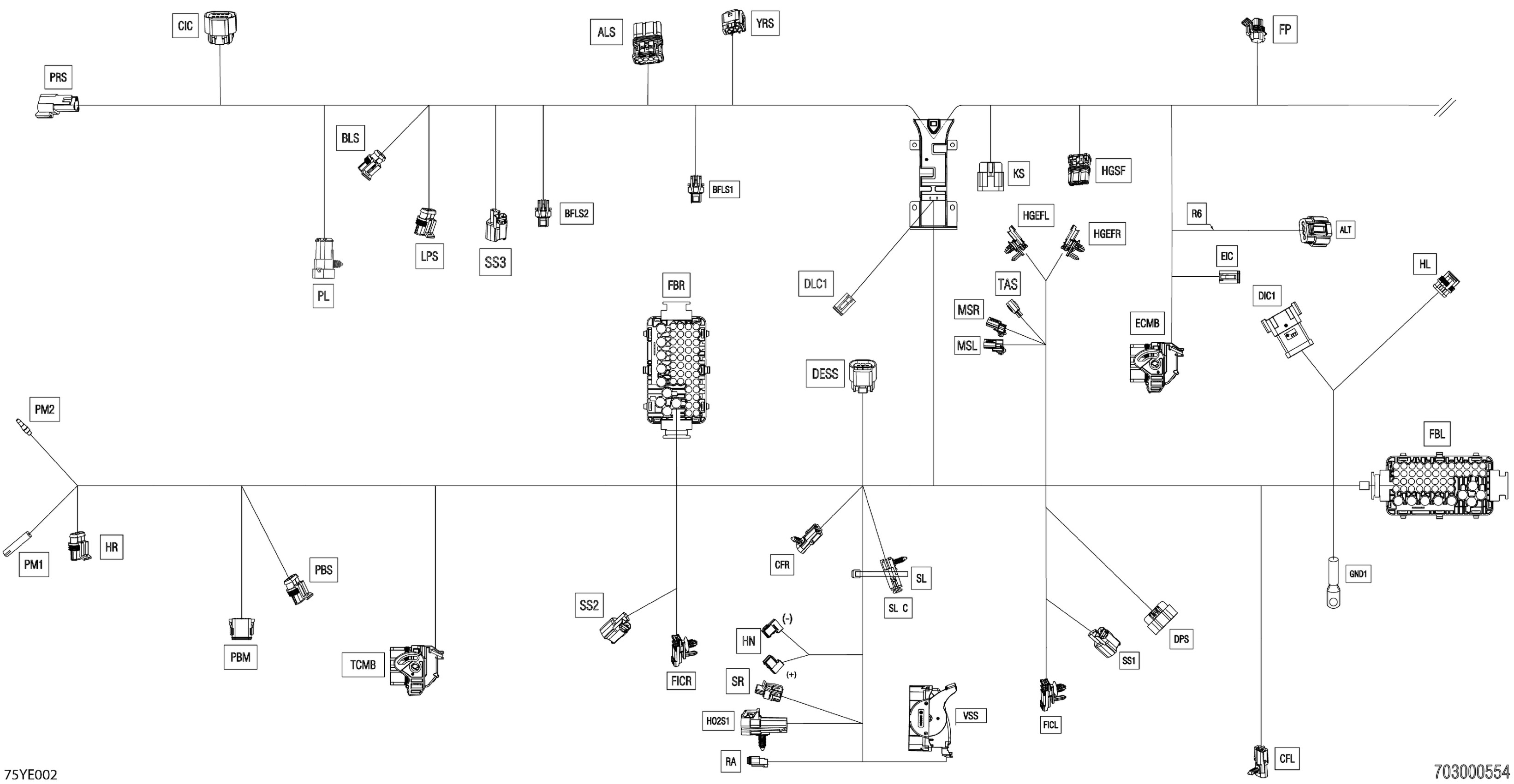

Chassis Wiring Harness

710010088

$909.99

ALS

Jae Housing

515179586

$12.18

ALS

Terminal Jae

710009186

$4.55

ALT

Housing

710009577

$15.36

ALT

Plug

710009584

$7.87

ALT

Seal

710009582

$4.55

ALT

Seal

515179562

$7.86

ALT

Terminal

710009579

$13.77

ALT

Terminal

710009581

$13.77

BFLS1

Female Housing, 2 Circuits

515177192

$9.12

BFLS1

Wire Seal

710001163

$7.69

BFLS1

Female Terminal

710001164

$8.89

BFLS2

Female Housing, 2 Circuits

515177192

$9.12

BFLS2

Wire Seal

710001163

$7.69

BFLS2

Female Terminal

710001164

$8.89

BLS

Female Housing, 2 Circuits

409209500

$15.27

BLS

Wire Seal

278001013

$3.28

BLS

Female Terminal

278001014

$3.28

CFL

Female Housing, 2 Circuits

278000217

$9.59

CFL

Wire Seal

710000504

$4.39

CFL

Male Terminal

409004300

$5.61

CFR

Female Housing, 2 Circuits

278000217

$9.59

CFR

Wire Seal

710000504

$4.39

CFR

Male Terminal

409004300

$5.61

CIC

Housing

710001928

$16.86

CIC

Lock

710006181

$3.19

CIC

Cap

710001225

$9.19

CIC

Seal Wire

710001332

$3.28

CIC

Seal

710001233

$3.19

CIC

Terminal

710001228

$3.28

CIC

Terminal

710001229

$3.19

DESS

Housing Connector

515177287

$7.62

DESS

Lock

710001222

$2.09

DESS

Seal

710001233

$3.19

DESS

Terminal

710001229

$3.19

DIC

Ctc Housing

278004305

$17.59

DIC

Plug

710009532

$7.86

DIC

Terminal

710009530

$4.39

DIC

Terminal

710009531

$13.77

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Plug

710005437

$3.17

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Terminal

710001873

$2.09

DPS

Female Terminal

278002187

$6.39

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Terminal_Molex Female

710009464

$2.09

ECMB

Female Terminal

710001590

$2.09

ECMB

Female Terminal

710001727

$3.19

EIC

Female Housing 6 Circuits

710002706

$20.49

EIC

Lock

710002705

$4.44

EIC

Plug

710005437

$3.17

EIC

Female Terminal

710005438

$4.29

EIC

Female Terminal

710005439

$4.44

F1L

Little Fuse, 15 Ampere

710000745

$8.49

F1R

Little Fuse, 15 Ampere

710000745

$8.49

F2L

Little Fuse, 10 Amperes

710000744

$8.79

F2R

Little Fuse, 10 Amperes

710000744

$8.79

F3L

Little Fuse, 10 Amperes

710000744

$8.79

F3R

Little Fuse, 20 Amperes

710000746

$8.49

F4L

Little Fuse, 10 Amperes

710000744

$8.79

F4R

Little Fuse, 5 Amperes

710000742

$8.79

F5L

Little Fuse, 15 Ampere

710000745

$8.49

F5R

Little Fuse, 15 Ampere

710000745

$8.49

F6L

Little Fuse, 5 Amperes

710000742

$8.79

F6R

Little Fuse, 10 Amperes

710000744

$8.79

F7L

Little Fuse, 15 Ampere

710000745

$8.49

F8L

Little Fuse, 15 Ampere

710000745

$8.49

F8R

Fusebox Ass'y

710005623

$49.49

FBL

Seal Plug

278002880

$7.86

FBL

Cap

710001631

$1.09

FBL

Wire Seal

278001065

$7.69

FBL

Wire Seal

278000218

$4.39

FBL

Terminal Joint

710001905

$2.09

FBL

Seal Joint

710007566

$4.65

FBL

Seal Joint

710003132

$0.90

FBL

Female Terminal

710000918

$7.69

FBL

Female Terminal

278002578

$1.04

FBL

Terminal

710001906

$2.54

FBL

M Terminal

710003135

$2.79

FBL

Terminal

710002438

$1.39

FBL

F Terminal

710003125

$3.39

FBL

Cover

710007491

$17.99

FBL C

Fuses Decal

710009803

$0.01

FBL C

Little Fuse, 20 Amperes

710000746

$8.49

FBL C

Little Fuse, 5 Amperes

710000742

$8.79

FBL C

Little Fuse, 10 Amperes

710000744

$8.79

FBL C

Little Fuse, 15 Ampere

710000745

$8.49

FBR

Fusebox Ass'y

710005623

$49.49

FBR

Seal Plug

278002880

$7.86

FBR

Wire Seal

278001065

$7.69

FBR

Wire Seal

278000218

$4.39

FBR

Terminal Joint

710001905

$2.09

FBR

Seal Joint

710007566

$4.65

FBR

Seal Joint

710003132

$0.90

FBR

Female Terminal

710000918

$7.69

FBR

Female Terminal

278002578

$1.04

FBR

Terminal

710001906

$2.54

FBR

M Terminal

710003135

$2.79

FBR

Terminal

710002438

$1.39

FBR

F Terminal

710003125

$3.39

FBR C

Cover

710007491

$17.99

FBR C

Fuses Decal

710009804

$0.01

FBR C

Little Fuse, 5 Amperes

710000742

$8.79

FBR C

Little Fuse, 10 Amperes

710000744

$8.79

FBR C

Little Fuse, 15 Ampere

710000745

$8.49

FICL

Housing Jae

515179327

$16.18

FICL

Terminal Jae

515179328

$4.55

FICR

Housing Jae

515179327

$16.18

FICR

Terminal Jae

515179328

$4.55

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

710000643

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

XXX

Male Terminal Housing, 2 Circuits

409209400

$16.86

XXX

Wire Seal

515176621

$7.49

XXX

Male Terminal

515176164

$7.16

XXX

Female Housing, 2 Circuits

409209500

$15.27

XXX

Plug

409013700

$4.55

HGEFL

Housing Jae

515179327

$16.18

HGEFL

Plug

710008941

$20.99

HGEFL

Terminal Jae

515179328

$4.55

HGEFL C

Housing Jae

710009185

$12.18

HGEFL C

Plug

710008941

$20.99

HGEFR

Housing Jae

515179327

$16.18

HGEFR

Plug

710008941

$20.99

HGEFR

Terminal Jae

515179328

$4.55

HGEFR C

Housing Jae

710009185

$12.18

HGEFR C

Plug

710008941

$20.99

HGSF

Jae Housing

515179586

$12.18

HGSF

Plug

710008941

$20.99

HGSF

Terminal Jae

710009186

$4.55

HL

Female Housing, 3 Circuits

409209600

$35.99

HL

Wire Seal

278001013

$3.28

HL

Female Terminal

278001014

$3.28

HN (-)

Female Terminal

710002398

$2.19

HN (-)

Female Terminal

710002399

$2.40

HN (+)

Female Terminal

710002398

$2.19

HN (+)

Female Terminal

710002399

$2.40

HO2S1

Housing

710002466

$3.19

HO2S1

Seal

278001482

$3.19

HO2S1

Gold Terminal

710002597

$3.19

HR

Female Housing, 3 Circuits

409209600

$35.99

HR

Wire Seal

278001013

$3.28

HR

Female Terminal

278001014

$3.28

J1L

Fuse, 40 AMP

710001047

$11.80

J1R

Fuse 30 amp.

710001200

$7.20

J2L

Fuse, 25 AMP

710001046

$3.91

J3L

Fuse, 40 AMP

710001047

$11.80

J5L

Fuse, 20 AMP

710001078

$1.90

J4R

Fuse, 40 AMP

710001047

$11.80

J4L

Fuse, 40 AMP

710001047

$11.80

J5R

Fuse 30 amp.

710001200

$7.20

KS

Housing

710001231

$13.99

KS

Seal Wire

710001332

$3.28

KS

Terminal

710001223

$3.19

LPS

Female Housing, 3 Circuits

409209600

$35.99

LPS

Plug

409013700

$4.55

LPS

Wire Seal

515176621

$7.49

LPS

Female Terminal

710001340

$5.89

MSL

Housing Sumitomo

710008939

$63.99

MSL

Plug

710008931

$8.79

MSL

Connector Seal

710009813

$13.77

MSL

Terminal Sumitomo

710008940

$91.49

MSR

Housing Sumitomo

710008933

$11.11

MSR

Plug

710008931

$8.79

MSR

Connector Seal

710009813

$13.77

MSR

Terminal Sumitomo

710008940

$91.49

PBM

Female Terminal Housing, 12 Circuits

278002377

$49.99

PBM

Female Lock, 12 Circuits

409015700

$4.55

PBM

Sealing Cap

293000052

$3.19

PBM

Female Terminal

278000632

$2.09

PBM

Female Terminal

278001665

$4.55

PBS

Female Housing, 3 Circuits

409209600

$35.99

PBS

Plug

409013700

$4.55

PBS

Wire Seal

515176621

$7.49

PBS

Female Terminal

710001340

$5.89

PL

Housing

710000568

$11.12

PL

Plug

409013700

$4.55

PL

Wire Seal

515176621

$7.49

PL

Male Terminal

515176164

$7.16

PM1

Insulated Sheath

278001007

$3.58

PM1

Female Terminal

710000421

$6.11

PM2

Insulated Sheath

278001008

$3.28

PM2

Female Terminal

278002261

$7.55

PRS

Male Housing

278002378

$13.99

PRS

Male Lock, 3 Circuits

409207600

$3.19

PRS

Male Terminal

710001348

$12.99

R6

Resistor

515179003

$2.24

RA

Connector Deutsch Female 2 Cavities

515179512

$8.39

RA

Female Lock, 2 Circuits

515175675

$4.55

RA

Female Terminal

278000632

$2.09

RY1L

Relay

715900824

$21.99

RY1R

Relay

715900824

$21.99

RY2L

Relay

715900824

$21.99

RY2R

Relay

715900824

$21.99

RY3L

50 Amps Relay

710003143

$13.76

RY3R

50 Amps Relay

710003143

$13.76

RY4L

Relay

715900824

$21.99

RY6R

Relay, 30 AMP

515176774

$21.99

SL

Housing PT

710001151

$6.03

SL

Lock

710001152

$4.39

SL

Seal Wire

710001153

$2.21

SL

Male Terminal

710001154

$13.49

SL C

Female Housing, 2 Circuits

515177192

$9.12

SL C

Plug

515177374

$2.09

SR

Female Housing, 2 Circuits

515177192

$9.12

SR

Wire Seal

710001163

$7.69

SR

Female Terminal

710001164

$8.89

SS1

Connector 2 Pins

710005669

$2.24

SS1

Seal

710005689

$2.09

SS1

Female Terminal 18-20 AWG

515178348

$2.09

SS2

Connector 2 Pins

710005669

$2.24

SS2

Seal

710005689

$2.09

SS2

Female Terminal 18-20 AWG

515178348

$2.09

SS3

Connector 2 Pins

710005669

$2.24

SS3

Seal

710005689

$2.09

SS3

Female Terminal 18-20 AWG

515178348

$2.09

TAS

Housing Sumitomo

710008934

$10.49

TAS

Connector Seal

710009813

$13.77

TAS

Terminal Sumitomo

710008940

$91.49

TCMB

Cover, 48 positions

710001591

$12.18

TCMB

Housing

710003669

$35.99

TCMB

Plug

710001592

$2.21

TCMB

Plug

710001593

$2.21

TCMB

Female Terminal

710001727

$3.19

TCMB

Terminal_Molex Female

710009464

$2.09

VSS

Cover With CPA

710008720

$20.99

VSS

Connector Bosch Female 46 Cavities

710008719

$47.99

VSS

Housing Fill Plug 2.8

710008725

$26.99

VSS

Connector Seal Bosch1.2

710008729

$47.99

VSS

Connector Seal Bosch 2.8

710008724

$48.49

VSS

Connector Seal Bosch 1.2

710008728

$48.49

VSS

Bosch Female Terminal 4.8

710008721

$7.89

VSS

Bosch Female Terminal 2.8

710008723

$7.90

VSS

Bosch Female Terminal 1.2

710008726

$7.89

YRS

Housing

710003730

$14.83

YRS

Wire Seal

710001118

$1.16

YRS

Female Terminal

710010230

$9.27

Can-Am North America - F3 SPORT - E6SA - Monolith Black, 2025 08- Electric - Main Harness - 710010088 Diagram

Chassis Wiring Harness

Jae Housing

Terminal Jae

Housing

Plug

Seal

Seal

Terminal

Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Female Housing, 2 Circuits

Wire Seal

Male Terminal

Housing

Lock

Cap

Seal Wire

Seal

Terminal

Terminal

Housing Connector

Lock

Seal

Terminal

Ctc Housing

Plug

Terminal

Terminal

Female Housing 6 Circuits

Lock

Plug

Female Terminal

Female Terminal

Female Housing

Lock

Plug

Wire Seal

Seal

Terminal

Female Terminal

Cover, 48 positions

Female Terminal Housing, 48 Circuits

Plug

Plug

Terminal_Molex Female

Female Terminal

Female Terminal

Female Housing 6 Circuits

Lock

Plug

Female Terminal

Female Terminal

Little Fuse, 15 Ampere

Little Fuse, 15 Ampere

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 20 Amperes

Little Fuse, 10 Amperes

Little Fuse, 5 Amperes

Little Fuse, 15 Ampere

Little Fuse, 15 Ampere

Little Fuse, 5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 15 Ampere

Fusebox Ass'y

Seal Plug
