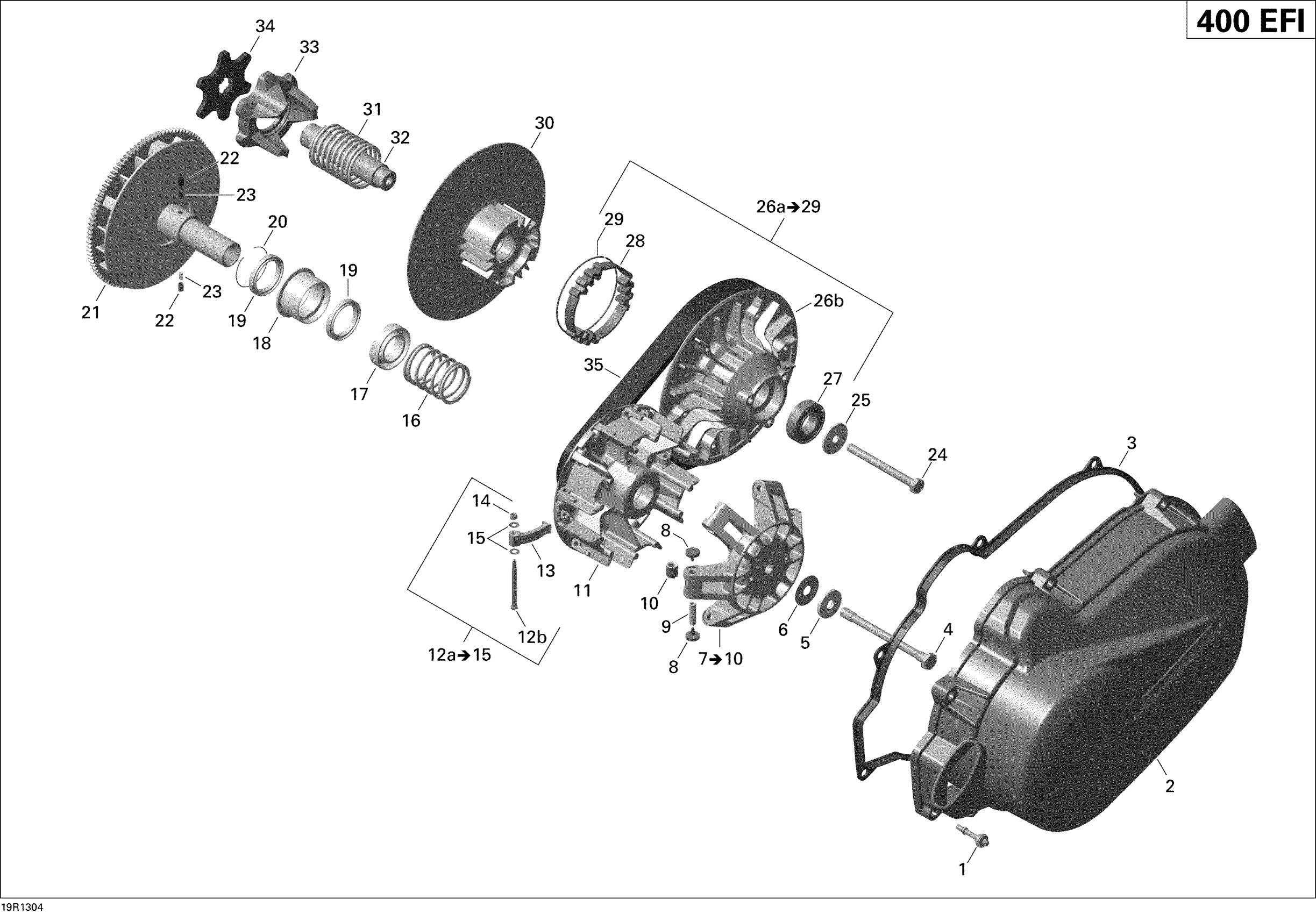

Can-Am Outlander STD, XT, 400 EFI, 2013 05- Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$8.58

2

CVT Cover

420610428

$232.99

3

CVT Cover Gasket

420630290

$31.99

4

Hex. Screw M12 X 140

420641812

$29.49

5

Spring Washer

420627760

$11.65

6

Thrust Washer

420627920

$7.51

7

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

8

Slider Shoe Set

420281296

$65.49

9

Roller Axle

417223257

$6.99

10

Roller

417223767

$11.59

11

Outer Haft

420280467

$329.99

12a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$75.49

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Compression Spring

420238166

$35.99

17

Seat Spring

420627578

$35.99

18

Clutch

420257439

$169.99

19

Ball Bearing

420632377

$49.99

20

Retaining Ring

420245951

$5.31

21

Inner Half Ass'y

420280247

$381.49

22

Spring Sleeve

420229577

$18.49

23

Compression Spring

420239135

$6.59

24

Hex. Screw M10 X 110

420441485

$12.18

25

Thrust Washer

420627590

$16.99

26a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

26b

Not Available As Spare Part - Friction Washer

Unavailable

27

Ball Bearing

420932421

$28.49

28

Torque Gear

420660124

$23.49

29

Retaining Ring

420245911

$5.31

30

Inner Half Ass'y | Includes 33 to 35

420248233

$308.99

31

Compression Spring, Driven Pulley

420238173

$55.99

32

Driven Pulley Shaft

420220914

$129.99

33

Cam

420280250

$43.49

34

Cam Plate

420627586

$48.99

35

Drive Belt

422280283

$104.99
