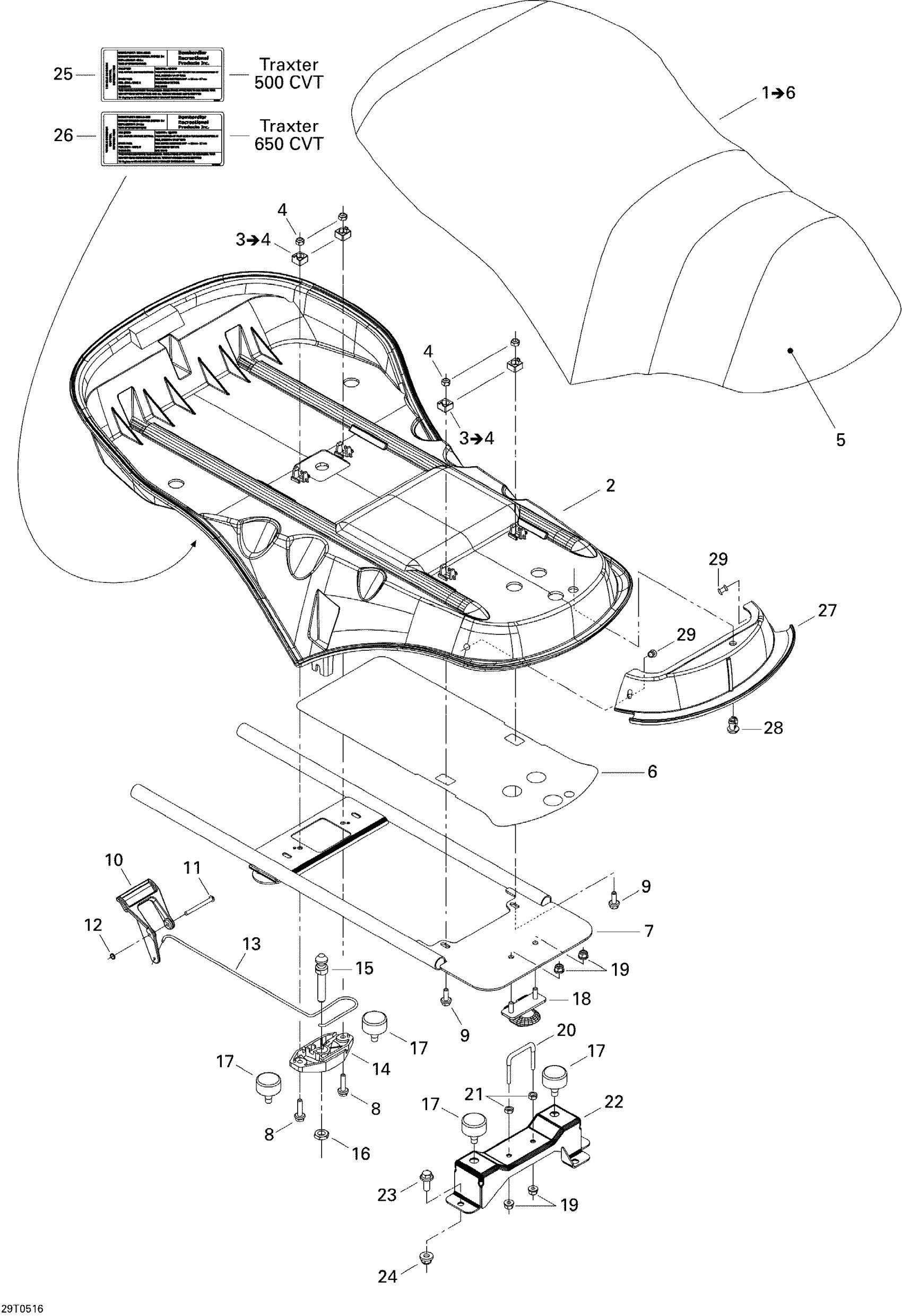

Can-Am Traxter CVT (500, 650, 650 XT), 2005 09- Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 6

708000283

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Seat Cover

708000314

Unavailable

6

Reflective Sheet

708000434

Unavailable

7

Seat Support

708000299

Unavailable

8

Hex. Flange Screw M6 X 25

207662544

$0.64

9

Hex. Flange Screw M6 X 16

207661644

$0.74

10

Lever Latch

708000010

Unavailable

11

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

12

Push Nut

389804300

$0.53

13

SPRING - Call your local BRP dealership

708000015

Unavailable

14

Latch Base

708000034

Unavailable

15

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

16

Hex. Jam Nut M10

232100600

$2.22

17

Rubber Stopper

708000758

$12.99

18

Seat Hook

291001479

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

21

Hex. Nut M6

232061600

$1.15

22

Seat Support

708000088

Unavailable

23

Hex. Flange Screw M8 X 20

207682044

$1.15

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Emission Label | Traxter 500 CVT

704900877

Unavailable

26

Emission Label | Traxter 650 CVT

704900878

Unavailable

27

HEAT SHIELD - Call your local BRP dealership

708000274

Unavailable

28

Tuflok Plastic Rivet

293150230

$1.47

29

Avdel Rivet

293150027

$2.49
