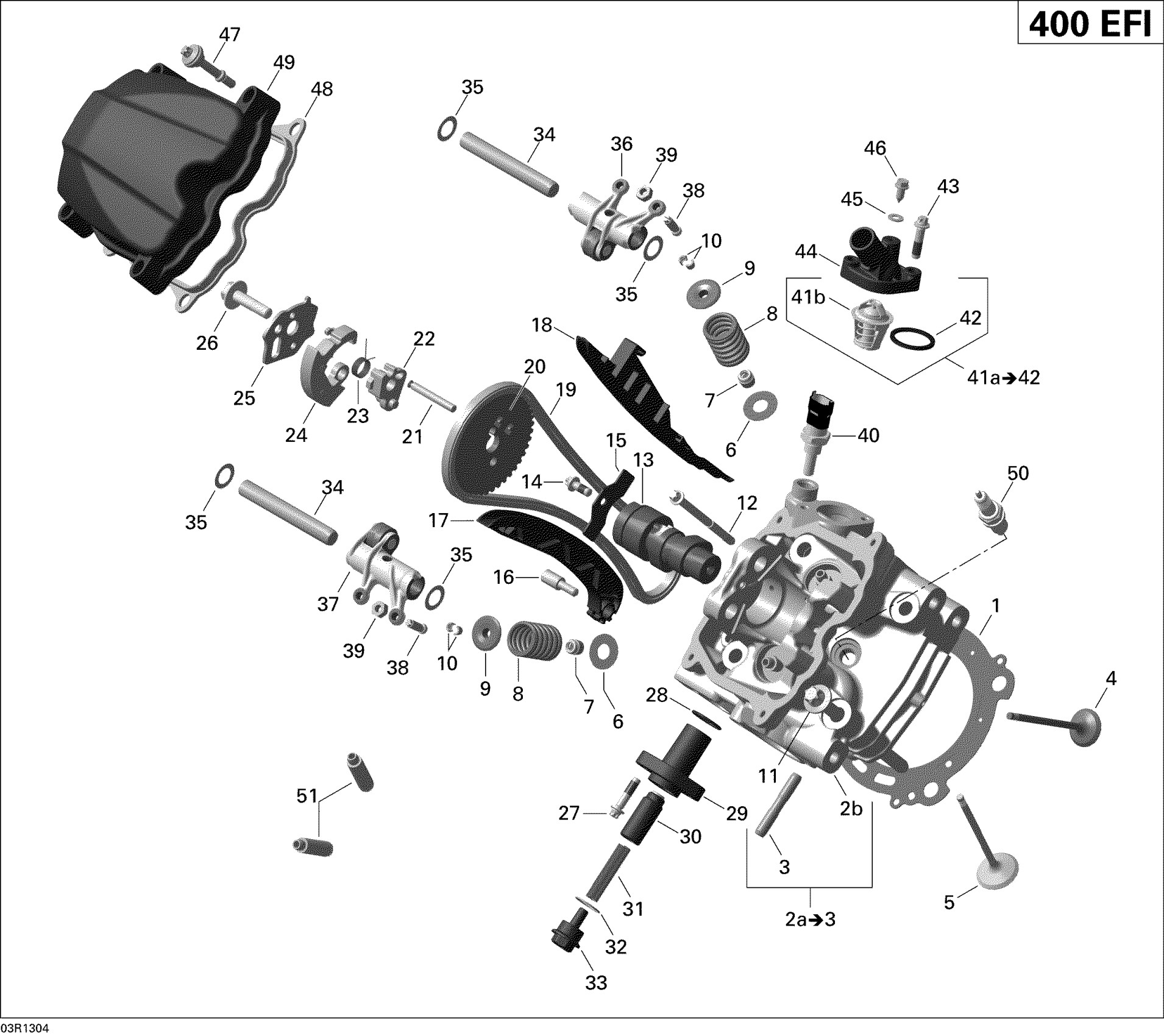

Can-Am Outlander STD, XT, 400 EFI, 2013 01- Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$80.49

2a

Cylinder Head | Includes 2 to 3

420413397

$660.49

2b

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$14.22

4

Intake Valve 31MM

420254359

$35.99

5

Exhaust Valve 27MM

420254368

$69.99

6

Thrust Washer

420627525

$1.79

7

Valve Stem Seal

420230515

$12.18

8

Valve Spring

420239295

$14.28

9

Valve Spring Retainer

420254132

$14.28

10

Cotter Valve

420254120

$4.12

11

Torx Screw M10X140

420641551

$14.28

12

Torx Flange Screw M6 X 85

420641228

$7.41

13

Camshaft

420620011

$418.99

14

Torx Screw M6 X 16

420241529

$2.11

15

Holding Strip

420627743

$18.49

16

Bearing Screw M6

420240943

$5.24

17

Chain Tension Guide

420436015

$29.49

18

Chain Guide

420236584

$7.51

19

Silent Chain

420297063

$65.49

20

Camshaft Sprocket

420254434

$36.99

21

Deko Shaft | 400HO

420620120

$20.49

22

Spacer | 400HO

420231080

$20.49

23

Deko Torsion Spring | 400HO

420238270

$4.97

24

Centrifugal Weight | 400HO

420231070

$18.49

25

Deko Washer | 400HO

420231090

$12.18

26

Hex. Collar Screw M8 X 32 | 400HO

420641820

$17.04

27

Torx Flange Screw M6 X 25

420440234

$3.06

28

O-Ring

420430373

$3.17

29

Chain Tensioner Housing

420236510

$11.63

30

Chain Tensioner Plunger

420236521

$14.83

31

Spring

420238120

$7.41

32

O-Ring

420250890

$3.06

33

Plug Screw

420641150

$7.41

34

Pin #12, Small, M6 X 90

420229712

$15.89

35

Shim

420944382

$4.12

36

Inlet Rocker Arm

420254907

$142.99

37

Exhaust Rocker Arm

420254911

$147.99

38

Adjustment Screw M6 X 0.75

420241337

$5.07

39

Hex Nut M6

420242913

$0.53

40

Temperature Sensor

278002895

$39.99

41a

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

41b

Not Available As Spare Part - Friction Washer

Unavailable

42

Thermostat Gasket

420650300

$8.57

43

Torx Flange Screw M6 X 25

420440234

$3.06

44

Thermostat Cover

420222696

$3.17

45

Gasket Ring

420650255

$4.12

46

Hex. Screw M8 X 56.5

420941627

$8.57

47

Hex Screw M6 X 30

420440568

$8.58

48

Gasket

420630260

$26.49

49

Valve Cover

420610393

$26.49

50

Spark Plug, NGK DCP-R8E

715900637

$6.35

51

Valve Guide

420254374

$27.99
