Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1028

710002227

Unavailable

33

Wire Seal

278000999

$3.19

44

Female Terminal

515175231

$4.39

54

Female Housing, 3 Circuits

515175495

$16.18

62

Female Terminal

278001014

$3.28

69

Female Housing, 3 Circuits

409209600

$35.99

70

Female Housing, 4 Circuits

409209700

$16.18

73

Wire Seal

278001013

$3.28

77

Female Terminal

409010300

$4.39

79

Female Terminal

710000038

$4.55

99

Open Barrel

278000992

$2.21

112

Female Terminal

278000632

$2.09

138

Sealing Cap

293000052

$3.19

227

Male Terminal

409004300

$5.61

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

279

Male Terminal

409011300

$5.93

280

Female Terminal

409012100

$4.55

286

Seal

409012300

$4.54

295

Insulated Sheath

278001008

$3.28

296

Insulated Sheath

278000770

$7.90

297

Insulated Sheath

278001007

$3.58

301

Diode

409012700

$11.12

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

319

Male Terminal

515175568

$9.12

334

Female Housing, 6 Circuits

710000081

$8.79

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

355

Female Housing, 2 Circuits

515175658

$16.18

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

366

Male Housing, 6 Circuits

515175673

$15.49

371

Male Wedge, 6 Circuits

515175678

$5.39

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

401

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

415

Female Terminal

515175806

$0.99

442

Male Housing, 4 Circuits

710000329

$15.36

443

Female Terminal

710000335

$2.29

464

Female Terminal

710000274

$9.59

478

Housing, 6 Circuits

710000888

$17.04

479

Lock

710000889

$4.39

484

Seal

415128501

$1.89

498

Female Housing

710000399

$16.49

499

Wire Seal

710000402

$4.55

506

Female Terminal

710000421

$6.11

524

Not Available As Spare Part - Friction Washer

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Not Available As Spare Part - Friction Washer

Unavailable

579

Wire Seal

710000504

$4.39

641

Male Housing, 2 Circuits

710000667

$8.32

666

Little Fuse, 5 Amperes

710000742

$8.79

667

Little Fuse, 7.5 Amperes

710000743

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

672

Diode

710000748

$11.12

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

690

Female Terminal

710000890

$4.55

700

Male Terminal Housing, 6 Circuits

710000835

$17.04

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

709

Lock

710000848

$3.19

711

Male Housing, 6 Circuits

710000849

$9.69

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

738

Cover

710000897

$16.49

750

Terminal

710000913

$5.61

764

Clip

710000992

$4.29

773

Fuse Cover

710001026

$21.99

831

Female Terminal

710001131

$8.89

886

Housing

710001232

$14.29

888

Seal

710001230

$2.24

889

Seal

710001233

$3.19

890

Terminal

710001229

$3.19

891

Terminal

710001228

$3.28

893

Housing

710001226

$13.49

894

Cap

710001225

$9.19

898

LOCK - Call your local BRP dealership

710001221

$9.39

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

918

Female Terminal

278002261

$7.55

945

Fuse/Relay Decal

710001372

Unavailable

967

Foam

278002172

$5.89

1028

Terminal | Canada/Usa

710001635

$3.19

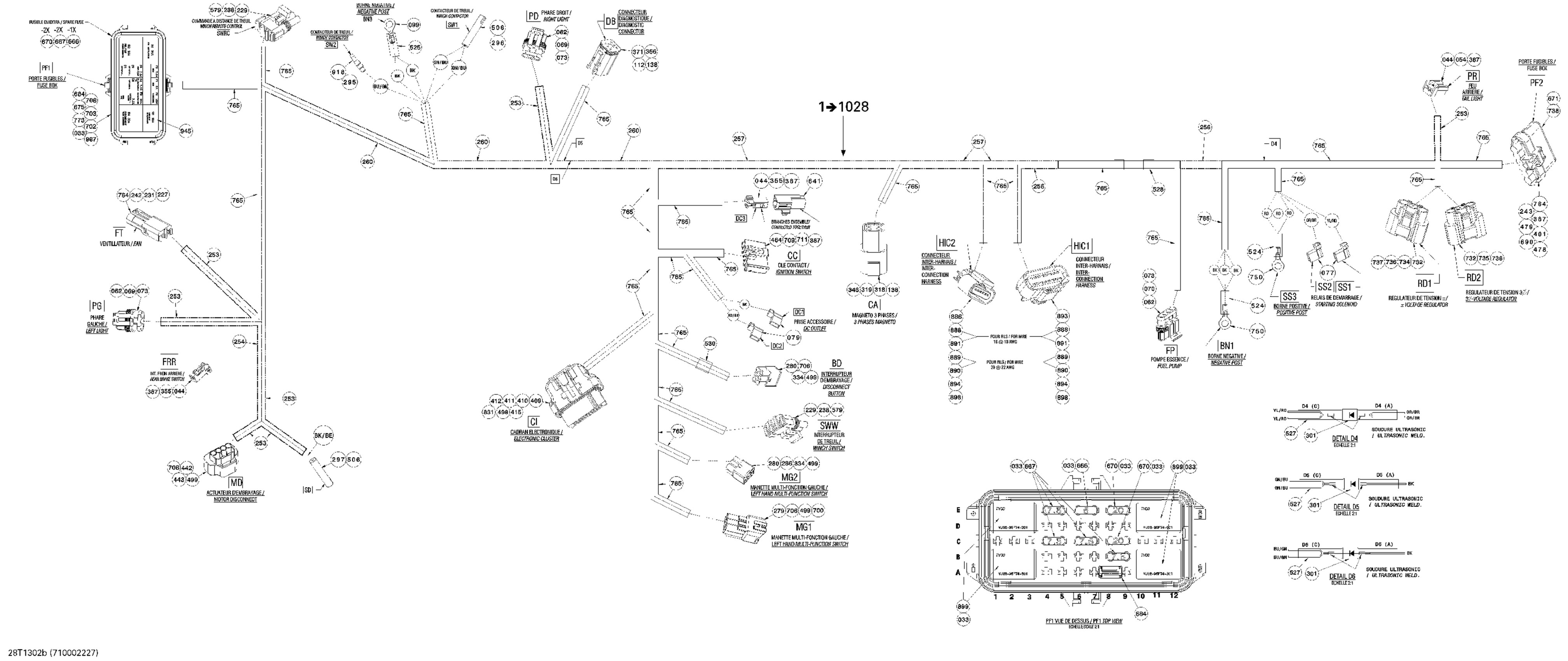

Can-Am Outlander Max STD, XT, 400 EFI, 2013 10- Main Harness International Diagram

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1028

Wire Seal

Female Terminal

Female Housing, 3 Circuits

Female Terminal

Female Housing, 3 Circuits

Female Housing, 4 Circuits

Wire Seal

Female Terminal

Female Terminal

Open Barrel

Female Terminal

Sealing Cap

Male Terminal

Female Terminal

Female Housing, 2 Circuits

Male Housing, 3 Circuits

Wire Seal

Wire Seal

Tubing 6 Mm 3000Mm Long

Was 409901700 Tubing (9 mm)

Was 409901800 Tubing (13 mm)

Tubing 16 Mm 1000Mm Long

Was 409901600 Tubing 19mm

Was 515175319 Tubing 22 mm

Male Terminal

Female Terminal

Seal

Insulated Sheath

Insulated Sheath

Insulated Sheath

Diode

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

Male Terminal

Female Housing, 6 Circuits

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Female Housing, 2 Circuits

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

Male Housing, 6 Circuits

Male Wedge, 6 Circuits

Was 293550004 Dielectric Grease, 150 g

WIRE SEAL - Call your local BRP dealership

Plug

Female Housing, 24 Circuits

Retainer Block

Wire Seal

Female Terminal

Male Housing, 4 Circuits

Female Terminal

Female Terminal

Housing, 6 Circuits

Lock

Seal

Female Housing

Wire Seal

Female Terminal

Not Available As Spare Part - Friction Washer

SHRINK TUBING - Call your local BRP dealership

Not Available As Spare Part - Friction Washer

Wire Seal

Male Housing, 2 Circuits

Little Fuse, 5 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 20 Amperes

Little Fuse, 30 Amperes

Diode

Fuse Box Base Ass´y

Fuse Puller

Female Terminal

Male Terminal Housing, 6 Circuits

Female Terminal

Female Terminal

Cap

Lock

Male Housing, 6 Circuits

Female Terminal

Female Housing, 3 Circuits

Housing, 3 Circuits

Seal
