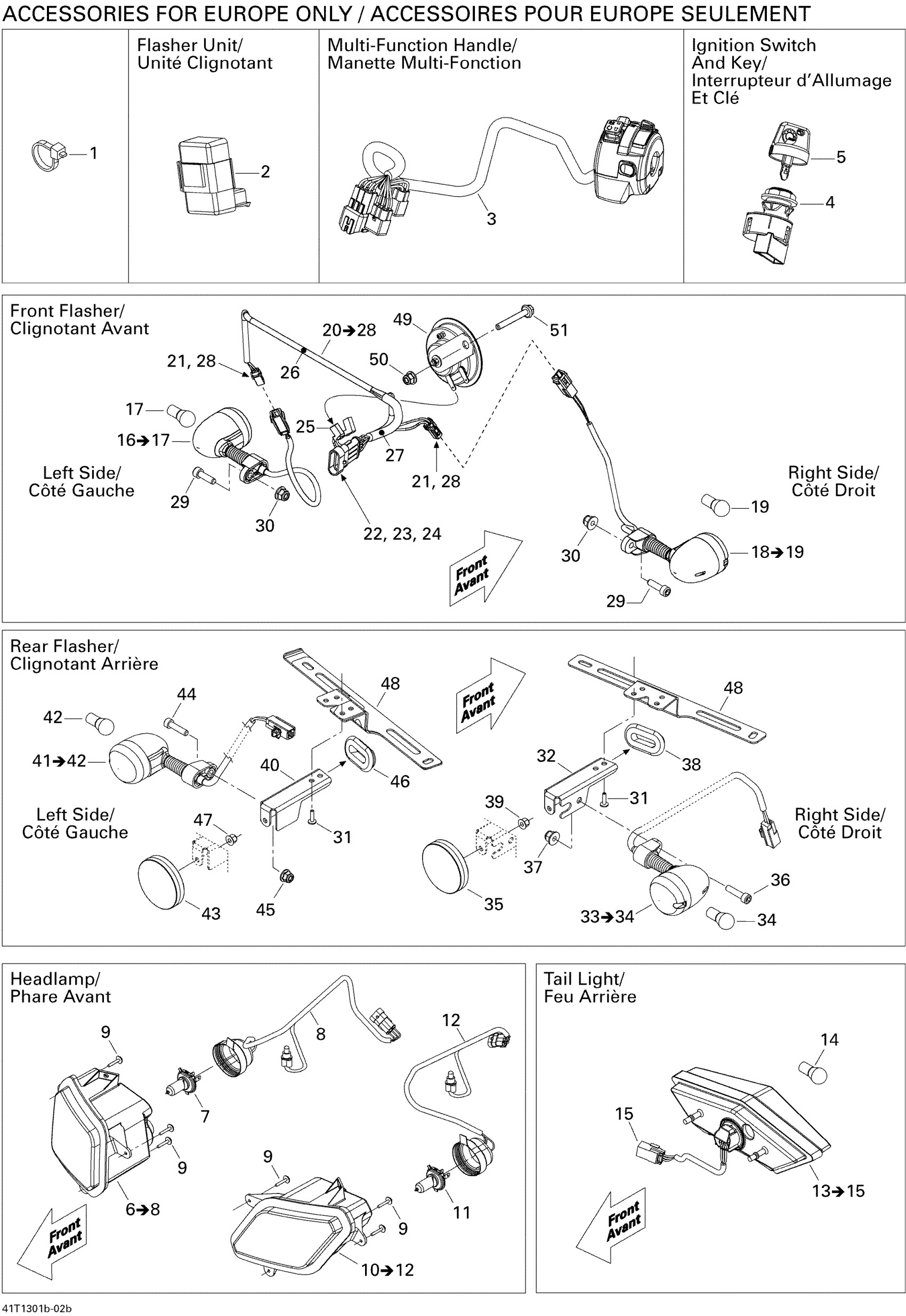

Can-Am Outlander Max STD, XT, 400 EFI, 2013 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$1.04

2

Flasher Unit

710003239

$78.49

3

Multi-Function Handle

710004040

$179.99

4

Ignition Switch | Includes 16 to 17

710002324

$79.49

5

Black, Electronic Key

710000817

$63.49

6

RH Headlamp Ass'y | Includes 11 to 13

710000861

$134.99

7

Bulb, 12V 35/35W

710000871

$34.99

8

Headlamp Harness

710000923

$48.99

9

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

10

LH Headlamp Ass'y | Includes 14 to 16

710000862

$134.99

11

Bulb, 12V 35/35W

710000871

$34.99

12

Headlamp Harness

710000923

$48.99

13

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$56.99

14

Bulb

520000758

$9.10

15

Male Housing, 3 Circuits

515175494

$16.18

16

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

17

Bulb

415129258

$9.10

18

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

19

Bulb

415129258

$9.10

20

FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26

710001495

Unavailable

21

Female Terminal

515175231

$4.39

22

Male Terminal | Europe Models

409012900

$3.28

23

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

24

Wire Seal

278001013

$3.28

25

Female Terminal

409010300

$4.39

26

Tubing 6 Mm 3000Mm Long

219704425

$13.75

27

Was 409901700 Tubing (9 mm)

219704399

$84.99

28

Female Terminal Housing, 2 Circuits

515176296

$5.89

29

Socket Head Screw M6 X 25

205062544

$1.15

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Pop Rivet 3/16"

390402400

$0.35

32

BRACKET - Call your local BRP dealership

710001329

Unavailable

33

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

34

Bulb

415129258

$9.10

35

Red Reflector

705011221

$14.49

36

Socket Head Screw M6 X 20

205062044

$1.26

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Oblong Grommet

705003668

$5.79

39

Hex. Flange Elastic Nut M5

233251414

$1.04

40

BRACKET - Call your local BRP dealership

710001330

Unavailable

41

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

42

Bulb

415129258

$9.10

43

Red Reflector

705011221

$14.49

44

Socket Head Screw M6 X 20

205062044

$1.26

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Oblong Grommet

705003668

$5.79

47

Hex. Flange Elastic Nut M5

233251414

$1.04

48

BRACKET - Call your local BRP dealership

710001241

Unavailable

49

Horn

710004791

$38.99

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

51

Hex. Flange Screw M6 X 45

207664544

$1.46
