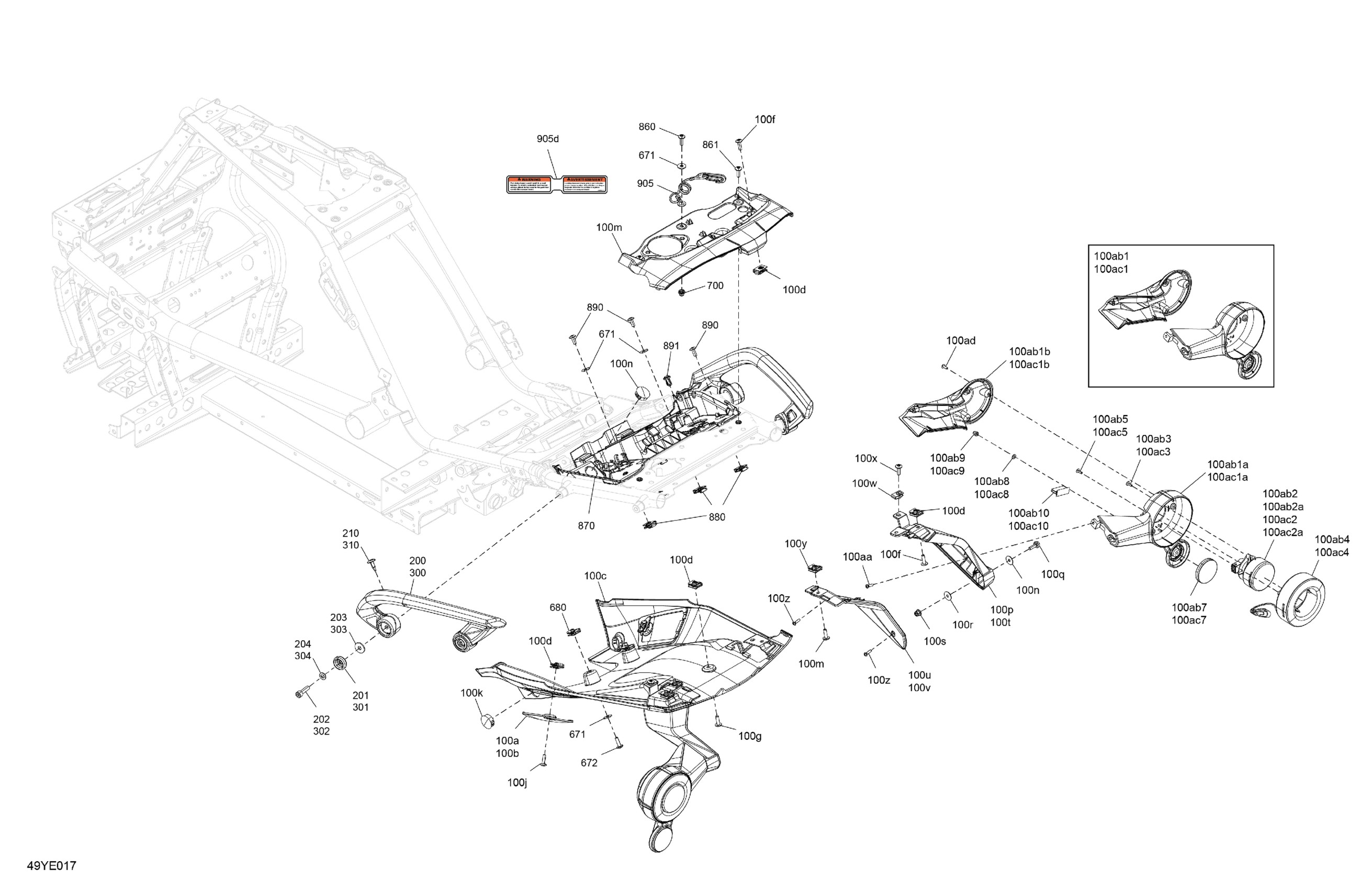

Can-Am Japan - F3 SPORT - E6SC - Monolith Black, 2025 07- Body - Cargo Diagram

#

Description
Price

100a

LH Front Cap

708301513

$16.99

100b

RH Front Cap

708301514

$16.99

100c

Under Tail Cover

708001415

$54.99

100d

Panel Nut M6 X 1.0

250100208

$1.46

100f

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100g

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100h

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100j

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100k

Black, Nylon Cap

414916600

$4.69

100m

Taillight Support

708002814

$26.99

100n

Black, Nylon Cap

414916600

$4.69

100p

LH Flasher Support

708002222

$71.99

100q

Hex. Flange Screw M6 X 20

207662044

$2.00

100r

Flat Washer

224060201

$1.26

100s

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100t

RH Flasher Support

708002223

$71.99

100u

LH Cap Support

708001624

$16.99

100v

RH Cap Support

708001625

$16.99

100w

Panel Nut M6 X 1.0

250100198

$2.11

100x

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100y

Panel Nut M6 X 1.0

250100208

$1.46

100z

Torx-Truss Pt K40 X 16

250000759

$2.11

100aa

Flange Torx Screw K40 X 16

250000287

$2.11

100ab1

LH Housing Ass'y

708002232

$31.99

100ab1a

Not Available As Spare Parts

XXX

Unavailable

100ab1b

Not Available As Spare Parts

XXX

Unavailable

100ab2

Rear Flasher

710004057

$163.99

100ab2a

Bulb 12V 21W | Not Shown

715900043

$16.65

100ab3

Torx Truss PT K40 x 12

250001131

$2.11

100ab4

Rear Light

710004056

$402.49

100ab5

Torx Truss PT K40 x 12

250001131

$2.11

100ab7

Red, Reflector

705016982

$14.49

100ab8

Flat Washer M5

234051670

$2.11

100ab9

Cap Nut M5

250100152

$2.00

100ab10

Neoprene Seal ( 3 Meters per pack )

293250047

Unavailable

100ac1

RH Housing Ass'y

708002233

$31.99

100ac1a

Not Available As Spare Parts

XXX

Unavailable

100ac1b

Not Available As Spare Parts

XXX

Unavailable

100ac2

Rear Flasher

710004057

$163.99

100ac2a

Bulb 12V 21W | Not Shown

715900043

$16.65

100ac3

Torx Truss PT K40 x 12

250001131

$2.11

100ac4

Rear Light

710004056

$402.49

100ac5

Torx Truss PT K40 x 12

250001131

$2.11

100ac7

Red, Reflector

705016982

$14.49

100ac8

Flat Washer M5

234051670

$2.11

100ac9

Cap Nut M5

250100152

$2.00

100ac10

Neoprene Seal ( 3 Meters per pack )

293250047

Unavailable

100ad

Torx Truss PT K40 x 12

250001131

$2.11

200

LH Rear Holding Handle

708003456

$105.99

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300

RH Rear Holding Handle

708003457

$105.99

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

860

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

861

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

905

Lanyard | Included 905 to 905d

708002532

$22.99

905d

Cord Decal

704905127

Unavailable
