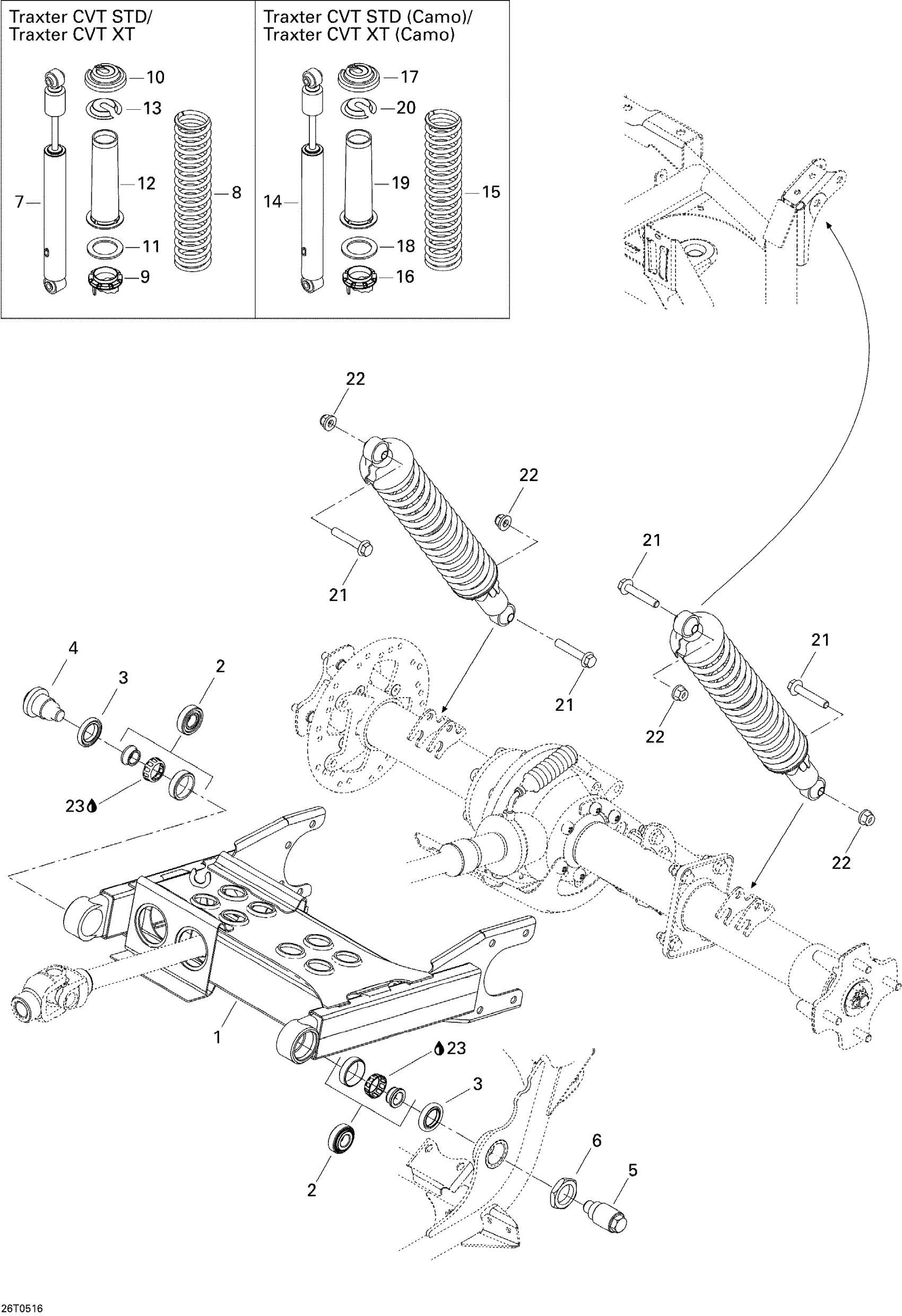

Can-Am Traxter CVT (500, 650, 650 XT), 2005 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM, BLACK - Call your local BRP dealership

706000298

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000169

Unavailable

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

Unavailable

6

HEX. JAM NUT - Call your local BRP dealership

706000006

Unavailable

7

Rear Shock

706000380

Unavailable

8

Rear Spring, Yellow

706000301

Unavailable

9

Adjuster Ring

706002356

$18.49

10

Spring Stopper

706200881

$12.99

11

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

12

PROTECTOR - Call your local BRP dealership

503190436

Unavailable

13

Cap

706200785

$4.69

14

Rear Shock

706000380

Unavailable

15

Rear Spring | Traxter CVT STD & XT (Camo)

706000304

Unavailable

16

Adjuster Ring

706002356

$18.49

17

Spring Stopper

706200881

$12.99

18

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

19

PROTECTOR - Call your local BRP dealership

503190436

Unavailable

20

Cap

706200785

$4.69

21

Hex. Flange Screw M10 X 55

207605544

$3.38

22

Hex. Flange Elastic Nut M10

233201414

$1.58

23

Synthetic Grease, 400 G

293550010

Unavailable
