Description

Price

10

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$50.99

15

Spacer Bushing

705008166

$5.59

20

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$50.99

30

LH Can-Am Red Footrest Support

705008957

$119.99

50

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

55

Allen Plastite Screw #12

250000099

$2.19

60

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

65

Allen Plastite Screw #12

250000099

$2.19

70

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

80

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

110

LH Outer Protective Film

705014176

$9.21

111

RH Outer Protective Film

705014177

$6.50

115

RH Inner Protective Film

705014175

$6.50

116

LH inner Protective Film

705014174

$6.50

150

Tube Support | Includes 150 to 150a

705008950

$22.99

160

LH Slider Outside | Includes 160 to 160b

705007798

$84.99

170

RH Slider Outside | Includes 170 to 170b

705008158

$84.99

200

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

205

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

210

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$50.99

215

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$50.99

219

Pivot Pin | Includes 220 to 220

705013628

$17.82

220

Pivot Pin | Includes 220 to 220

705013628

$17.82

221

Pivot Pin | Includes 220 to 220

705013628

$17.82

225

Allen Plastite Screw #12

250000099

$2.19

260

Seat Stopper

708003866

$4.59

270

Socket Head Screw M8 X 25

250000830

$1.90

271

Socket Head Screw M8 X 25

250000830

$1.90

272

Socket Head Screw M8 X 25

250000830

$1.90

300

Spacer Bushing

705008166

$5.59

305

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

307

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

320

Washer

506152582

$4.55

330

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

340

Socket Head Screw M8 X 25

250000830

$1.90

345

Back Plate

705008553

$24.99

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

410

Spacer

705018575

$12.99

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

480

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

490

Hex. Flange Elastic Nut M6

233261466

$2.00

530

Rubber Bumper

293830005

$8.09

540

Pivot Cap | Includes 540 to 540b

705010203

$27.99

700

LH Fairing Support

705008961

$16.49

705

Black, Flat Washer 6 mm

234061670

$1.25

710

Hex. Flange Screw M6 X 12

210261250

$1.90

720

Panel Nut M6 X 1.0

250100198

$2.11

800

RH Fairing Support

705008962

$16.49

805

Black, Flat Washer 6 mm

234061670

$1.25

810

Hex. Flange Screw M6 X 12

210261250

$1.90

820

Panel Nut M6 X 1.0

250100198

$2.11

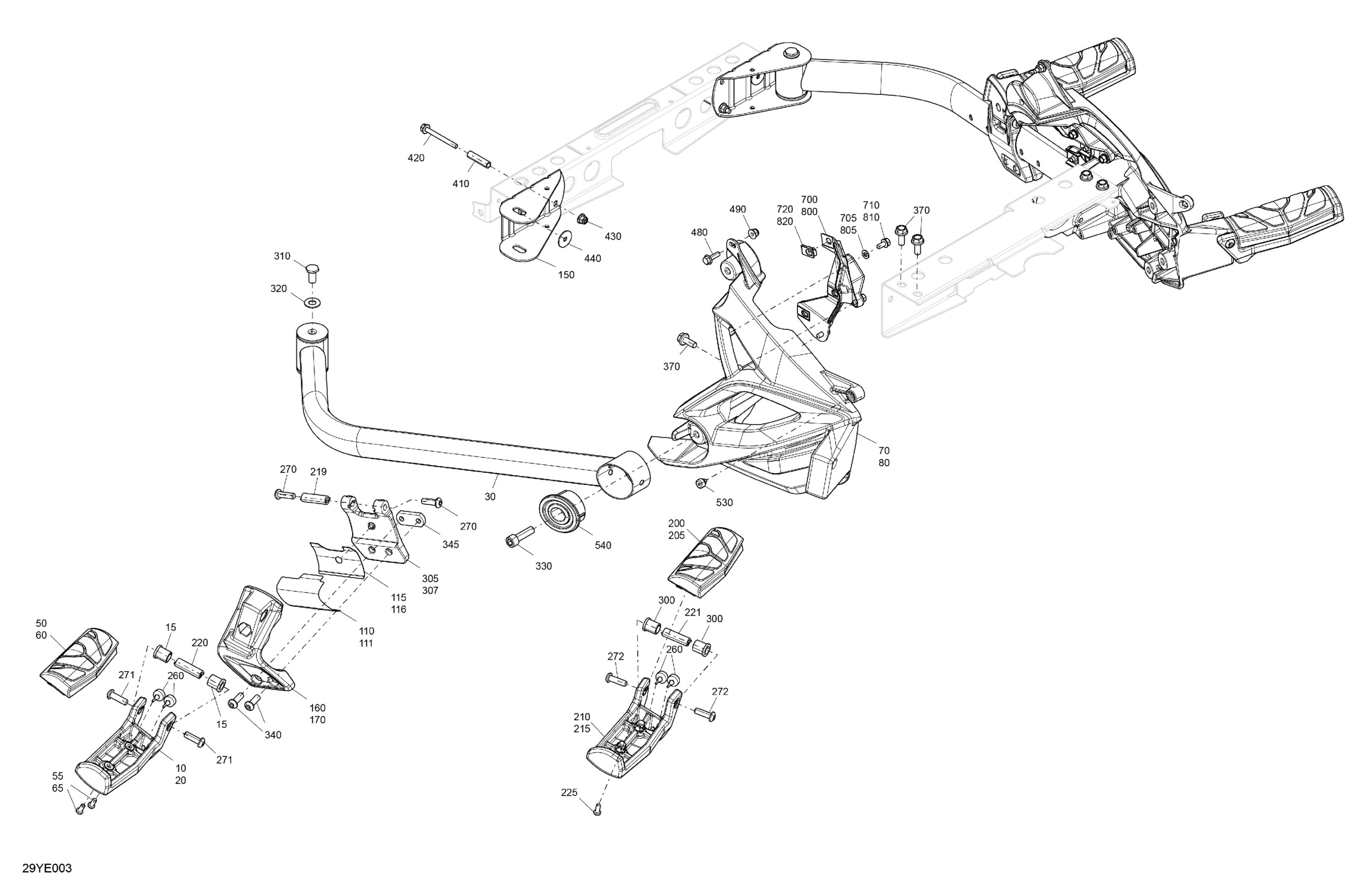

Can-Am Europe - F3 SPORT - E6SB - Monolith Black, 2025 06- Frame - Footrest Diagram

Carbon Black, LH Footpeg | Includes 10 to 10b

Spacer Bushing

Carbon Black, RH Footpeg | Includes 20 to 20b

LH Can-Am Red Footrest Support

Footpeg Rubber Pad | Includes 50 to 50a

Allen Plastite Screw #12

Footpeg Rubber Pad | Includes 50 to 50a

Allen Plastite Screw #12

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

LH Outer Protective Film

RH Outer Protective Film

RH Inner Protective Film

LH inner Protective Film

Tube Support | Includes 150 to 150a

LH Slider Outside | Includes 160 to 160b

RH Slider Outside | Includes 170 to 170b

Footpeg Rubber Pad | Includes 50 to 50a

Footpeg Rubber Pad | Includes 50 to 50a

Carbon Black, LH Footpeg | Includes 10 to 10b

Carbon Black, RH Footpeg | Includes 20 to 20b

Pivot Pin | Includes 220 to 220

Pivot Pin | Includes 220 to 220

Pivot Pin | Includes 220 to 220

Allen Plastite Screw #12

Seat Stopper

Socket Head Screw M8 X 25

Socket Head Screw M8 X 25

Socket Head Screw M8 X 25

Spacer Bushing

Black, LH Slider Clamp | Includes 305 to 305b

Black, RH Slider Clamp | Includes 307 to 307b

Hex. Cap Screw Full Thread M10 X 20

Washer

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

Socket Head Screw M8 X 25

Back Plate

Hex Screw Washer Head M8 X 20

Spacer

Hex. Flange Screw M6 X 60

Hex. Flange Elastic Nut M6

Washer M6

Hex. Flange Screw S.Grip M6 X 20

Hex. Flange Elastic Nut M6

Rubber Bumper

Pivot Cap | Includes 540 to 540b

LH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0

RH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0
