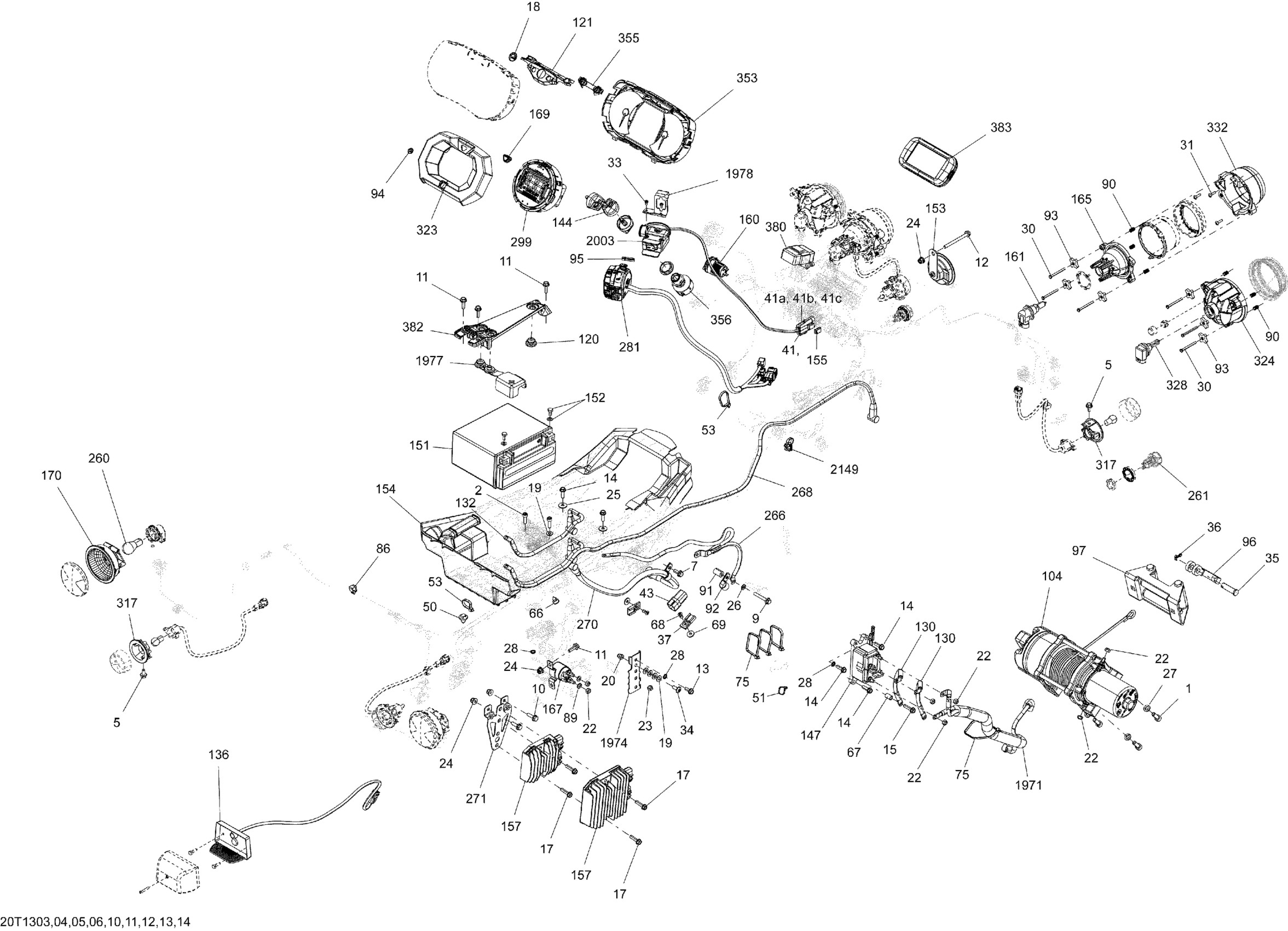

Can-Am Outlander MAX 500EFI STD, DPS & XT, 2013 10- Electrical System Diagram

#

Description
Price

1

Socket Head Screw M8 X 20

205082044

$1.15

2

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

5

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

7

Not Available As Spare Parts

XXX

Unavailable

9

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

10

Hex. Flange Screw M6 X 20

207662044

$2.00

11

Hex. Flange Screw M6 X 20

207662084

$1.69

12

Hex. Flange Screw M6 X 70

207667044

$0.85

13

Hex. Flange Screw M6 X 16

210261650

$1.67

14

Hexagonal Head Screw

210262050

$2.11

15

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

17

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

18

Not Available As Spare Parts

XXX

Unavailable

19

Flat Washer

224061121

$0.53

20

Domed Nut M6

232361493

$2.11

22

Elastic Stop Nut M6

232561414

$0.55

23

Elastic Stop Nut M6

232561414

$0.55

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Stainless Steel Flat Washer

234062670

$2.11

26

Lock Washer Helical M6

234161601

$1.15

27

Lock Washer 8 mm

234181401

$0.92

28

External Serrated Lock Washer 6 mm

234461608

$1.15

30

Hex. Screw K40 X 45

250000718

$2.11

31

Phillips Screw K40 X 16

250000723

$0.98

33

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

34

Torx Screw M6 X 16

250000223

$2.11

35

Clevis Pin

250400021

$13.18

36

Cotter Pin

250400022

$9.69

37

Clip

270000141

$11.49

41

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

41a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

41b

Wire Seal

278000216

$3.19

41c

Clip

710000992

$4.29

43

Housing

710003006

$8.79

50

Mount Dart

293730040

$1.04

51

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

Tie-Rap 180 mm

414115200

$0.11

66

Rubber Bumper

293830005

$8.09

67

Sleeve

293900078

$13.71

68

Pop Rivet 3/16"

390402300

$0.75

69

Washer | DS 650 X

391301600

$0.48

75

Tie Wrap 368 mm

293750008

$1.04

86

Clip

414227300

$1.67

89

Lock Washer Helical M6

234161601

$1.15

90

Spring

517168600

$7.39

91

Spacer

517203200

$16.18

92

Open Clamp

518321570

$7.69

93

Handle

572106600

$10.33

94

BRP Logo13 mm

704904615

$13.49

95

DPS LABEL - Call your local BRP dealership | Europe

704901835

Unavailable

96

Winch Hook Kit

705014949

$24.99

97

Fairlead_Roller Kit

715007699

$83.99

104

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

120

Stopper Rubber

705014429

$5.95

121

Not Available As Spare Parts

XXX

Unavailable

130

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

132

Positive Cable

710004376

$48.99

136

License Plate Light | Europe

710005563

$126.99

144

Black, Electronic Key

710000817

$63.49

144

Grey, Electronic Key

710002183

$63.49

147

Winch Solenoid | XT Models

710001000

$121.99

151

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

152

Battery Bolt Kit

250000282

$7.29

153

Horn

710004791

$38.99

154

Battery Support

710006561

$50.99

155

Clip

710000992

$4.29

157

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

157

Not Available As Spare Parts

XXX

Unavailable

157

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

160

DC Outlet

710001248

$37.99

161

Halogen Bulb

415129249

$41.49

165

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

167

Starter Relay

710007777

$48.49

169

Button

710001473

$13.71

170

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

260

Bulb

520000758

$9.10

261

Day Light | Europe

710001726

$35.99

266

Ground Cable

710004382

$19.99

268

Connector Ass'y

710004375

$32.99

270

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

271

Rectifier Support

710001752

$9.29

281

Switch Kit | XT, XTP, XMR, LTD

703500920

$97.49

281

Multi-Function Handle

710004040

$179.99

281

Handle Kit | STD

703500919

$74.99

299

Calibrated Speedometer Ass'y | Includes 27 to 30

710003103

$499.99

317

Flasher | Europe

710002964

$35.99

323

Trim Ring

710002092

$8.99

324

Low Beam | Includes 54 to 55

710006177

$119.99

328

Bulb 12V 55W

715900141

$41.49

332

RH High Front Housing

710002291

$28.99

332

LH High Front Housing

710002292

$22.49

353

Not Available As Spare Parts

XXX

Unavailable

355

Not Available As Spare Parts

XXX

Unavailable

356

Ignition Switch

710008400

$78.49

380

Flasher Unit

710003239

$78.49

382

Fixation Plate

710002404

$9.39

383

Not Available As Spare Parts

XXX

Unavailable

1971

Winch Cables

710004378

$51.99

1974

BRACKET - Call your local BRP dealership

710002567

Unavailable

1977

Battery Cable Cap

710006729

$7.20

1978

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

2003

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

2149

Tie-Rap Clip

710002896

$4.39
