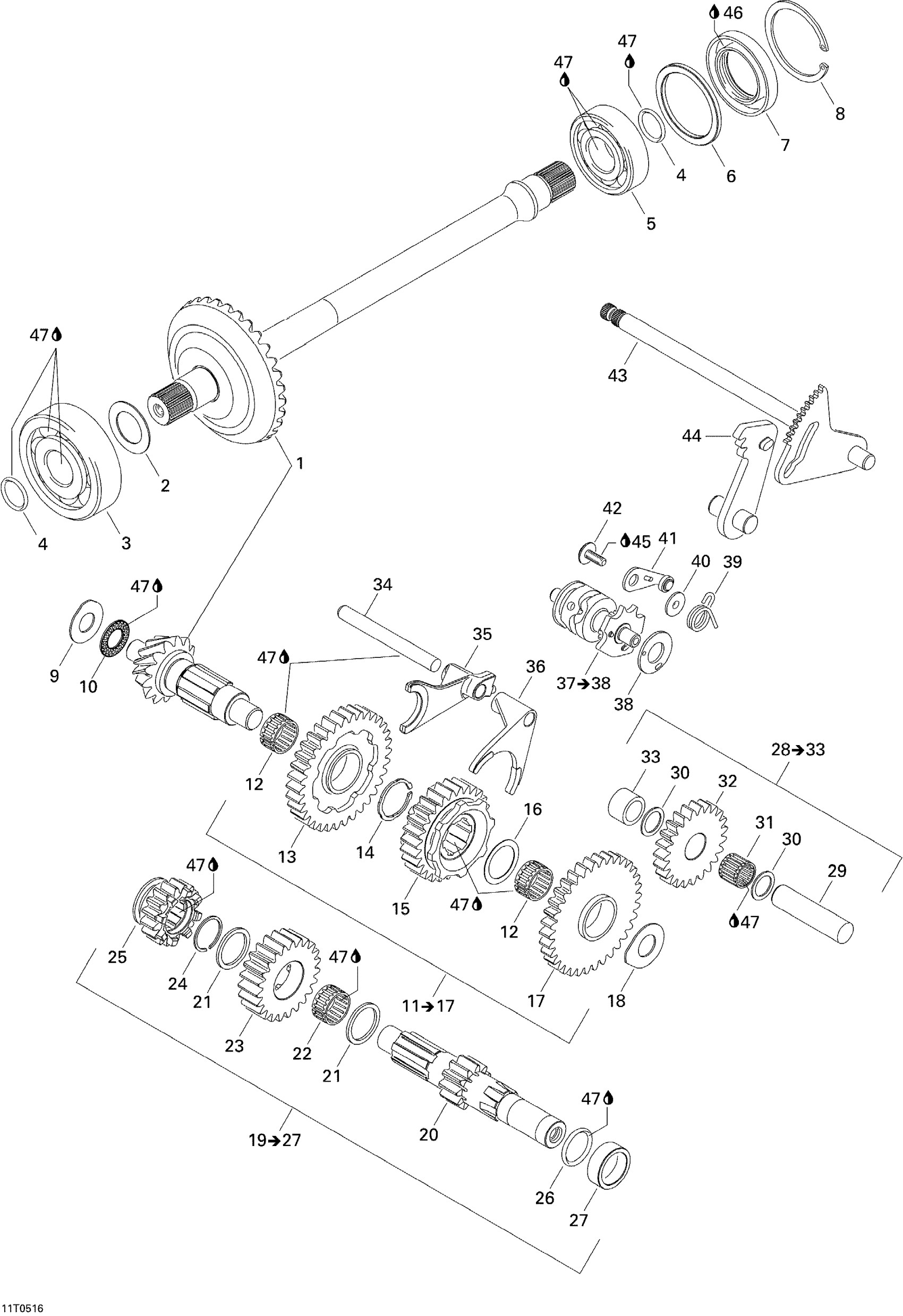

Can-Am Traxter CVT (500, 650, 650 XT), 2005 05- Gear Shift Diagram

#

Description
Price

1

BEVELLED GEAR ASS'Y - Call your local BRP dealership

420296530

Unavailable

2

Washer Thrust Set

420281300

$95.49

3

Ball Bearing 6405

420632280

$98.49

4

O-Ring

420430373

$3.17

5

Ball Bearing

420932822

$30.49

6

DISTANCE RING - Call your local BRP dealership

420247250

Unavailable

7

Oil Seal

420650682

$19.49

8

RETAINING RING - Call your local BRP dealership

420445070

Unavailable

9

Thrust Washer Set, MAG Side

420281306

$61.49

10

Axial Needle Bearing

420632300

$18.49

11

Gearwheel Set | Traxter 500 CVT, Includes 11 To 17

420281282

Unavailable

11

Gearwheel Set Ass'y | Traxter 650 CVT, Includes 11 To 17

420281280

Unavailable

12

Needle Bearing

420632070

$25.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Retaining Ring

420245850

$5.31

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer Set, CVT Side

420281302

$86.99

19

Counter Shaft, 11 Tooth | Traxter 500 CVT, Includes 19 To 27

420220978

Unavailable

19

Counter Shaft, 11 Teeth | Traxter 650 CVT, Includes 19 To 27

420220976

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$25.99

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Circlip

420445302

$4.12

25

Not Available As Spare Part - Friction Washer

Unavailable

26

O-Ring

420630040

$4.44

27

Distance Ring

420247110

Unavailable

28

Idle Gear Shaft Ass'y | Includes 28 To 33

420229605

Unavailable

29

Needle Pin

420229600

$37.99

30

THRUST WASHER - Call your local BRP dealership

420944190

Unavailable

31

Needle Cage

420432034

$35.99

32

GEAR, 23 TEETH - Call your local BRP dealership

420635310

Unavailable

33

DISTANCE SLEEVE - Call your local BRP dealership

420247120

Unavailable

34

Pin

420229540

$20.99

35

SHIFT FORK - Call your local BRP dealership

420257180

Unavailable

36

Shift Fork

420257230

Unavailable

37

SHIFT DRUM ASS'Y - Call your local BRP dealership | Includes 37 To 38

420257175

Unavailable

38

ISOLATING WASHER - Call your local BRP dealership

420227567

Unavailable

39

Index Spring

420239561

$12.18

40

BUSHING - Call your local BRP dealership

420227710

Unavailable

41

INDEX LEVER KIT - Call your local BRP dealership

703500189

Unavailable

42

Torx Screw M6 X 16

420241529

$2.11

43

SHIFT SHAFT ASS'Y - Call your local BRP dealership

420220806

Unavailable

44

LOCK LEVER - Call your local BRP dealership | Traxter 500 CVT

420257158

Unavailable

44

LOCK LEVER - Call your local BRP dealership | Traxter 650 CVT

420257156

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

Grease, Super Lube

293550030

$28.99

47

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
