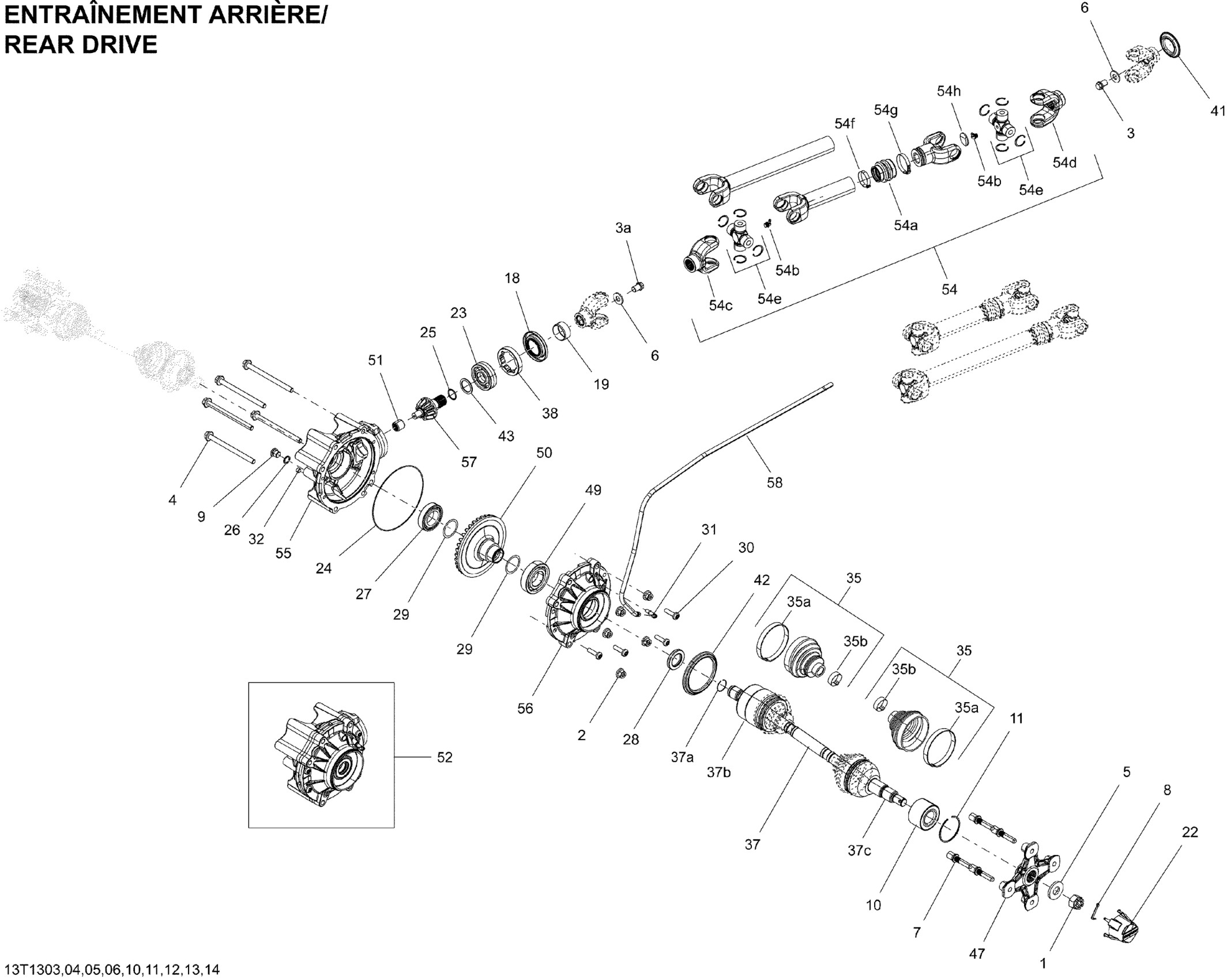

Can-Am Outlander MAX 500EFI STD, DPS & XT, 2013 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

$7.98

2

Hex. Flange Elastic Nut M10

233201436

$2.11

3

Hex Flange Screw M12 X 16

250001039

$2.11

3a

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

4

Hex. Flange Screw M10 X 135

250001041

$5.59

5

Conical Spring Washer M18

250200171

$7.65

6

Flat Washer M12

250200102

$2.11

7

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

8

Cotter Pin

250400036

$2.11

9

Fill Level Plug | 4X4

705500504

$10.01

10

Ball Bearing

293350150

$52.99

11

Circlip

293370019

$4.68

18

Oil Seal | 4X4

705401481

$19.49

19

Wear Ring | 4X4

705400036

$26.49

22

Wheel Cap

705400928

$10.49

23

Ball Bearing | 4X4

705500260

$31.99

24

Seal | 4X4

705500265

$18.76

25

O-Ring | 4X4

705500267

$7.65

26

Copper Washer | 4X4

705500506

$0.45

27

Ball Bearing

705502737

$48.49

28

Oil Seal

705501996

$21.99

29

Differential Shim 0.02 mm

705502060

$13.76

30

Screw | 4X4

705401601

$10.49

31

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

32

Drain Plug | 4X4

705500894

$11.49

35

Boot Kit

705501864

$42.49

35a

Oetiker Clamp, 82.1 mm

715900241

$10.33

35b

Oetiker Clamp, 27.3 mm

715900242

$10.33

37

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

37

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

37a

Circlip

705501781

$6.50

37b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

37c

CV Joint

705501776

$259.49

38

Nut

705502059

$32.99

41

Protector

705501123

$7.55

42

Wear Ring

705501124

$7.90

43

Pinion Gear Shim 1.67 mm

705502061

$18.99

43

Pinion Gear Shim

705501162

$16.49

47

Wheel Hub Ass'y

705501716

$105.99

49

Ball Bearing

705502738

$59.49

50

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

51

Needle Bearing

705501408

$69.99

52

Rear Differential Ass'y | Includes 12 to 31

705501419

Unavailable

54

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$412.99

54a

Rubber Boot

715900118

$14.30

54b

Grease Fitting

715900184

$5.24

54c

Fixe Yoke

715900101

$29.49

54d

Fixe Yoke

715900101

$29.49

54e

Universal Joint

715900326

$68.99

54f

Oetiker Gear Clamp 36.1MM

509000045

$8.29

54g

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

54h

COVER - Call your local BRP dealership

715900187

Unavailable

55

PINION REAR COVER - Call your local BRP dealership

705501420

Unavailable

56

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

57

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

58

Polyurethane Hose 10000Mm Long

219704410

$56.99
