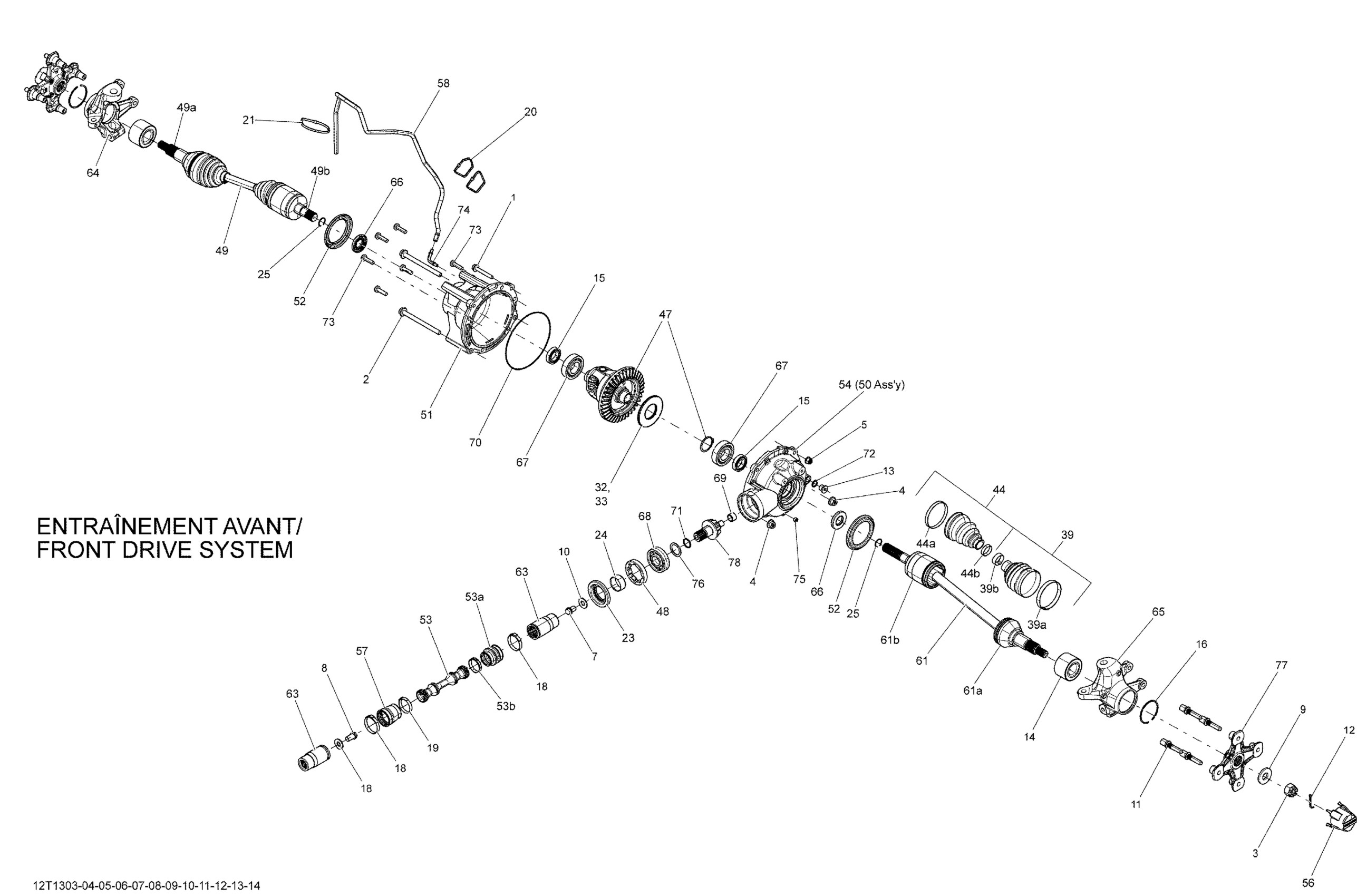

Can-Am Outlander MAX 500EFI STD, DPS & XT, 2013 07- Drive System, Front Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 55

207685544

$5.39

2

Hex. Flange Screw M10 X 125

230602546

$7.41

3

Hex. Flange Castellated Nut M18

232291413

$7.98

4

Hex. Flange Elastic Nut M10

233201436

$2.11

5

Hex. Flange Elastic Nut M8

233281414

$1.47

7

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

8

Hex Flange Screw M12 X 20

250001042

$1.90

9

Conical Spring Washer M18

250200171

$7.65

10

Flat Washer M12

250200102

$2.11

11

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

12

Cotter Pin

250400036

$2.11

13

Fill Level Plug | 4X4

705500504

$10.01

14

Ball Bearing

293350150

$52.99

15

Ball Bearing | 4X4

293350044

$31.99

16

Circlip

293370019

$4.68

18

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

19

Oetiker Gear Clamp

293650199

$9.69

20

Tie-Rap 180 mm

414115200

$0.11

21

Tie Wrap 368 mm

293750008

$1.04

23

Oil Seal | 4X4

705401481

$19.49

24

Wear Ring | 4X4

705400036

$26.49

25

Circlip Joint | Not shown

705401349

$6.50

32

Shim | 4X4

705401604

$57.99

33

Shim | 4X4

705401604

$57.99

39

Boot Kit, Wheel Side

705401345

$42.49

39a

Oetiker Clamp

715900282

$5.29

39b

Oetiker Clamp, Small

715900283

$5.29

44

Boot Kit, Differential Side

705401346

$42.49

44a

Oetiker Clamp, Large

715900284

$5.29

44b

Oetiker Clamp, Small

715900261

$5.29

47

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

47

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

48

Nut | 4X4

705401603

$35.99

49

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

49a

CV Joint

705401344

$259.49

49b

LH Plunging Joint

705401350

$259.49

50

Front Differential | Includes 8 to 31

703500907

$1,579.99

50

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

51

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

52

Wear Sleeve

705400780

$7.90

53

Propeller Shaft | Includes 1 to 2

705400913

$211.99

53a

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

53b

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

54

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

56

Wheel Cap

705400928

$10.49

57

Rubber Boot

705401093

$5.00

58

Polyurethane Hose 10000Mm Long

219704410

$56.99

61

RH Front - Premium CV Axle

705401116

$243.99

61a

CV Joint

705401344

$259.49

61b

RH Plunging Joint

705401348

$259.49

63

Front Bushing Shaft Kit | 4X4

703500678

$114.99

64

LH Knuckle

705403307

$179.99

65

RH Knuckle

705403308

$179.99

66

Gasket | 4X4

705401618

$18.49

67

Ball Bearing | 4X4

705401606

$51.99

68

Ball Bearing | 4X4

705500260

$31.99

69

Needle Bearing | 4X4

705500261

$19.99

70

Seal | 4X4

705500265

$18.76

71

O-Ring | 4X4

705500267

$7.65

72

Copper Washer | 4X4

705500506

$0.45

73

Screw | 4X4

705401601

$10.49

74

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

75

Drain Plug | 4X4

705500894

$11.49

76

Pinion Gear Shim 1.67 mm

705502061

$18.99

76

Pinion Gear Shim

705501162

$16.49

77

Wheel Hub Ass'y

705501716

$105.99

78

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable
