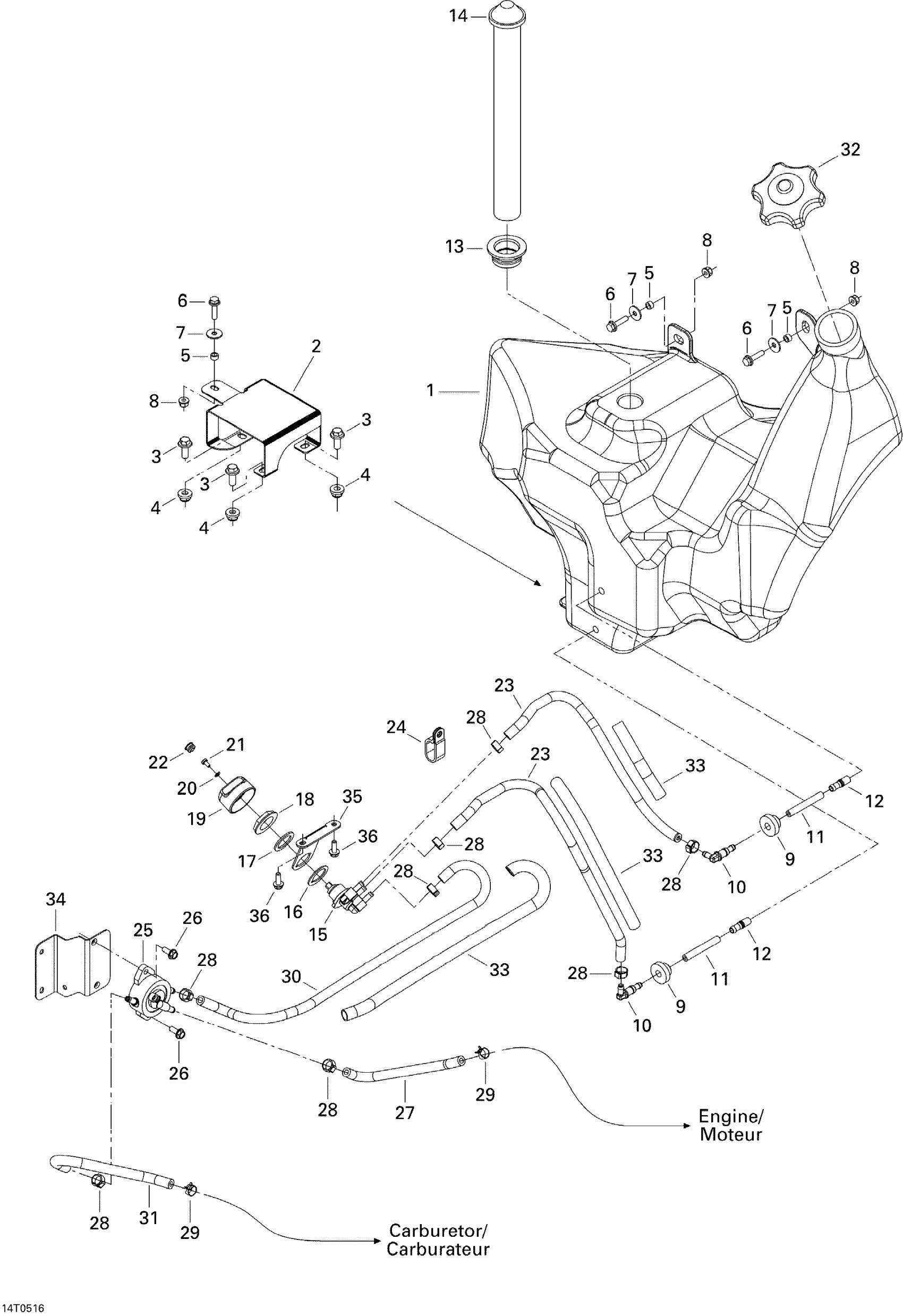

Can-Am Traxter CVT (500, 650, 650 XT), 2005 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000035

Unavailable

2

Fuel Tank Support, Black

709000039

Unavailable

3

Hex. Flange Screw M8 X 20

207682044

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Bushing | DS 650 X

293900104

$5.50

6

Hex. Flange Screw M6 X 25

207662544

$0.64

7

Flat Washer

224061201

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Grommet

570045500

$6.69

10

Elbow Male Connector

414580600

$4.23

11

Polyurethane Hose 10000Mm Long

219704410

$56.99

12

Fuel Filter

414865700

$10.99

13

Grommet

293720058

$11.99

14

FUEL GAUGE - Call your local BRP dealership

709000078

Unavailable

15

Fuel Valve

275500098

$43.99

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Washer

250200015

Unavailable

18

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

19

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

20

Flat Washer 4 mm

234040600

$0.55

21

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

22

Black, Cap

275500241

$3.49

23

Hose

219704549

$50.99

24

Open Clamp

709000057

$5.39

25

Gas Pump

709000103

Unavailable

26

Hex. Flange Screw M6 X 16

210261650

$1.67

27

FORMED HOSE - Call your local BRP dealership

709000047

Unavailable

28

Oetiker Clamp

293650042

$3.09

29

Spring Clamp

414415200

$0.88

30

Formed Hose

709000068

Unavailable

31

GAS HOSE - Call your local BRP dealership

709000104

Unavailable

32

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

33

Was 409901800 Tubing (13 mm)

219704400

$14.49

34

Support Pump, Black

709000111

Unavailable

35

Valve Support, Black

709000070

Unavailable

36

Hex. Flange Screw M6 X 16

210261650

$1.67
