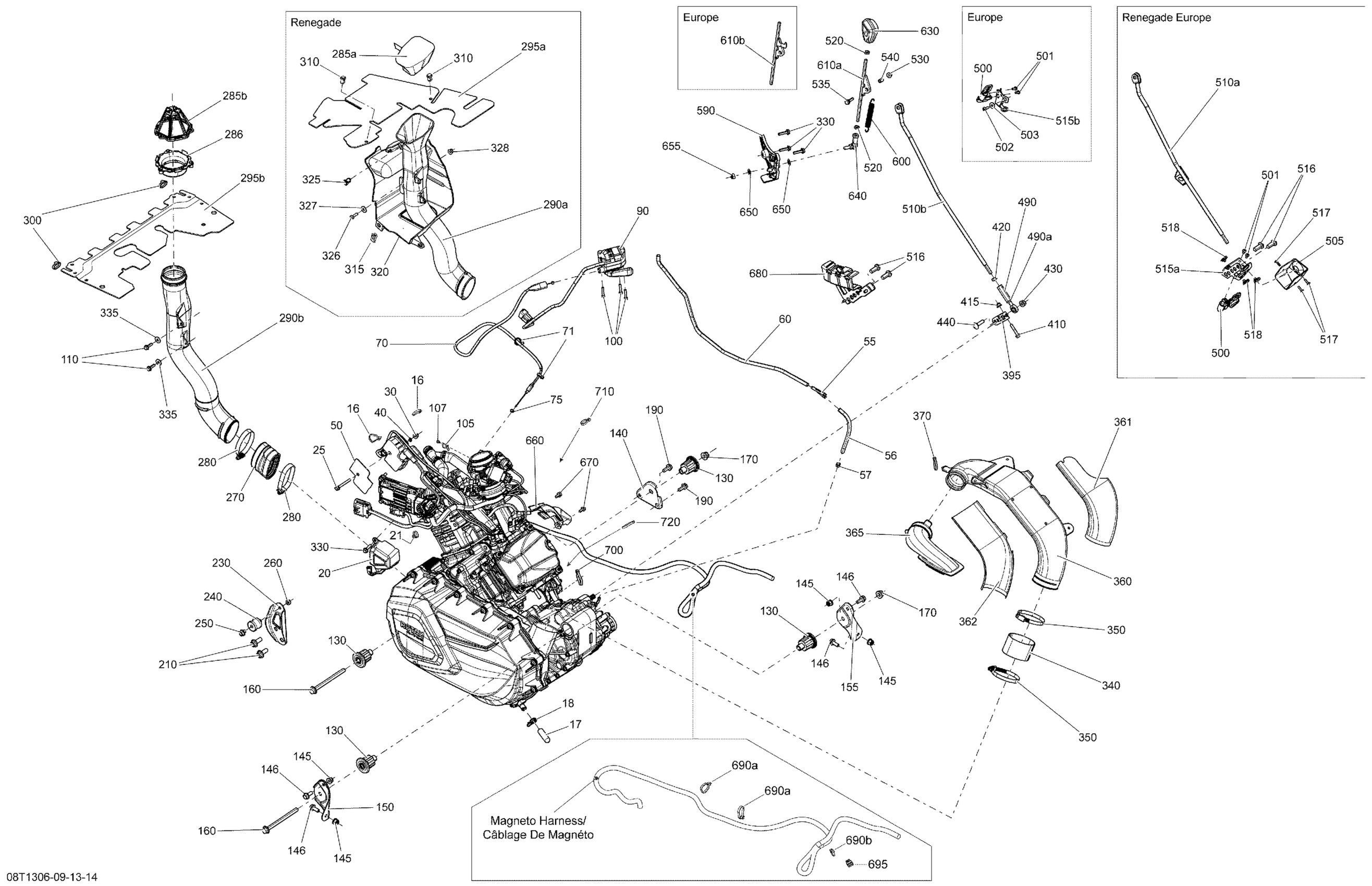

Can-Am Outlander MAX 1000EFI, DPS, XT & XT-P, 2013 01- Engine And Engine Support Diagram

#

Description
Price

16

Tie-Rap 180 mm

414115200

$0.11

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

20

Cover

707000945

$6.67

21

Tie Wrap 142 mm

293750002

$1.25

25

Hex. Flange Screw M6 X 50

207665044

$4.12

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

External Serrated Lock Washer 6 mm

234461608

$1.15

50

Insulator Pad

710000073

$11.12

55

Y-Fitting

293710059

$9.69

56

Polyurethane Hose 10000Mm Long

219704410

$56.99

57

Clamp, Oetiker

293650195

$1.09

60

Polyurethane Hose 10000Mm Long

219704410

$56.99

70

Throttle Cable

707000955

$13.24

71

Tie-Rap 180 mm

414115200

$0.11

75

Cable Guide

707000434

$11.60

90

Throttle Handle | 4X4

707000595

$214.99

100

Socket Head Screw M5 X 25

205052588

$1.90

105

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

107

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$10.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Bracket

707001191

$10.99

155

RH Rear Engine Bracket

707001192

$10.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Support

707003326

$13.99

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

285a

Not Available As Spare Parts

XXX

Unavailable

285b

Filter CVT

707001130

Unavailable

286

CVT Filter Base

707001171

$8.59

290a

Not Available As Spare Parts

XXX

Unavailable

290b

CVT Air Inlet

707002067

$53.99

295a

Not Available As Spare Parts

XXX

Unavailable

295b

Upper Water Deflector

707001124

$22.49

300

Tie-Rap 180 mm

414115200

$0.11

310

Not Available As Spare Parts

XXX

Unavailable

315

Not Available As Spare Parts

XXX

Unavailable

320

Not Available As Spare Parts

XXX

Unavailable

325

Not Available As Spare Parts

XXX

Unavailable

326

Not Available As Spare Parts

XXX

Unavailable

327

Not Available As Spare Parts

XXX

Unavailable

328

Not Available As Spare Parts

XXX

Unavailable

330

Hex. Flange Screw M6 X 25

207562544

$1.69

335

Flat Washer M6, Stainless

234062600

$0.77

340

Adaptor

707000789

$12.12

350

Norma Gear Clamp

293650118

$13.16

360

AIR OUTLET - Call your local BRP dealership

706600016

Unavailable

361

HEAT SHIELD - Call your local BRP dealership

707001217

Unavailable

362

HEAT SHIELD - Call your local BRP dealership

707001218

Unavailable

365

AIR OUTLET - Call your local BRP dealership

706600018

Unavailable

370

Tie-Rap 180 mm

414115200

$0.11

395

Lever

707000911

$20.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Carriage Bolt M8 X 30

207783044

$2.11

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

490a

Hex. Jam Nut M8

232180600

$0.67

500

Padlock with Key

707000666

$25.99

501

Socket Head Screw M5 X 10

205951046

$2.43

502

Torx Screw K50 X 16

250000720

$1.69

503

Washer | DS 650 X

391301600

$0.48

505

Not Available As Spare Parts

XXX

Unavailable

510a

Not Available As Spare Parts

XXX

Unavailable

510b

Shifter Rod

707002068

$33.99

515a

Not Available As Spare Parts

XXX

Unavailable

515b

Fixing Plate | Europe

707001042

$39.99

516

Screw Socket M10 X 25 | Europe

205402556

$3.91

517

Not Available As Spare Parts

XXX

Unavailable

518

Not Available As Spare Part - Friction Washer

Unavailable

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

535

Hex. Flange Screw M6 X 25

207662544

$0.64

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610a

Shift Arm | Except Europe

707000840

$16.87

610b

Shift Arm | Europe

707001003

$18.55

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

660

Cover OPS

707000410

$13.24

670

Hex. Flange Screw M6 X 12

210261250

$1.90

680

Upper Cable Support

707001955

$10.49

690a

Tie-Rap 180 mm

414115200

$0.11

690b

Not Available As Spare Parts

XXX

Unavailable

695

Not Available As Spare Parts

XXX

Unavailable

700

Tie-Rap 180 mm

414115200

$0.11

710

Tie-Rap 180 mm

414115200

$0.11

720

Tie Wrap 142 mm

293750002

$1.25
