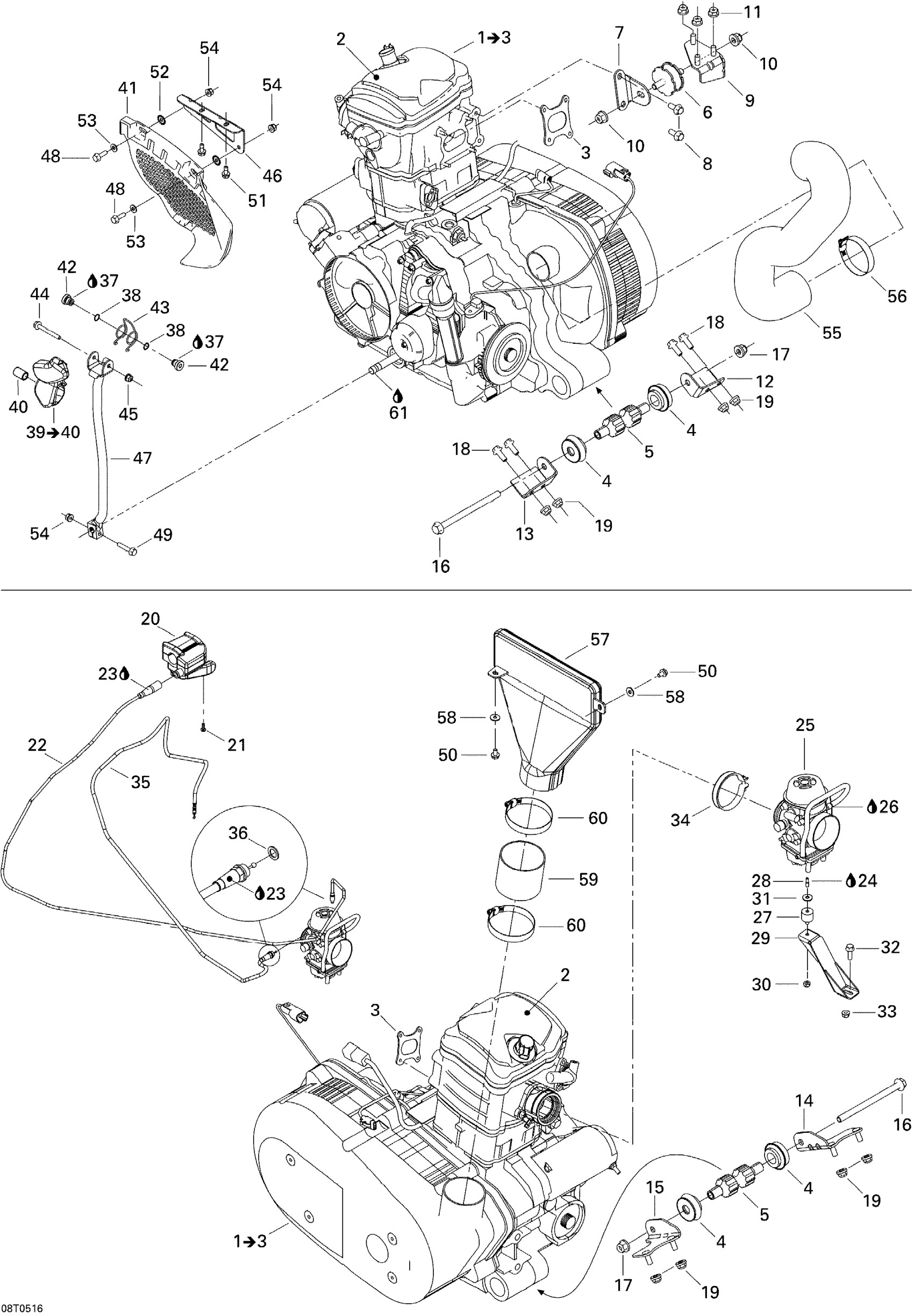

Can-Am Traxter CVT (500, 650, 650 XT), 2005 01- Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 Stroke Engine «610» | Traxter 650 CVT, Includes 1 To 3

707000358

Unavailable

1

Rotax 4 Stroke Engine"514" | Traxter 500 CVT, Includes 1 To 3

707000359

Unavailable

2

Valve Cover

420660201

Unavailable

3

GASKET - Call your local BRP dealership

420950680

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

$99.99

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

Unavailable

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

$5.29

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Hex. Flange Screw M8 X 20

207682044

$1.15

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

THROTTLE HANDLE - Call your local BRP dealership | 2X4

707000370

Unavailable

21

Socket Head Screw M5 X 25

205052588

$1.90

22

THROTTLE CABLE - Call your local BRP dealership

707000313

Unavailable

23

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

CARBURETOR BSR42-7 - Call your local BRP dealership | Traxter 500 CVT

707200181

Unavailable

25

CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT

707200186

Unavailable

26

Glue Tube, Loctite 454, 20 G

413708300

$60.99

27

Anti-vibration Mount

707000248

Unavailable

28

THREADED INSERT - Call your local BRP dealership

707000250

Unavailable

29

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

30

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

31

Washer | DS 650 X

391301600

$0.48

32

Hex. Flange Screw M6 X 20

207662044

$2.00

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Gemi Clamp

293650157

Unavailable

35

CHOKE CABLE - Call your local BRP dealership

707000314

Unavailable

36

O-RING - Call your local BRP dealership

293300075

Unavailable

37

Synthetic Grease, 400 G

293550010

Unavailable

38

O-RING - Call your local BRP dealership

293300081

Unavailable

39

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

40

Bushing

707000103

Unavailable

41

Transmission Guide

707000139

Unavailable

42

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

43

LEVER SPRING - Call your local BRP dealership

705500283

Unavailable

44

Hex. Flange Screw M6 X 50

207665044

$4.12

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Guide Support, Black

707000297

Unavailable

47

LOWER LEVER - Call your local BRP dealership

707000169

Unavailable

48

Hex. Flange Screw M6 X 25

207662544

$0.64

49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

50

Hex. Forming Screw M6 X 10

210261050

$1.69

51

Hex. Flange Screw M6 X 16

210261650

$1.67

52

Lock Washer Serrated M6

250200041

$1.15

53

Flat Washer

250200082

$0.42

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

AIR INTAKE - Call your local BRP dealership

707000152

Unavailable

56

Tridon Clamp

293650023

$13.49

57

Exhaust

707000153

Unavailable

58

Flat Washer

224061201

$1.37

59

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

60

Tridon Clamp

293650064

$8.29

61

Loctite 271, 10 ml

293800005

$26.99
